ZY Hot air rotary dryer
he hot air rotary dryer has the characteristics of beautiful appearance, multiple functions, small size, low energy consumption, large output, and even baking, It also has functions such as automatic temperature control and over-temperature protection. Suitable for baking: pizza, bread, cakes, biscuits, French sticks and other foods.Scope of application: hotels, guesthouses, bars, supermarkets, bakeries, schools, military units, factories, etc.
Model: ZY-100D
Rated power: 380v 3phases 50hz
Power: 48kw
Driving power: 2.5kw
Drying temperature: RT-400℃
Main applications
Hot air rotary oven can be used to dry and bake various breads, cakes, meat products and various pastries and pasta. It is widely used in canteens of food factories, bakeries, institutions, units and departments. The hot air rotary furnace is also suitable for food baking in individual food processing factories, cake houses and bakeries.
Working principle

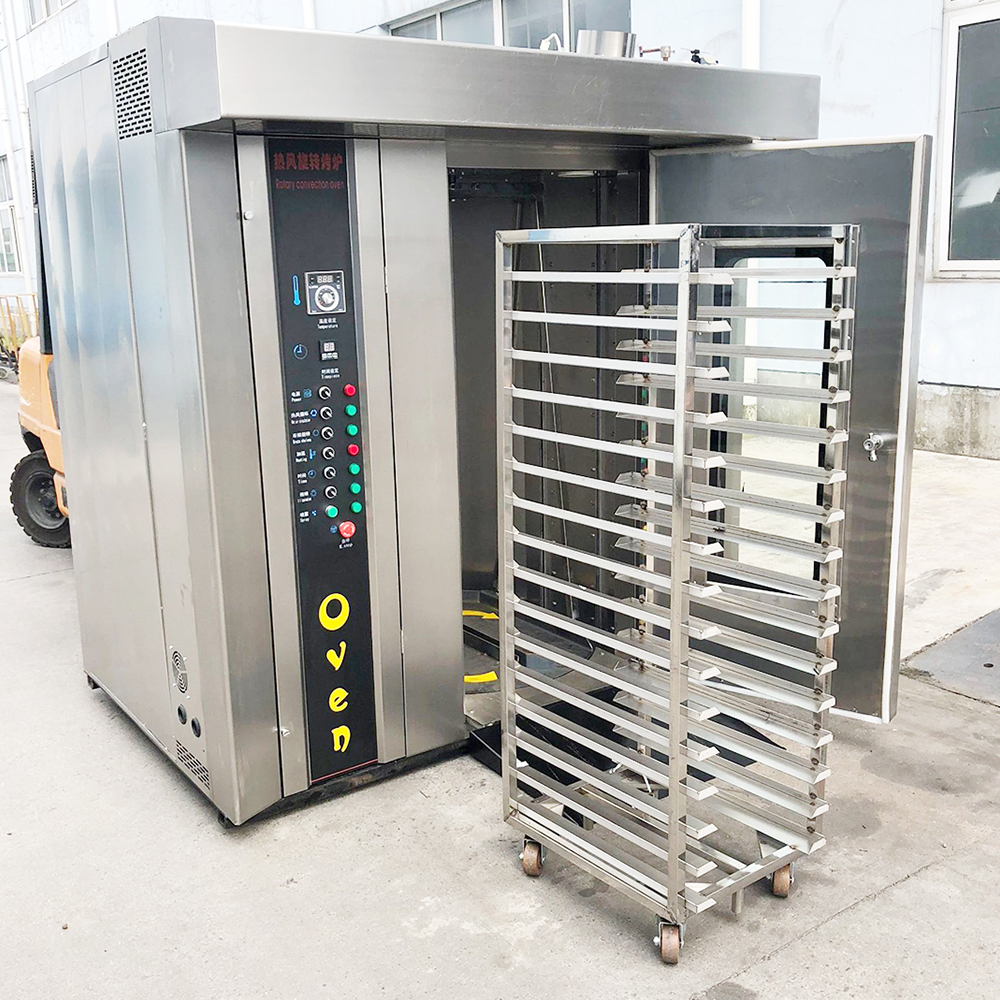

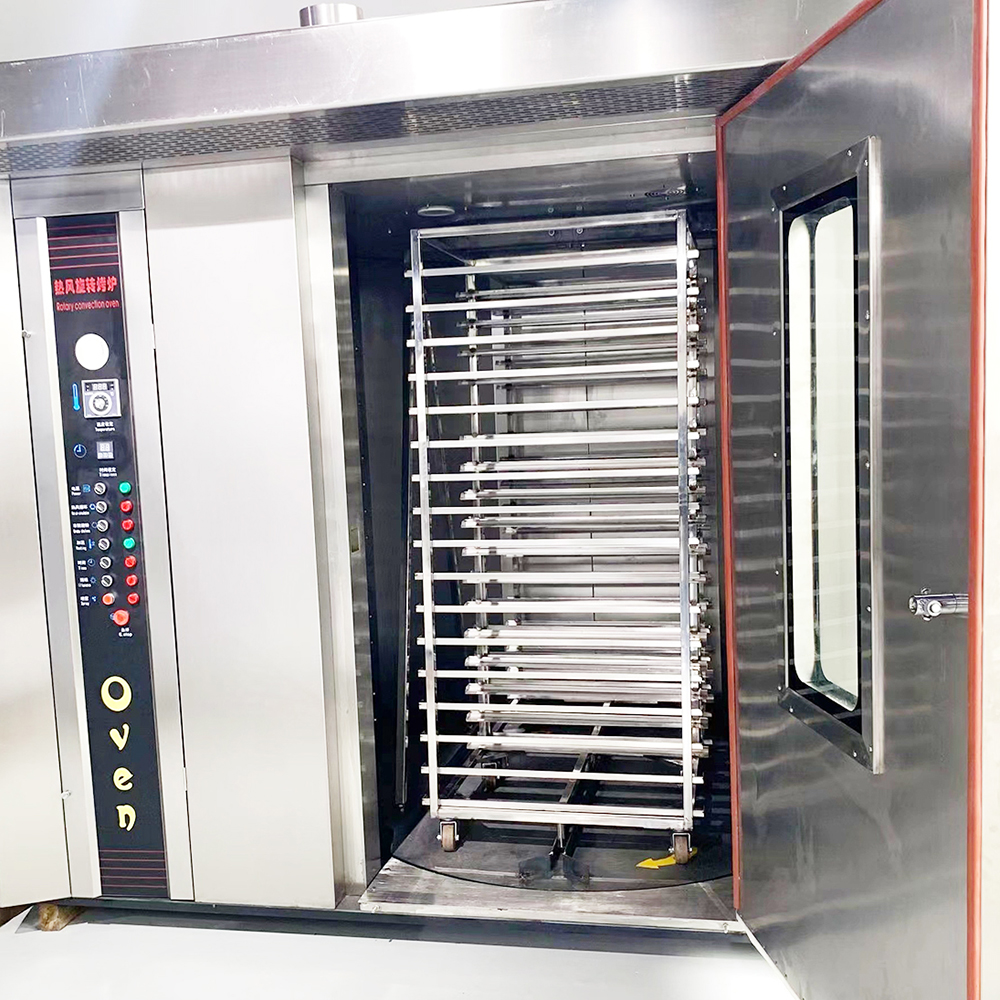

Electricity is used as the heat source. There is rotating wheel at oven bottom, when trolley is pushed in the oven, the rotating wheel drives trolley rotate, in this way, materials on the trays can be evenly baked and dried.

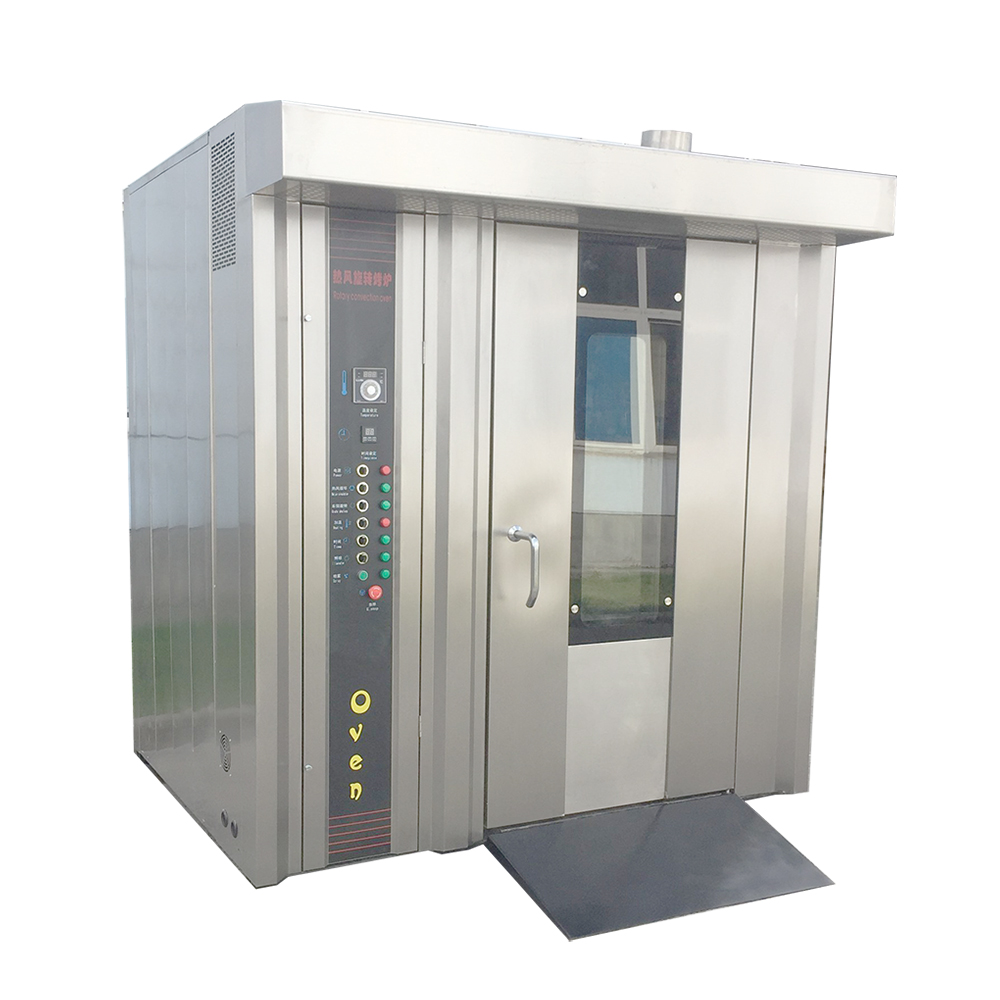

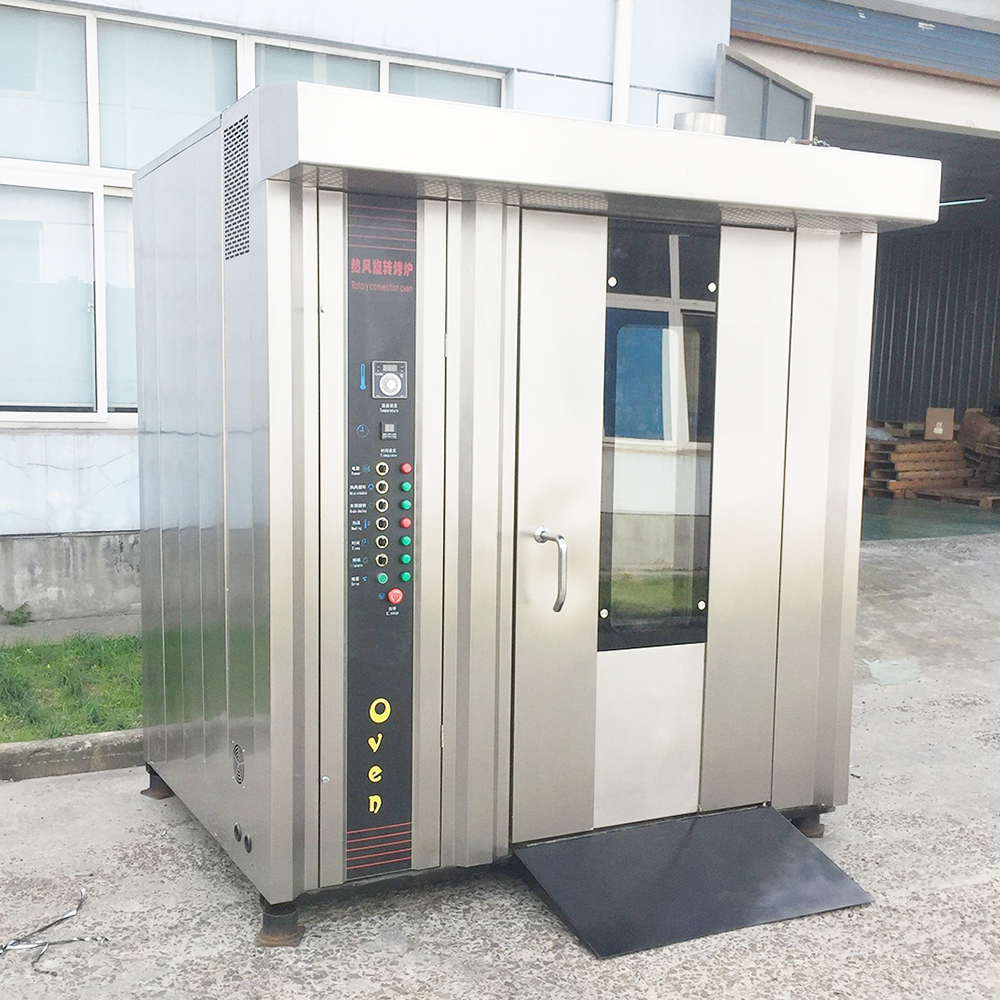

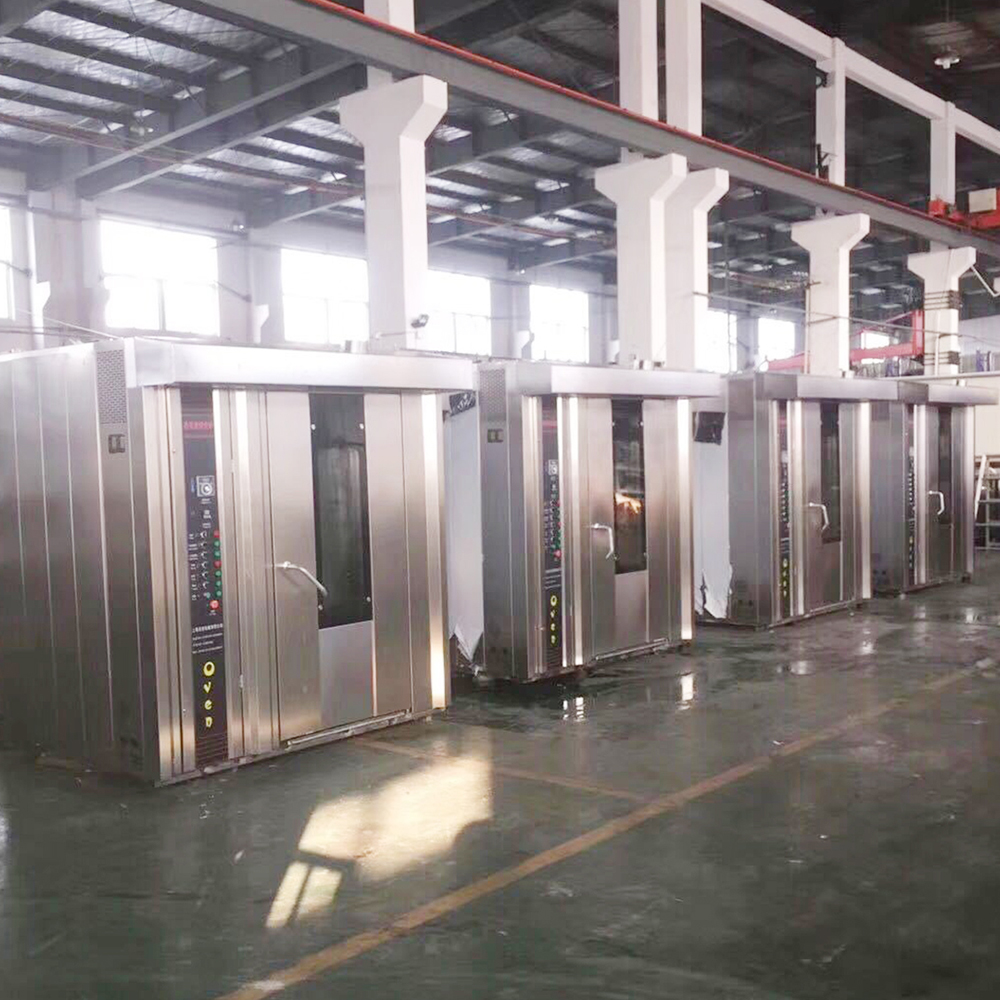

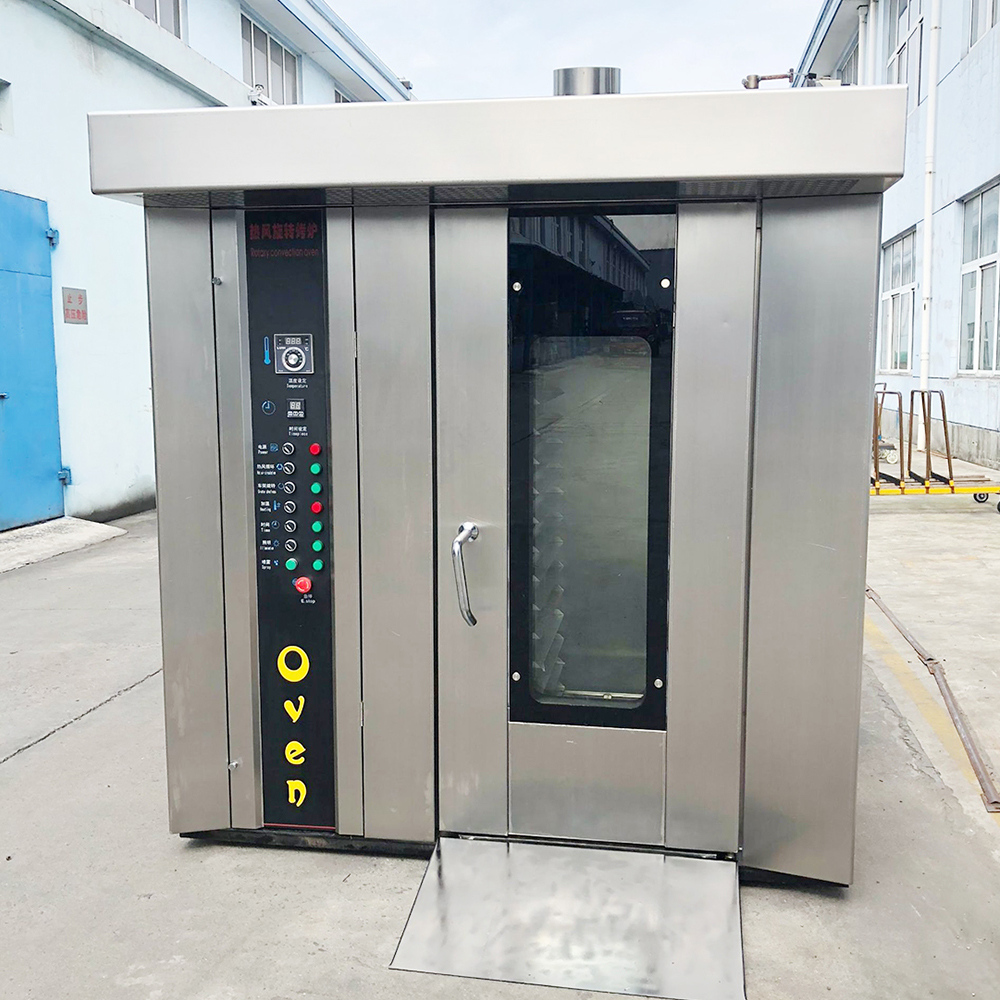

Product display
Related parameters
|
Model |
ZY-100D (electric) |
ZY-100Y (diesel oil) |
ZY-100Q (gas) |
ZY-200D (electric) |
ZY-200Y (diesel oil) |
ZY-200Q (gas) |
|
Specified voltage |
~3N380V/50Hz |
~3N380V/50Hz |
~3N380V/50Hz |
~3N380V/50Hz |
~3N380V/50Hz |
~3N380V/50Hz |
|
Combustion lamp |
/ |
60000 calories |
Natural gas (2.5-3.5) m/h Liquid gas (3-3.5) m/h |
/ |
120000 calories |
Natural gas (5.8-10.5) m/h Liquid gas (3-6) m/h |
|
Oil consumption(L/h) |
/ |
3-4L/h |
/ |
6-8L/h |
||
|
Power(kw/h) |
48 |
/ |
/ |
72 |
/ |
/ |
|
Drive power(kw/h) |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
|
Temperature(℃) |
-400'C |
-400'C |
-400'C |
-400'C |
-400'C |
-400'C |
|
Capacity(kg/h) |
100 |
100 |
100 |
200 |
200 |
200 |
|
Grill size(mm) |
820*680*1700mm |
820*680*1700mm |
820*680*1700mm |
820*680*1750mm |
820*680*1750mm |
820*680*1750mm |
|
Grill layers |
32tray |
32tray |
32tray |
64tray |
64tray |
64tray |
|
Dimensions(mm) |
2000*1800*2200mm |
2000*1800*2200mm |
2000*1800*2200mm |
2600*2300*2300mm |
2600*2300*2300mm |
2600*2300*2300mm |
|
Weight(kg) |
1300 |
1300 |
1300 |
2000 |
2000 |
2000 |
|
Material |
stainless steel |
stainless steel |
stainless steel |
stainless steel |
stainless steel |
stainless steel |
|
Dish dimension(mm) |
400*600mm |
400*600mm |
400*600mm |
400*600mm |
400*600mm |
400*600mm |
Main features
The baking is very uniform, the product has a good baking effect, and the color is uniform.
High security and low failure rate. The stove of the hot air rotary furnace is heated by high-quality materials and special methods, which has a long service life and is easy to repair.
The heating method of the hot air rotary furnace can be customized according to customer requirements, such as coal, oil, steam and electricity.
