BHX Hot air circulation dryer
Hot air circulation oven is suitable for heating, solidification, drying and dehydration of materials and products in pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries. Such as raw materials, traditional Chinese medicine, traditional Chinese medicine pieces, extracts, powders, granules, granules, water pills, packaging bottles, pigments, dyes, dehydrated vegetables, dried fruits, sausages and bacon, plastic resins, electrical components, and baking paint.
Model: BHX-O
Capacity(kg/batch): 120
Heating power(kw): 14
Power of air blower(kw): 0.45
Steam consumption(kg/h): 10
Main application
BHX Hot air circulating oven is one of the major equipments in manufacturing Chinese herbal troches. This machine is widely applicable for heating and dehumidifying the materials in pharmacy, chemical, foodstuff, light industry and heavy industry.
Working principle
Electric is used as the heat source. The axial flow fan is used for convectively exchanging the air. The hot air transfers the heat to the material through the drying tray. The fresh air enters the drying box through air inlet hole for making-up. The humid air is exhausted from the dehumidifying hole, and in this way to keep the proper relative humidity in the drying box.

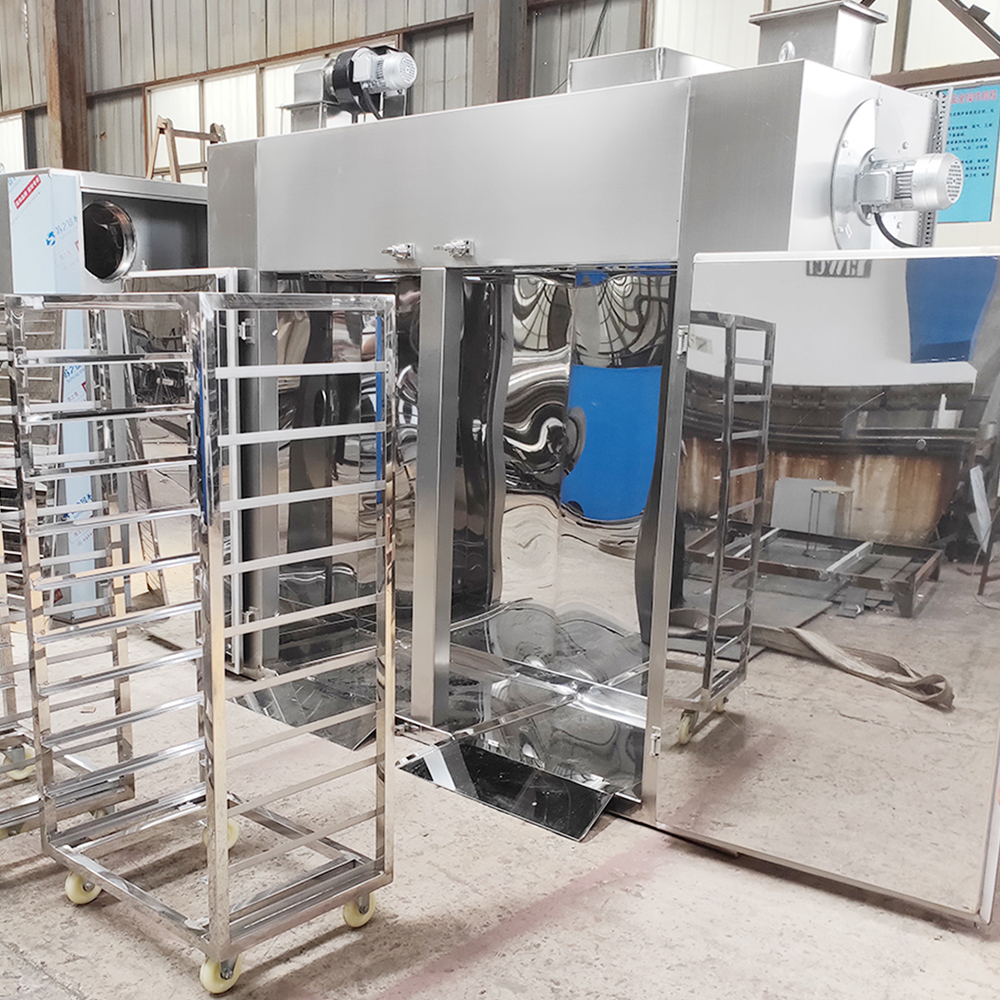

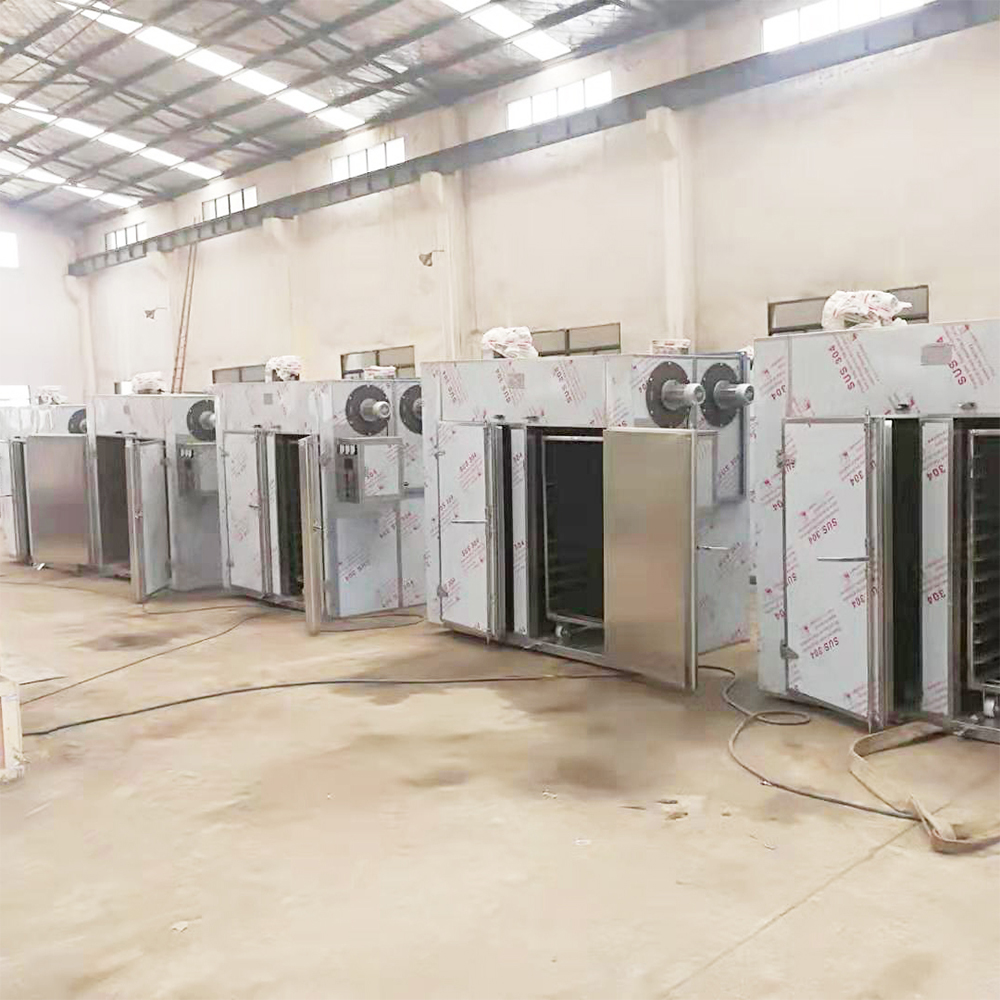

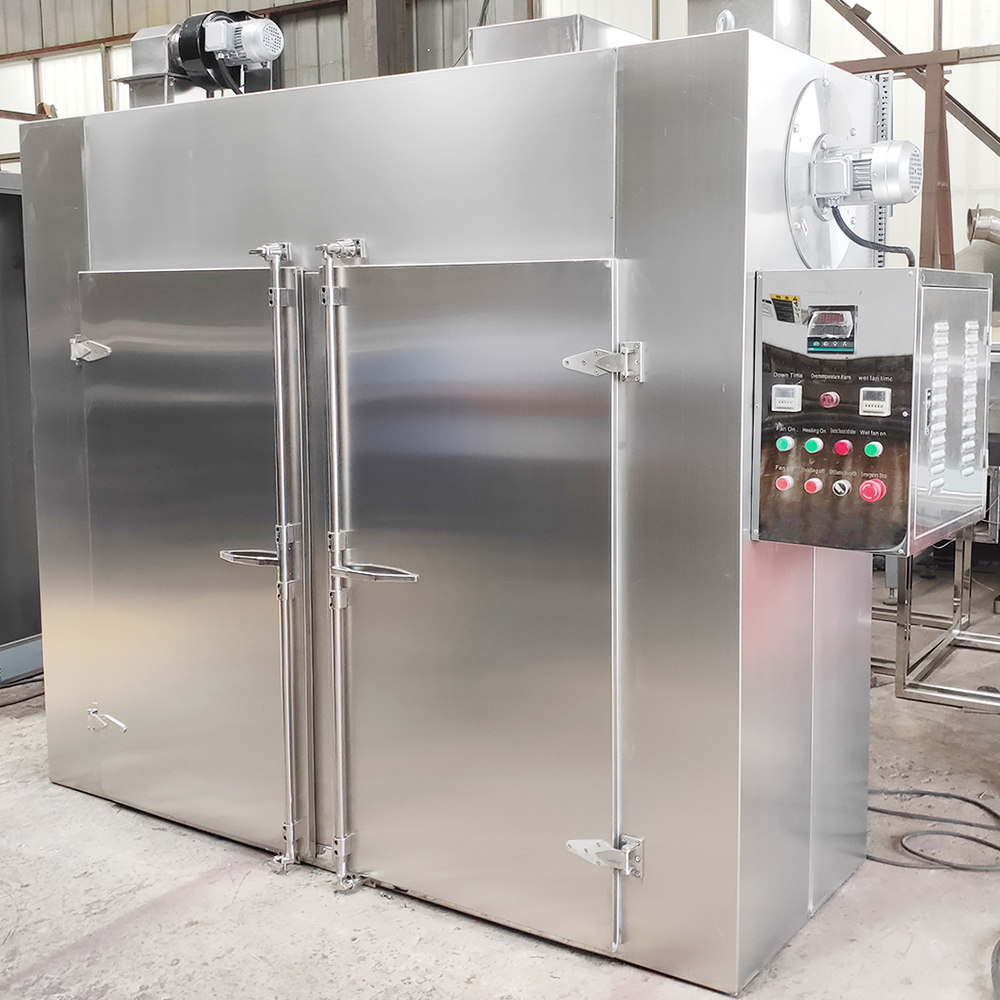

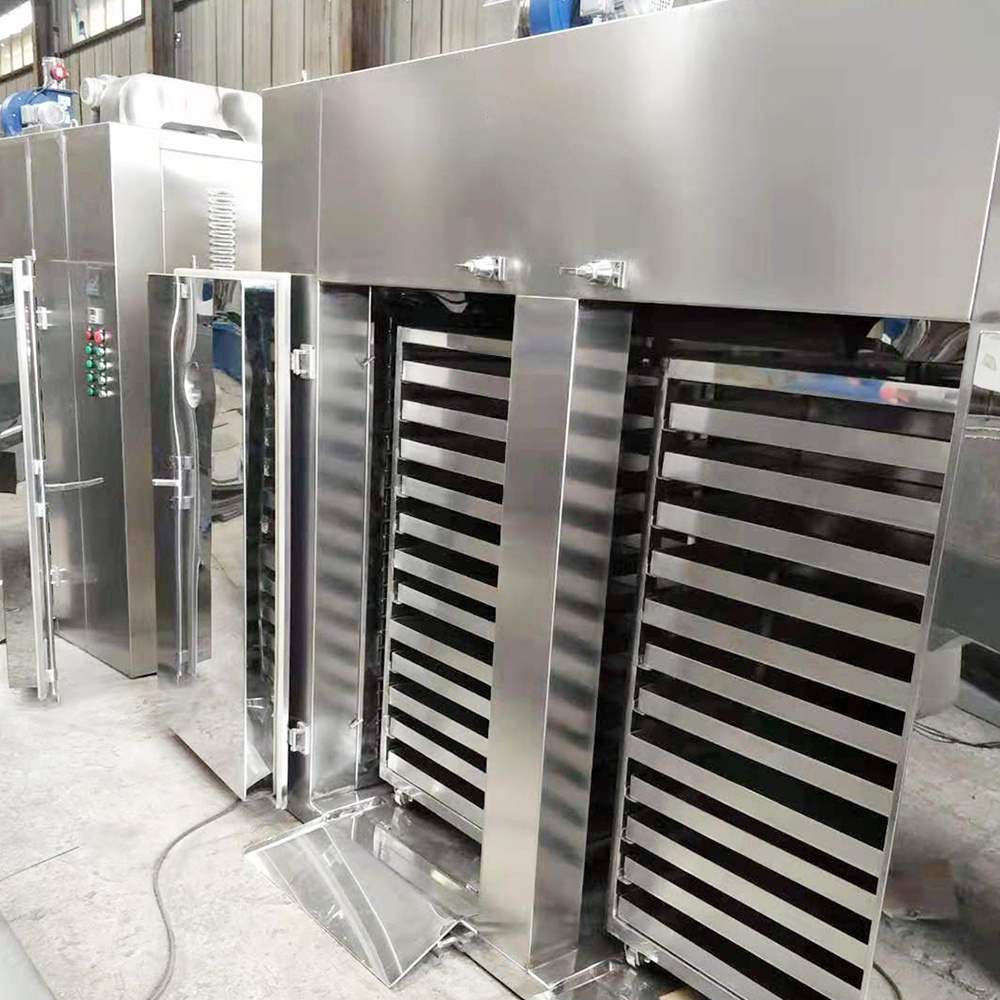

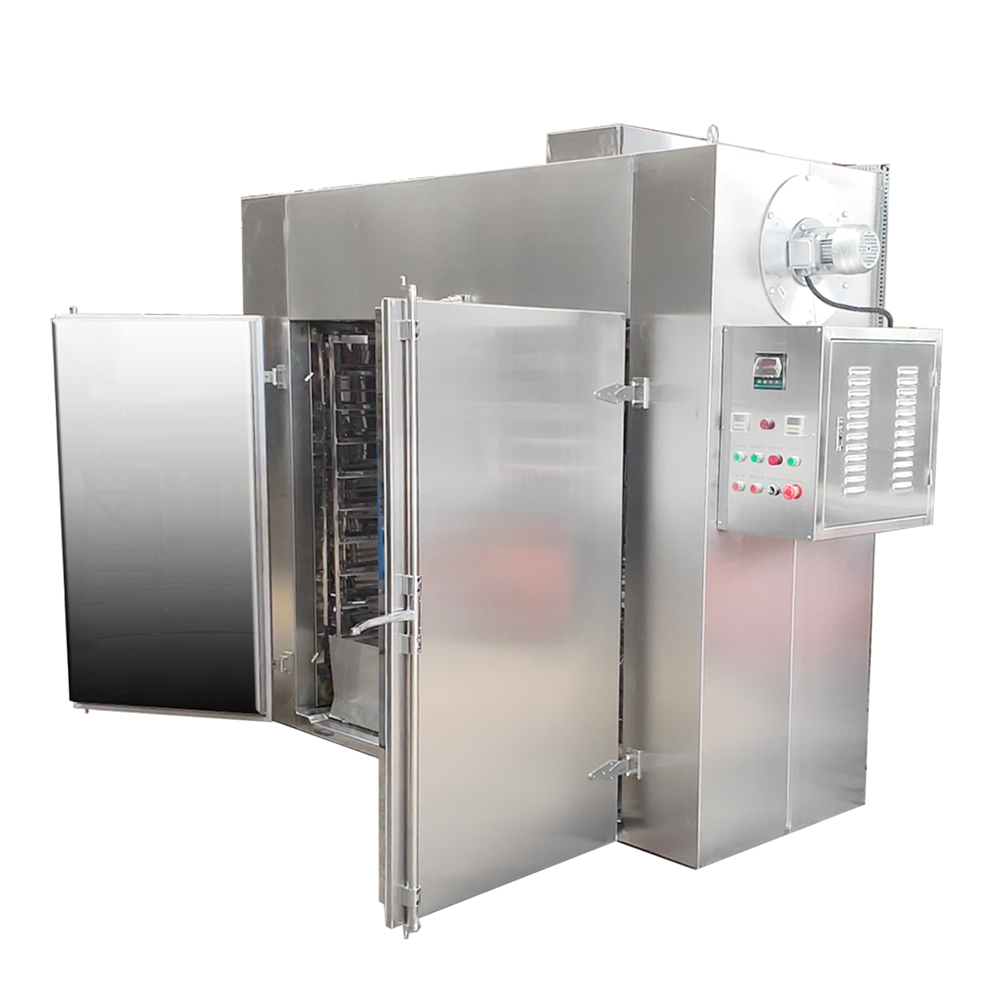

Product display
Related parameters
|
Model |
BHX-O |
BHX-I |
BHX-II |
BHX-III |
BHX-IV |
|
Capacity(kg/batch) |
120 |
240 |
480 |
720 |
960 |
|
Heating power(kw) |
14 |
24 |
48 |
72 |
96 |
|
Power of |
0.45 |
0.45 |
0.9 |
1.35 |
1.8 |
|
Steam consumption(kg/h) |
10 |
18 |
36 |
54 |
72 |
|
Radiator |
10 |
20 |
40 |
80 |
100 |
|
Volume of wind(m3/h) |
3450 |
3450 |
6900 |
10350 |
13800 |
|
Amount of trays |
24 |
48 |
96 |
144 |
196 |
|
Amount of Trolleys |
1 |
2 |
4 |
6 |
8 |
|
Dimension(mm) |
1430×1350 |
2430×1350 |
2430×2350 |
2430×3220 |
4460×2200 |
|
Weight(kg) |
600 |
930 |
1400 |
1900 |
2300 |
Main features
Most of the hot winds are cycled in the box, and the entire cycle is closed. It has high transmission efficiency, and can save energy. By the forced ventilation and adjustable air distributing plate, the upper and lower temperature difference in the oven can be reduced. It is characterized by low noise, stable operation, automatic temperature-control and convenient maintenance.
