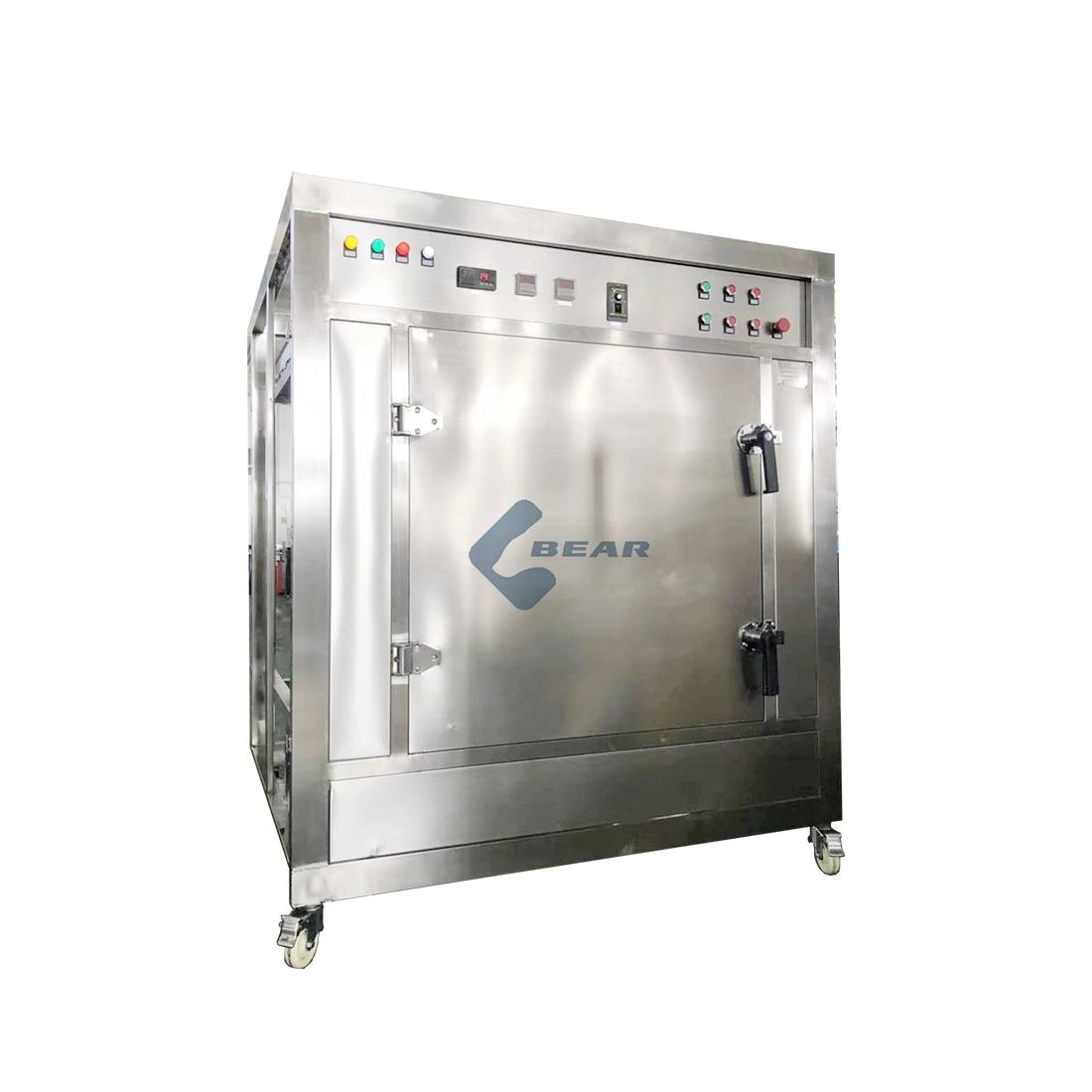

WBHX Microwave dryer oven

Microwave drying and sterilizing machine is mainly used for drying and sterilizing all kinds of herbs, spices, teas, and other agricultural products as well as most of the foods.



Model: WBHX-6

Microwave power: 6kw

Sterilizing chamber: 700*700*700mm

Dimensions: 1200*1000*1500mm

Power supply: 3Phases 5wires 380v 50hz(or as required)

    oops...!

    no product data.

    Go to homepage

    Main application

    Microwave drying and sterilizing machine is mainly used for drying and sterilizing all kinds of herbs, spices, teas, and other agricultural products as well as most of the foods.

    Working principle

    It adopts the microwave as a kind of energy. When the microwave interaction with the material molecular, it occurs molecular polarization, orientation, friction, collision. Then the materials absorb microwave energy and produce heating. It is the material itself absorbing microwave heating from internal to external, at the same time bacterias and worms are killed by the microwave. Different materials have different microwave absorbing capacity, so the heating effects are also not identical, this mainly depends on the dielectric loss of material.

    tea dryer

    Product display

    microwave dryer
    microwave dryer
    microwave drying oven (2)
    microwave drying oven (2)
    microwave drying machine
    microwave drying machine

    Related parameters

    Model
    WBHX-2
    WBHX-6
    WBHX-12
    Power supply
    220V±10%  50Hz±1%
    380V±10%  50Hz±1%
    380V±10%  50Hz±1%
    Rated input power
    ≤2.5KVA
    ≤7KVA
    ≤13KVA
    Microwave output power
    2kw(Adjustable)
    6kw(Adjustable)
    12kw(Adjustable)
    Dimension
    900*760*1300
    1200*1000*1500mm
    1500*1200*1730mm
    Sterilizing chamber
    500*500*450mm
    700*700*700mm
    900*900*900mm
    Frequency
    2450±50MHz
    Environment temp.
    -10~50℃
    Relative humidity
    ≤80%
    Standards
    In line with the national standard GB10436-89
    Comply with national standard gb5226 electrical safety standard
    Herb sterilizer machine (3)

    Main features

    a.High drying efficiency, easy temperature control, quick bactericidal and insecticide effect, stable working.

    b. The microwave heating system adopts the stainless steel drawing board. The stainless steel plate is reliable and corrosion resistant, so that the rigidity of the machine structure is high.

    c. The overall structure of the machine is smooth, beautiful, practical,and no exposed rivets, screws and other fasteners. Plates contact place is a certain "R" round corner. The machine is in accordance with GMP requirements.

    d.The aircraft microwave generator is the core of the device, in order to achieve its high performance, high reliability, long life, we adopt international first-class electronics, can continuously work 24 hours a day.

    Hot Tags:Microwave dryer oven, Nuts dryer, Black soldier fly dryer, Sesame dryer, melon seed dryer, peanut dryer, walnut dryer, almond dryer, chestnut dryer
