Wholesale Dry Grinder Machine Price BEAR Brand
Product details of the dry grinder machine price
Product Information
The parts selected for BEAR dry grinder machine price are guaranteed to meet the food grade standard. Any parts that contain BPA or heavy metals are weeded out instantly once they are found out. The drying temperature of this product is free to adjust. Unlike the traditional dehydrating methods that are unable to change the temperature freely, it is equipped with a thermostat to achieve optimized drying effect. People can benefit equal nutrients from the dehydrated food by this product. The nutrients ingredients have been inspected to be the same as pre-dehydration after the food is dehydrated.
Main application
Food: Amino acid, vitamin, egg powder, bone powder, protein, milk powder, blood powder, soy sauce powder, coffee, tea powder, glucose, pentadiene carboxylic acid, pectin, flavours, vegetable juice, yeast, starch, etc.
Ceramic: Alumina, zirconia, magnesium oxide, Titania, pottery clay, china clay, all kinds of magnetic porcelain and metal-oxides, etc.
Chemical: Aluminum polychloride, disperse dyes, reactive dyes, organic catalyzer, white carbon black, washing powder, zinc sulfate, silica, sodium metasilicate, potassium fluoride, calcium carbonate, potassium sulfate, inorganic catalyzer, wasted liquid, etc.
Dye Powder
Related parameters
|
Model |
LPG-5 |
LPG-25 |
LPG-50 |
LPG-100 |
LPG-150 |
LPG-200-2000 |
|
Inlet temperature (℃ ) |
140-350(automatically controlled) |
|||||
|
Outlet temperature (℃ ) |
~80-90 |
|||||
|
Max water evaporation capacity (kg/h) |
5 |
25 |
50 |
100 |
150 |
200-2000 |
|
Centrifugal spraying nozzle transmission method |
compressed air transmission |
mechanical transmission |
||||
|
Rotation speed (r.p.m) |
35000 |
20500 |
17600 |
17600 |
15500 |
11570 |
|
Spraying disc diameter (mm) |
50 |
108 |
120 |
130 |
150 |
180-340 |
|
Heat supply |
Electricity |
electricity, steam |
electricity, steam, fuel oil and gas |
Settled by users themselves |
||
|
Max electric heating power(kW) |
9 |
36 |
63 |
81 |
99 |
/ |
|
Dimensions(m) |
1.8*0.93*2.2 |
3*2.7*4.26 |
3.7*3.2*5.1 |
4.6*4.2*6 |
5.5*4.5*7 |
depends on the concrete conditions |
|
Dried powder collecting |
≥95% |
|||||
Mian Features

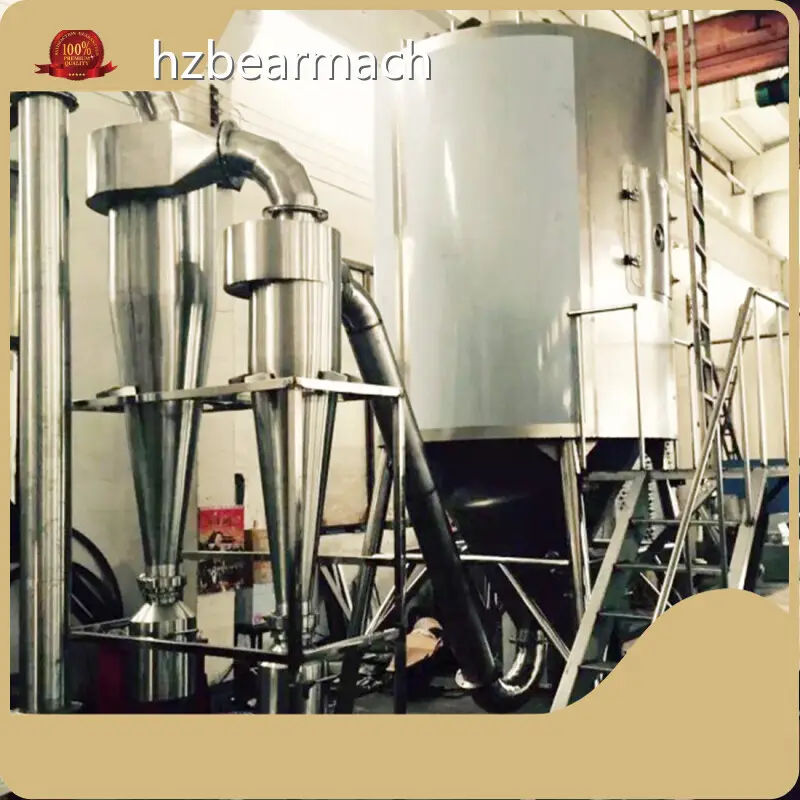

1.Fast drying speed; LPG high speed centrifugal spray dryer greatly increasing the surface area of the material after the liquid is atomized; it can instantly evaporate 95% -98% of water in the stream of hot air; it takes only a few seconds to complete drying, which is especially suitable for drying heat sensitive materials.2. Our products have a good uniformity, mobility and solubility, high purity and good quality.3. Simplified production process, easy to operate and control. Liquid of 40-60% moisture content (up to 90% for special materials) can be dried into powder products at a time, without crushing and screening after drying, which reduces production process and improve product purity. The size, bulk density, moisture can be adjusted within a certain range by changing operation conditions. It is convenient to do control and management.
Hot Tags: Dye powder spray dryer, Coffee powder spray dryer, LPG Spray dryer, Catalyst spray dryer, Sodium fluoride spray dryer, Protein powder spray dryer, Formaldehyde silicic acid spray dryer,China, Manufacturers, Suppliers, Factory, Customized
Company Advantage
• The open and smooth traffic creates convenience for the transportation and timely supply of 清洗烘干生产线,果蔬加工线,中草药处理线.
• products are not only sold well in China but also exported to Southeast Asia, Africa, and other foreign countries. They are highly praised by local consumers.
• was founded in Over the past years, we have accumulated rich production experience.
Please leave your contact information, and will contact you as soon as possible. We provide more details and quotation about electric equipment for your reference.
