LPG Centrifugal spray dryer
In the field of liquid molding process and drying industry, LPG's high-speed centrifugal spray drying equipment will be the ultimate solution for converting solutions, emulsions, liquids and pumpable pastes into perfect powdery and granular solid products. Spray drying is ideal when precise criteria must be met for particle size distribution, residual moisture content, bulk density and particle shape.
Model: LPG-10
Spray tower size: φ1.3m
Max water vapor qty.: 10kg/h
Air inlet temp.: 160-300℃
Heating method: Steam heating,Electric heating,Fuel oil heating and gas heating
Main application
* Chemical Industry: sodium fluoride (potassium), alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formaldehyde silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon black, etc.
* Plastic Resin: AB, ABS latex, urea resin, phenolic resin, dense glue (urea) formaldehyde resins, polyethylene, polyvinyl chloride, etc.
* Food Industry: fat-rich milk powder, lancet protein, cocoa milk powder, babymeal, hunting blood meal, egg white (yellow), etc.
* Food and Plants: oats, chicken juice, coffee, instant tea, seasoning meat, protein, soybean, peanut protein, hydrolyzate and so on.
* Sugar: corn syrup, corn starch, glucose, pectin, malt sugar, potassium sorbate, etc.
* Ceramics: aluminium oxide, ceramic tile material, magnesium oxide, talcum powder, etc.

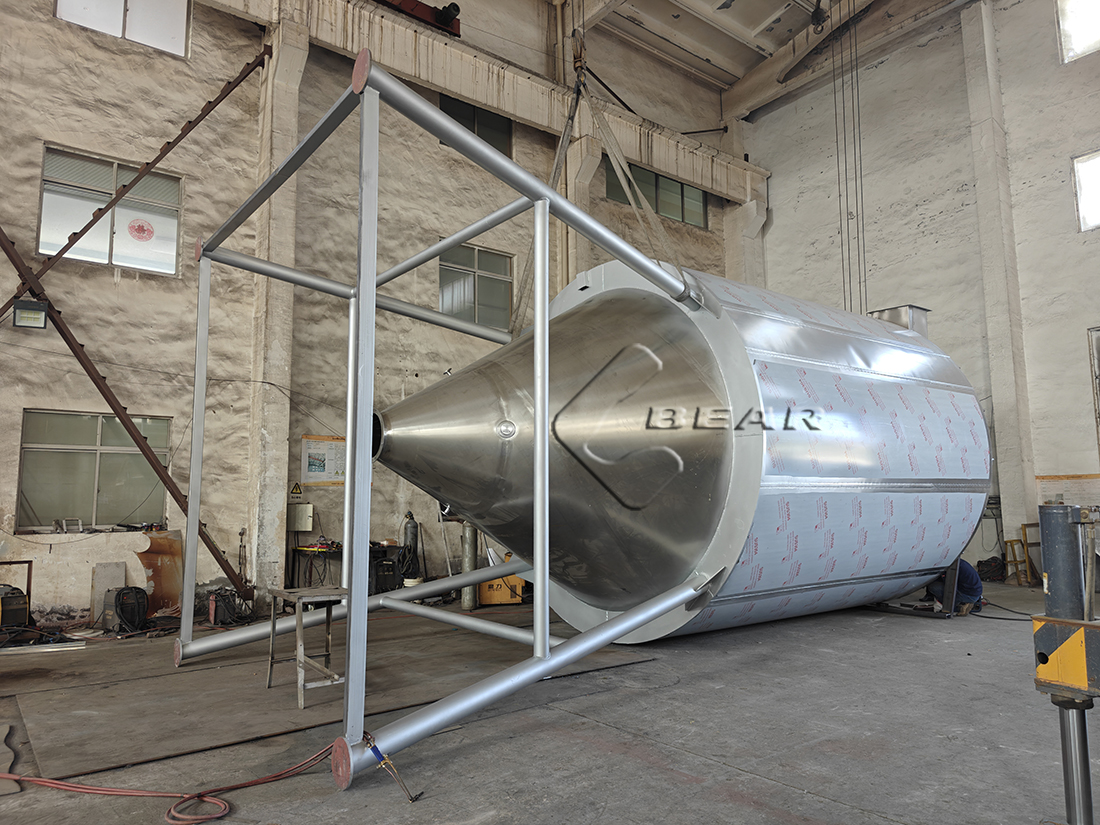

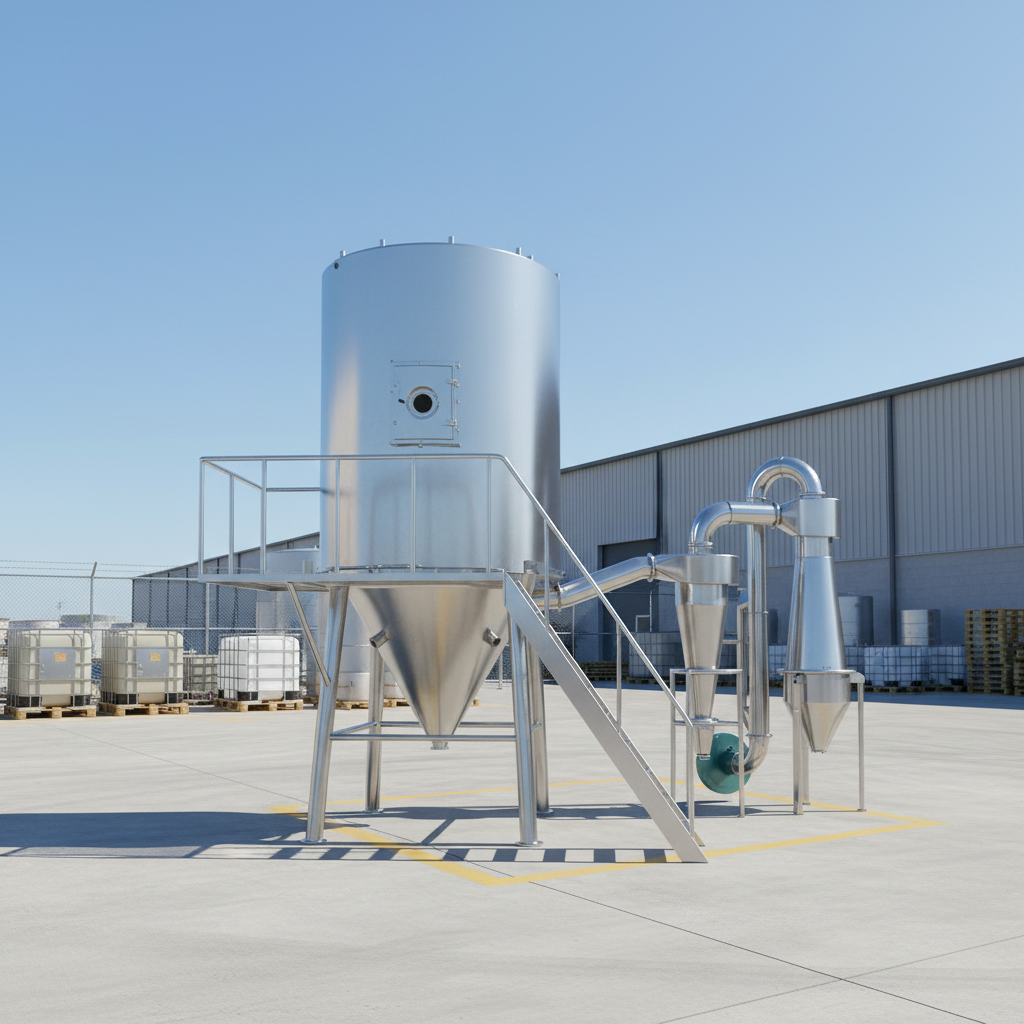

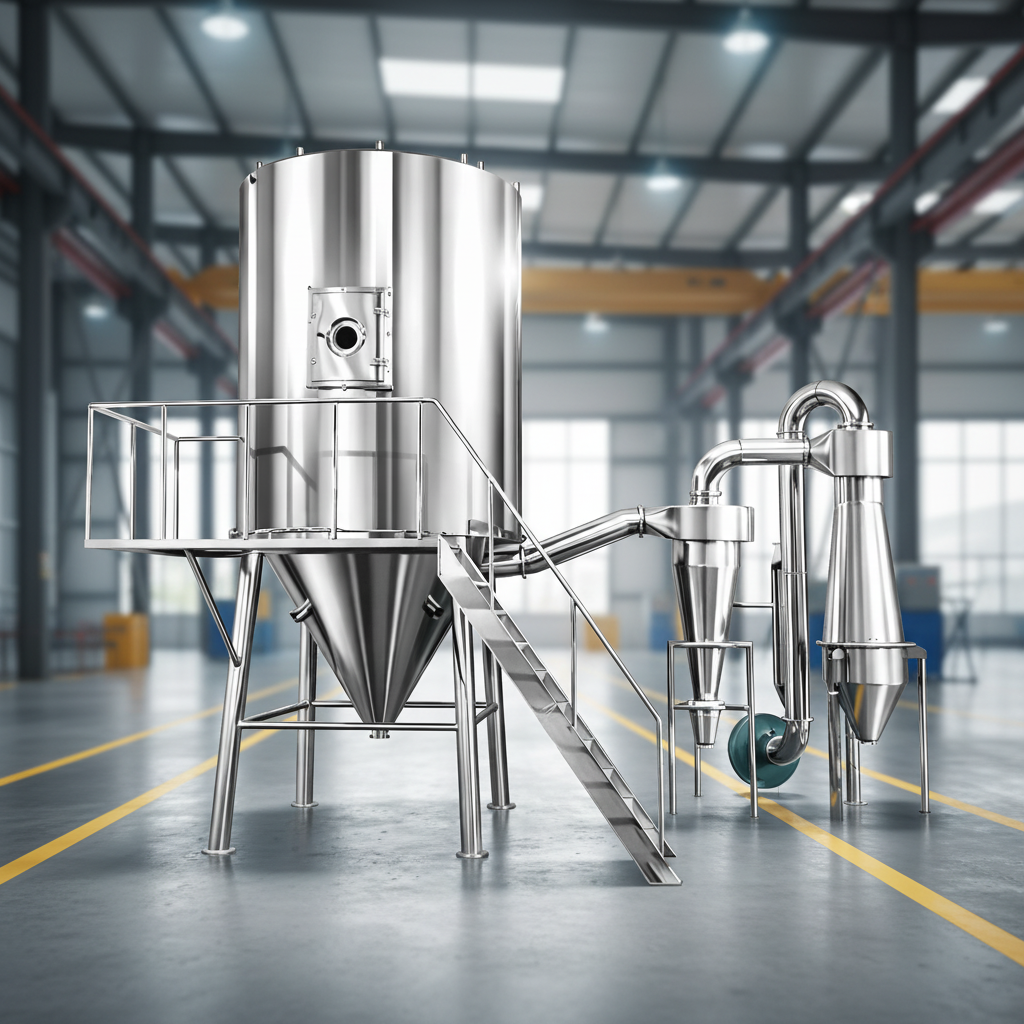

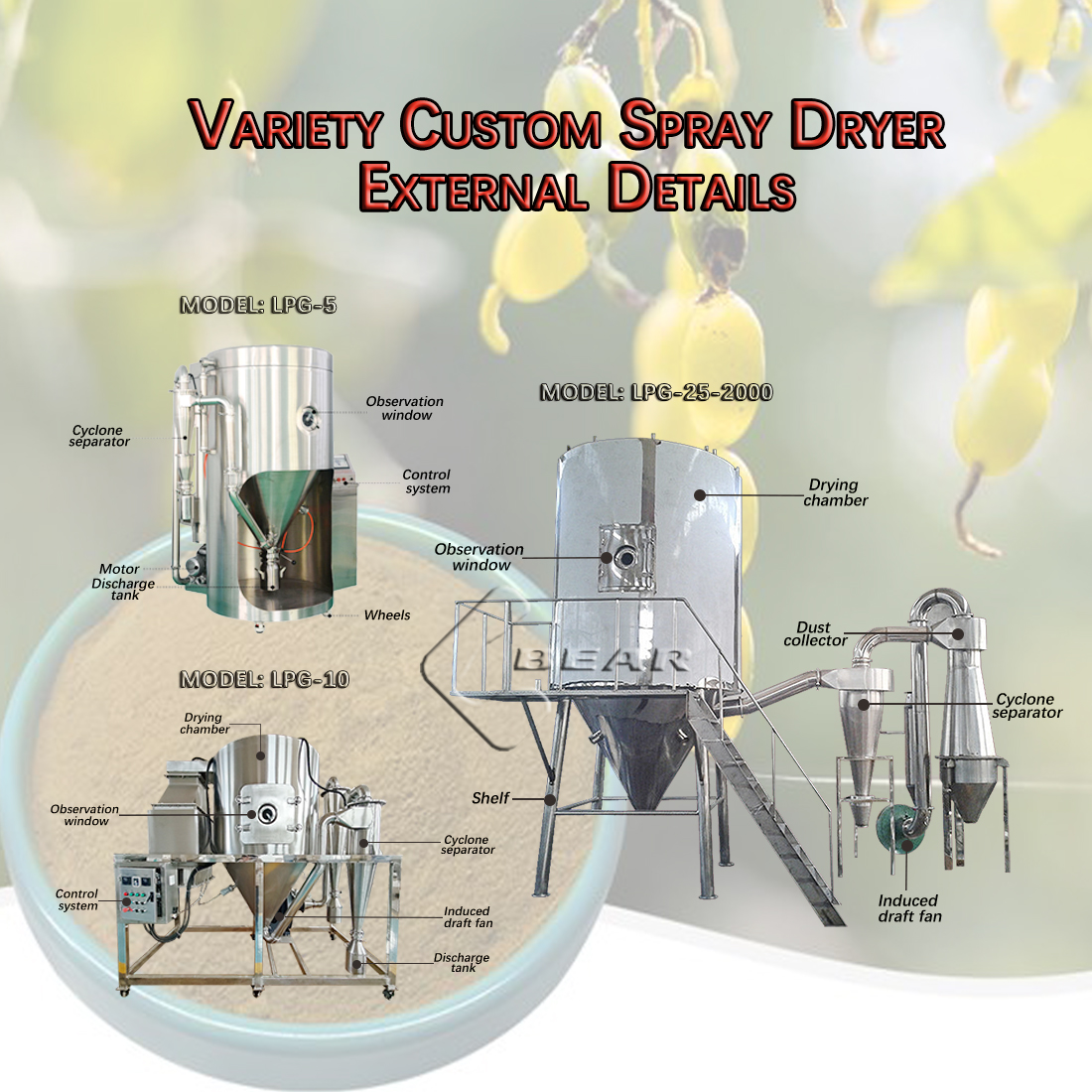

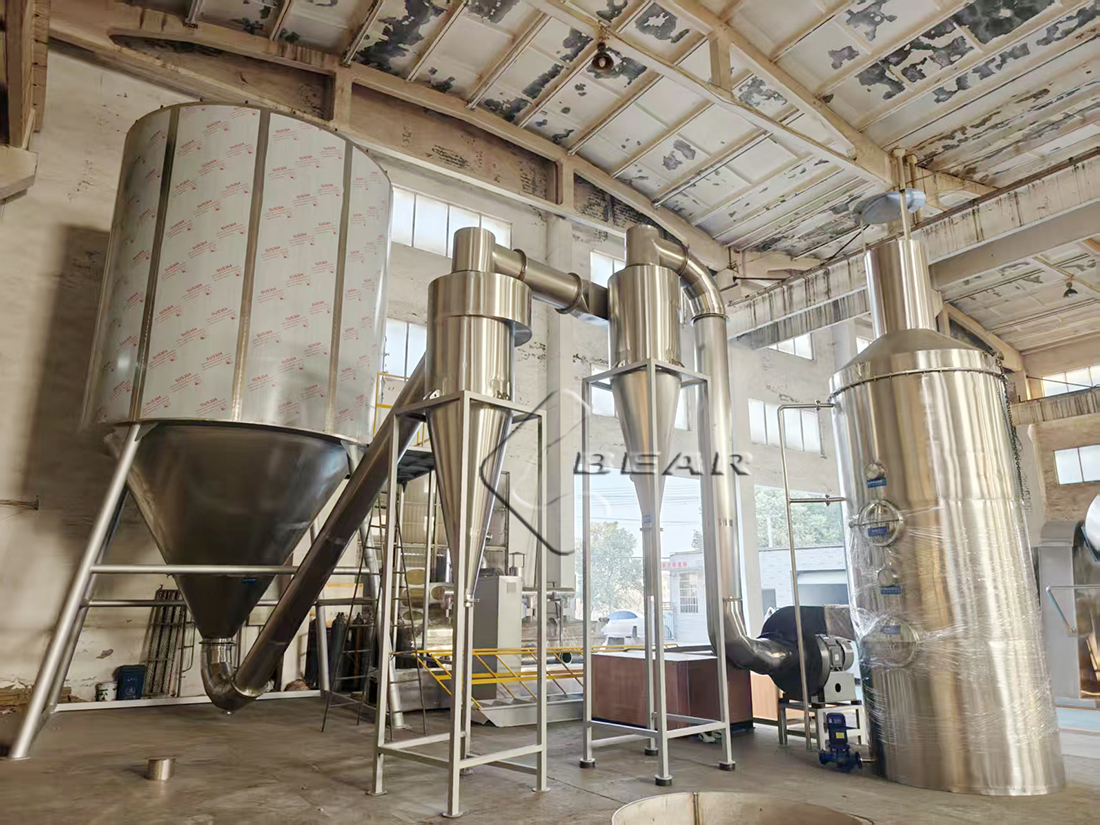

Product display
Related parameters
|
Model |
LPG-5 |
LPG-25 |
LPG-50 |
LPG-100 |
LPG-150 |
LPG-200-2000 |
|
Inlet temperature (℃ ) |
140-350(automatically controlled) |
|||||
|
Outlet temperature (℃ ) |
~80-90 |
|||||
|
Max water evaporation capacity (kg/h) |
5 |
25 |
50 |
100 |
150 |
200-2000 |
|
Centrifugal spraying nozzle transmission method |
compressed air transmission |
mechanical transmission |
||||
|
Rotation speed (r.p.m) |
35000 |
20500 |
17600 |
17600 |
15500 |
11570 |
|
Spraying disc diameter (mm) |
50 |
108 |
120 |
130 |
150 |
180-340 |
|
Heat supply |
Electricity |
electricity, steam |
electricity, steam, fuel oil and gas |
Settled by users themselves |
||
|
Max electric heating power(kW) |
9 |
36 |
63 |
81 |
99 |
/ |
|
Dimensions(m) |
1.8*0.93*2.2 |
3*2.7*4.26 |
3.7*3.2*5.1 |
4.6*4.2*6 |
5.5*4.5*7 |
depends on the concrete conditions |
|
Dried powder collecting |
≥95% |
|||||
Mian Features
1.Fast drying speed; LPG high speed centrifugal spray dryer greatly increasing the surface area of the material after the liquid is atomized; it can instantly evaporate 95% -98% of water in the stream of hot air; it takes only a few seconds to complete drying, which is especially suitable for drying heat sensitive materials.
2. Our products have a good uniformity, mobility and solubility, high purity and good quality.
3. Simplified production process, easy to operate and control. Liquid of 40-60% moisture content (up to 90% for special materials) can be dried into powder products at a time, without crushing and screening after drying, which reduces production process and improve product purity. The size, bulk density, moisture can be adjusted within a certain range by changing operation conditions. It is convenient to do control and management.
