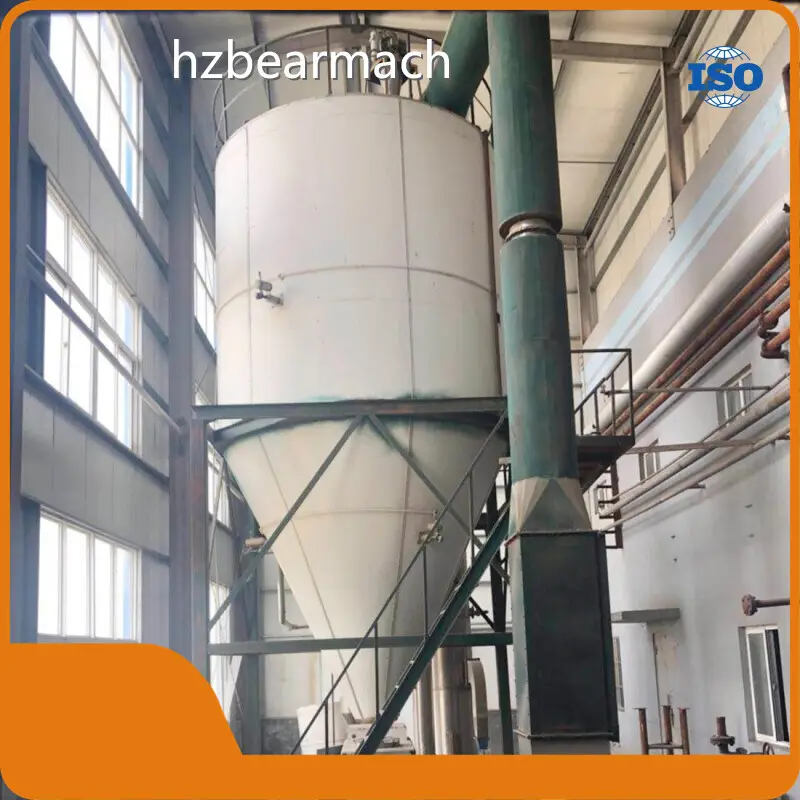

Talc Powder Spray Dryer BEAR,
Product details of the Talc Powder Spray Dryer
Product Information
BEAR Talc Powder Spray Dryer is produced in a room in which no dust and bacteria are allowed. Particularly in the assembly of its inner parts which directly contact with the food, no contaminant is permitted. This product is able to produce food without any contamination. The drying process, with high enough drying temperature, helps kill bacterial contamination. With the adjustable thermostat, it can dehydrate the food especially the meat at a high temperature to guard against pathogens.
Main application
Food: Amino acid, vitamin, egg powder, bone powder, protein, milk powder, blood powder, soy sauce powder, coffee, tea powder, glucose, pentadiene carboxylic acid, pectin, flavours, vegetable juice, yeast, starch, etc.
Ceramic: Alumina, zirconia, magnesium oxide, Titania, pottery clay, china clay, all kinds of magnetic porcelain and metal-oxides, etc.
Chemical: Aluminum polychloride, disperse dyes, reactive dyes, organic catalyzer, white carbon black, washing powder, zinc sulfate, silica, sodium metasilicate, potassium fluoride, calcium carbonate, potassium sulfate, inorganic catalyzer, wasted liquid, etc.
Potassium sorbate powder
Related parameters
|
Model |
LPG-5 |
LPG-25 |
LPG-50 |
LPG-100 |
LPG-150 |
LPG-200-2000 |
|
Inlet temperature (℃ ) |
140-350(automatically controlled) |
|||||
|
Outlet temperature (℃ ) |
~80-90 |
|||||
|
Max water evaporation capacity (kg/h) |
5 |
25 |
50 |
100 |
150 |
200-2000 |
|
Centrifugal spraying nozzle transmission method |
compressed air transmission |
mechanical transmission |
||||
|
Rotation speed (r.p.m) |
35000 |
20500 |
17600 |
17600 |
15500 |
11570 |
|
Spraying disc diameter (mm) |
50 |
108 |
120 |
130 |
150 |
180-340 |
|
Heat supply |
Electricity |
electricity, steam |
electricity, steam, fuel oil and gas |
Settled by users themselves |
||
|
Max electric heating power(kW) |
9 |
36 |
63 |
81 |
99 |
/ |
|
Dimensions(m) |
1.8*0.93*2.2 |
3*2.7*4.26 |
3.7*3.2*5.1 |
4.6*4.2*6 |
5.5*4.5*7 |
depends on the concrete conditions |
|
Dried powder collecting |
≥95% |
|||||
Mian Features
1.Fast drying speed; LPG high speed centrifugal spray dryer greatly increasing the surface area of the material after the liquid is atomized; it can instantly evaporate 95% -98% of water in the stream of hot air; it takes only a few seconds to complete drying, which is especially suitable for drying heat sensitive materials.2. Our products have a good uniformity, mobility and solubility, high purity and good quality.3. Simplified production process, easy to operate and control. Liquid of 40-60% moisture content (up to 90% for special materials) can be dried into powder products at a time, without crushing and screening after drying, which reduces production process and improve product purity. The size, bulk density, moisture can be adjusted within a certain range by changing operation conditions. It is convenient to do control and management.
