PAC Powder Spray Dryer BEAR Company
Product details of the PAC Powder Spray Dryer
Quick Overview
BEAR PAC Powder Spray Dryer is designed with reasonable and optimized dehydrating structure by our professional designers who have many years of experience in creating different types of food dehydrators for various applications. The dehydrating food preserves the natural nutrients that they contain. The simple water content removing process controlled by warm air circulation has no influence on its original ingredients. The PAC Powder Spray Dryer developed by is widely used in various fields. Sports lovers can benefit a lot from this product. The food dehydrated from it features small size and light weight, allowing them to be easily carried without adding extra burden on the sports lovers.
Product Introduction
Our PAC Powder Spray Dryer has the following advantages over similar products.
Main application
Dye printing powder drying and sterilizing machine is mainly used for drying and sterilizing all kinds of herbs, spices, teas, and other agricultural products as well as most of the foods.
Working principle
It adopts the microwave as a kind of energy. When the microwave interaction with the material molecular, it occurs molecular polarization, orientation, friction, collision. Then the materials absorb microwave energy and produce heating. It is the material itself absorbing microwave heating from internal to external, at the same time bacterias and worms are killed by the microwave. Different materials have different microwave absorbing capacity, so the heating effects are also not identical, this mainly depends on the dielectric loss of material.

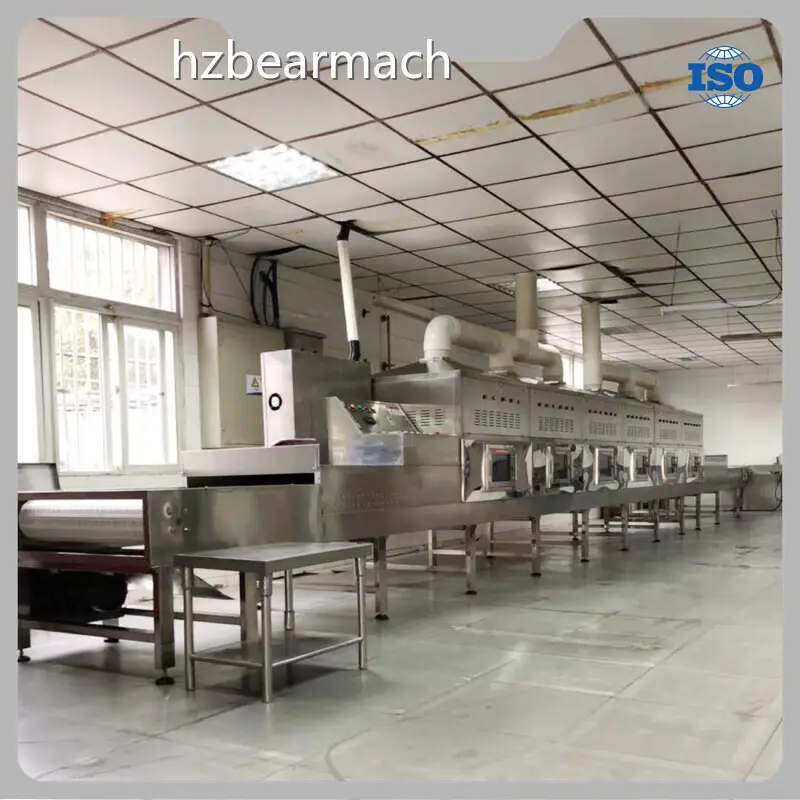

Product display
Dye printing powder dryer
Related parameters
|
Model |
WBSJ-12 |
WBSJ-36 |
WBSJ-70 |
WBSJ-180 |
|
Microwave power |
12kw |
36kw |
70kw |
180kw |
|
Microwave chamber qty. |
2 |
6 |
14 |
26 |
|
Machine dimension |
7.02*0.72*1.8m |
11.7*1.02*2m |
22.23*1.02*2m |
35.1*1.8*2.4m |
|
Power supply |
3Phases 5wires 380v 50hz(or as required) |
|||
|
Microwave frequency |
2450±50MHz |
|||
|
Environment temp. |
-10~50℃ |
|||
|
Relative humidity |
≤80% |
|||
|
Microwave leakage |
Lower than the national standard <5mw/cm2) |
|||
|
Feed and discharge port height |
80mm(or as required) |
|||
|
Conveyor speed |
0.25-5m/min, adjustable |
|||
|
Conveyor material |
PTFE,PVC,TEFLON,ETC,. |
|||
|
Machine material |
SUS304 |
|||
|
Standards |
In line with the national standard GB10436-89 Comply with national standard gb5226 electrical safety standard |
|||
Main features
1. High drying efficiency, easy temperature control, quick bactericidal and insecticide effect, stable working.
2. The microwave heating system adopts the stainless steel drawing board. The stainless steel plate is reliable and corrosion resistant, so that the rigidity of the machine structure is high.
3. The overall structure of the machine is smooth, beautiful, practical,and no exposed rivets, screws and other fasteners. Plates contact place is a certain "R" round corner. The machine is in accordance with GMP requirements.
4. The aircraft microwave generator is the core of the device, in order to achieve its high performance, high reliability, long life, we adopt international first-class electronics, can continuously work 24 hours a day.
5. The strong microwave electromagnetic field is fed by multi - sided broadband, and the network analysis and design are precisly accurate, making the material directly expose to the electromagnetic field energy, which is much greater effect and lower consumption than the side microwave fed. Compared with the normal microwave sterilizer and dryer, our sterilzier’s heating efficiency over 50% greater, and the uniformity of its insecticidal, sterilization, and heating are 2-3 times higher.
Hot Tags:Dye printing powder dryer,Snack food dryer,Flower tea dryer,Bag dryer sterilizer,Canning bottle dryer sterilizer,Printing paper dryer,Nut dryer,Microwave tunnel dryer, Nuts dryer, Black soldier fly dryer, Sesame dryer, melon seed dryer, peanut dryer, walnut dryer, almond dryer, chestnut dryer
Company Introduction
Hangzhou Bear Machinery Co.,Ltd., manufacturing PAC Powder Spray Dryer, is a modernized factory with experienced technicians, first-class production line, and advanced quality inspection instrument. The advanced labs are beneficial to the development of finest quality PAC Powder Spray Dryer. We also provide these products in customized options to meet the specific requirements of our esteemed clients.
With years of experience in production, we guarantee our product quality so you can purchase them with confidence. Feel free to contact us!
