Magnesium Oxide Spray Dryer BEAR Brand
Product details of the Magnesium oxide spray dryer
Product Information
BEAR Magnesium oxide spray dryer is required to go through a series of quality tests to guarantee that it is up to the food safety standards. This testing process is under strict inspection by the provincial food security institutions. This product is harmless to the food. The heat source and air circulation process will not generate any harmful substances which may affect the nutrition and original flavor of the food and bring potential risk. This product is able to handle acidic foodstuffs without any worry of releasing harmful substances. For example, it can dry sliced lemon, pineapple, and orange.
Main application
Microwave drying and sterilizing machine is mainly used for drying and sterilizing all kinds of herbs, spices, teas, and other agricultural products as well as most of the foods.
Working principle
It adopts the microwave as a kind of energy. When the microwave interaction with the material molecular, it occurs molecular polarization, orientation, friction, collision. Then the materials absorb microwave energy and produce heating. It is the material itself absorbing microwave heating from internal to external, at the same time bacterias and worms are killed by the microwave. Different materials have different microwave absorbing capacity, so the heating effects are also not identical, this mainly depends on the dielectric loss of material.

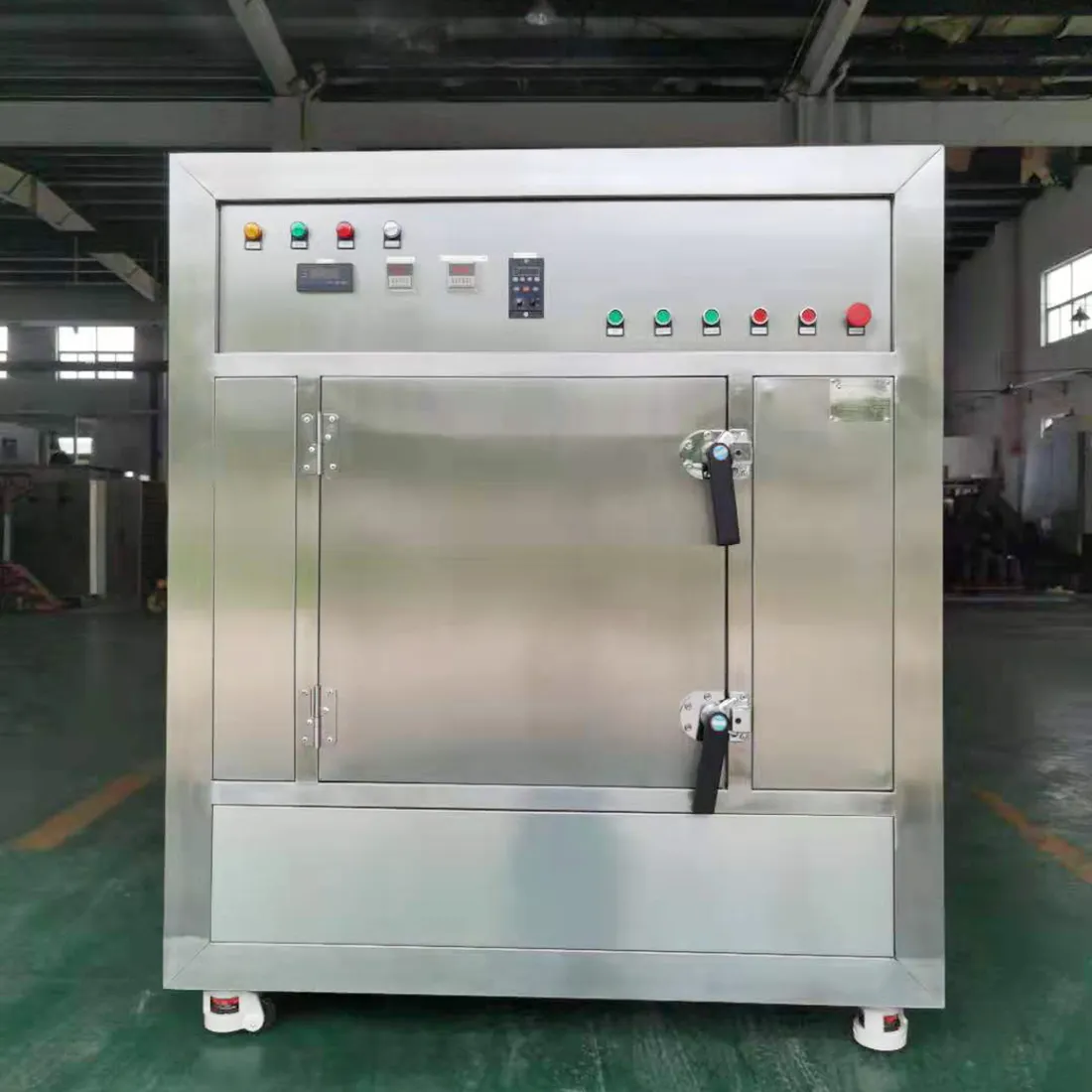

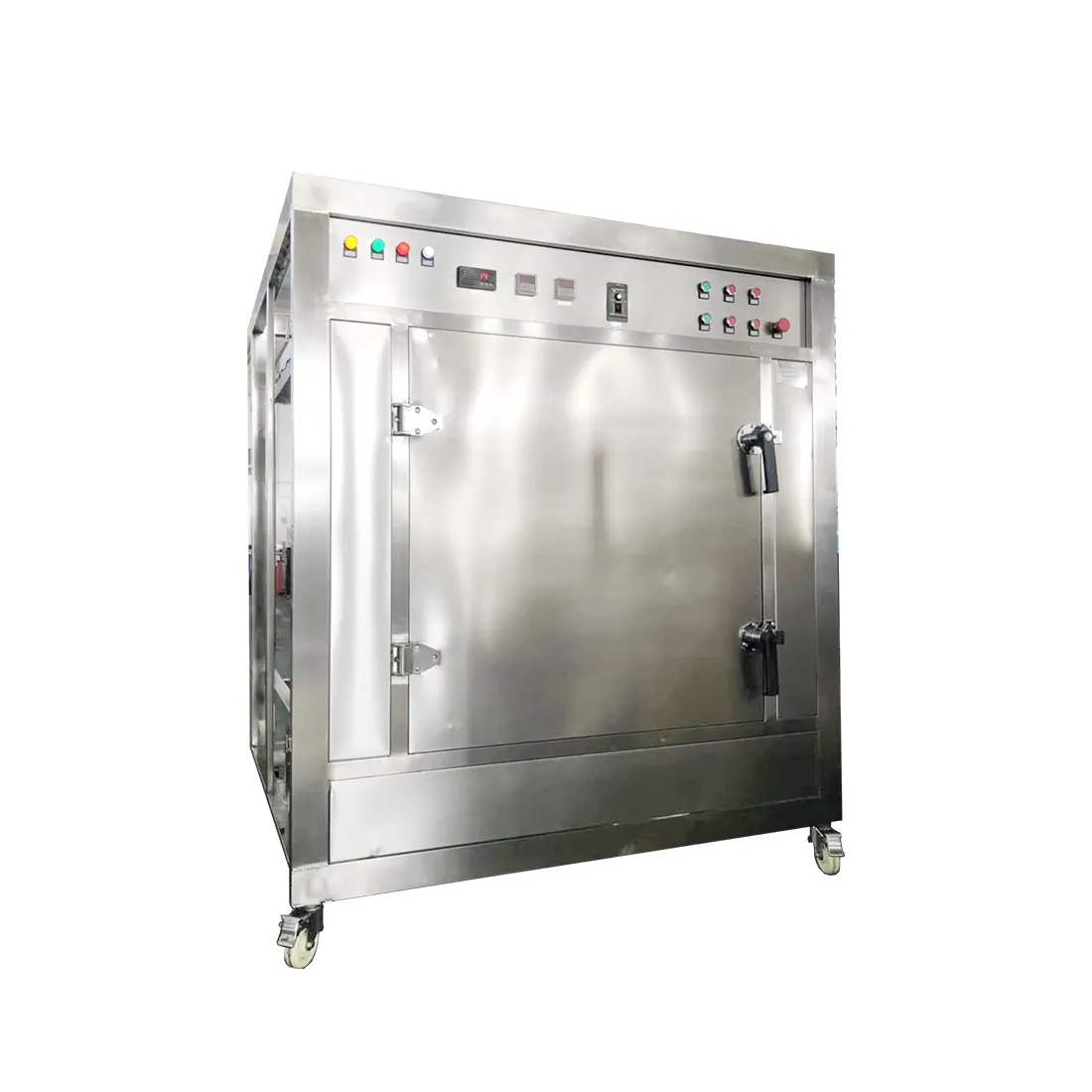

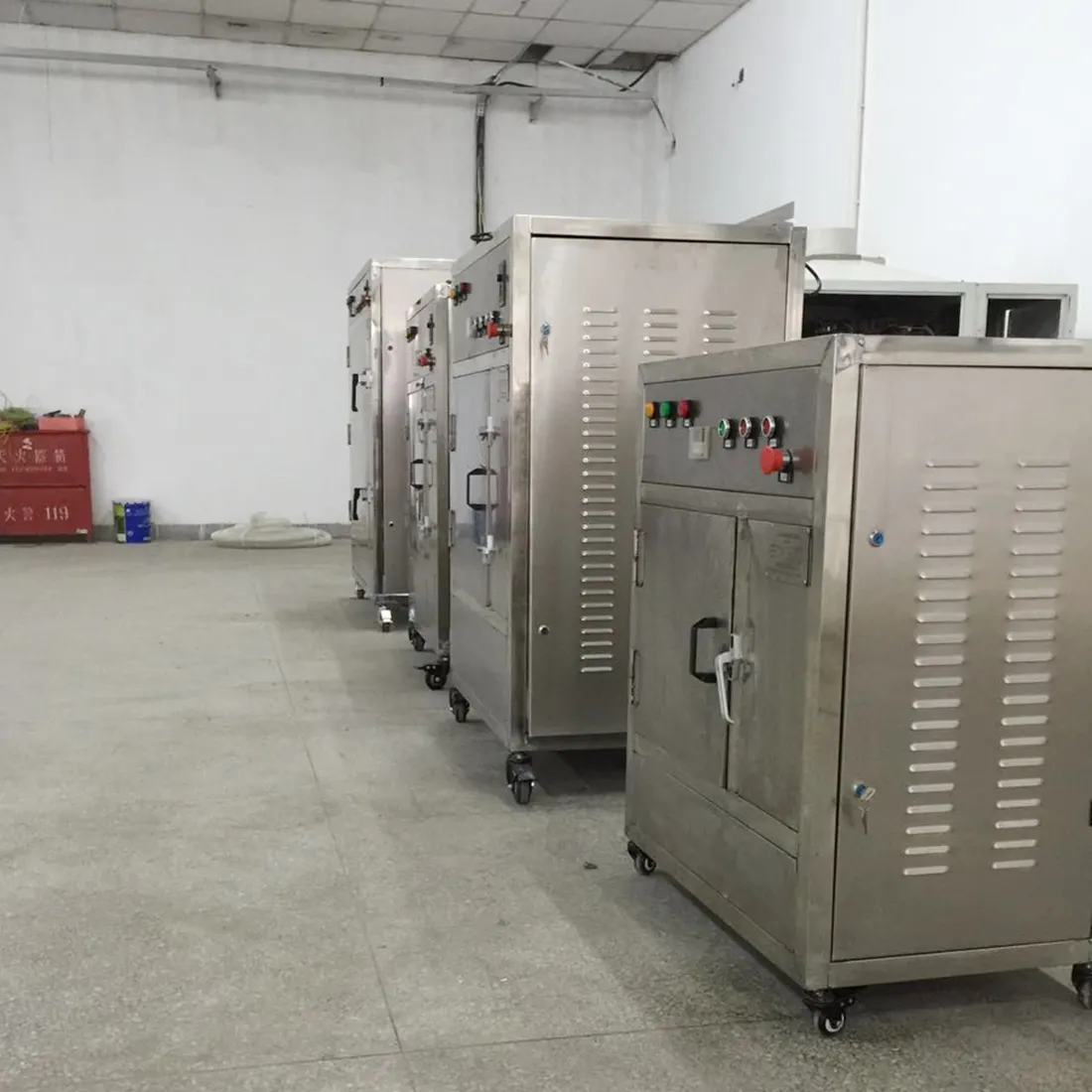

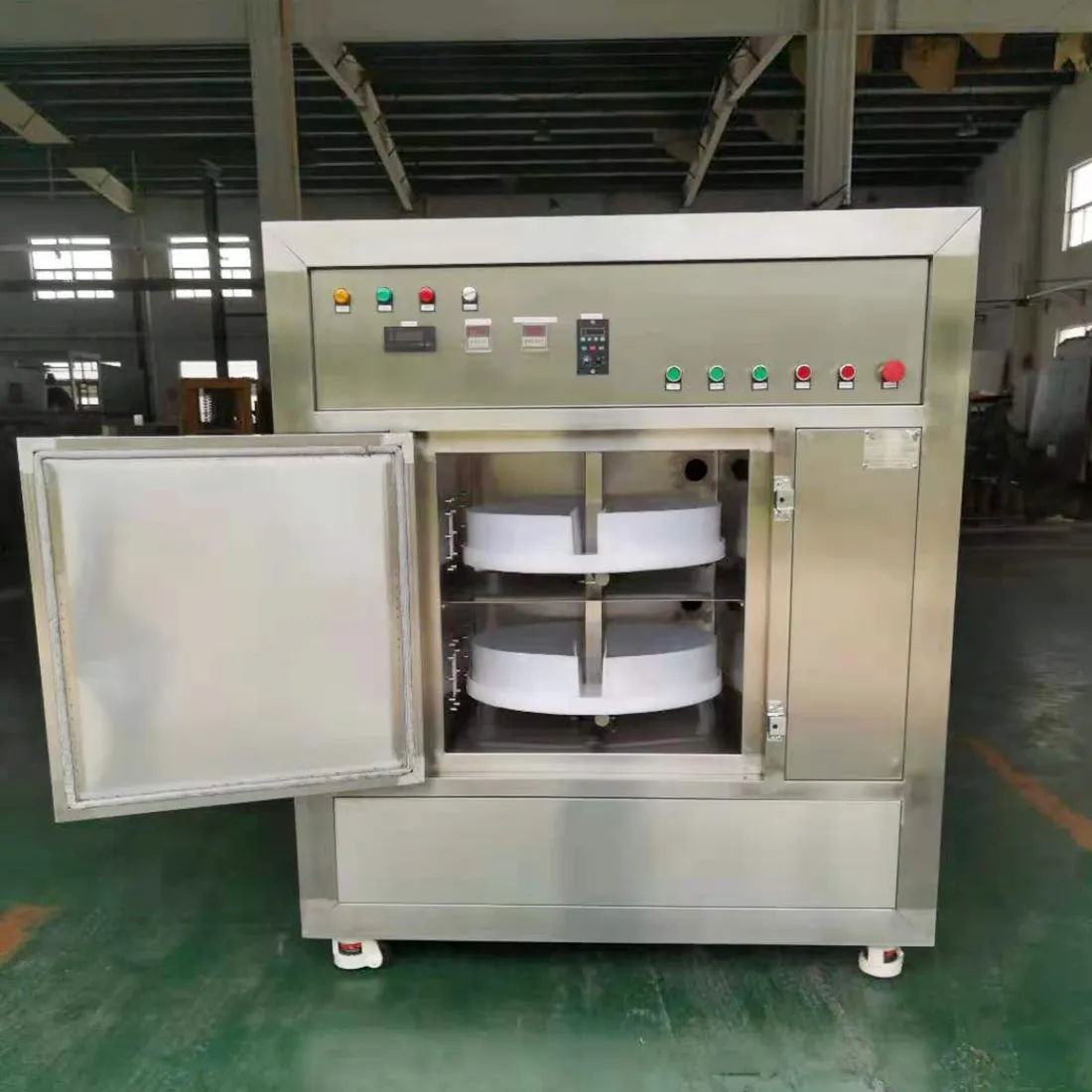

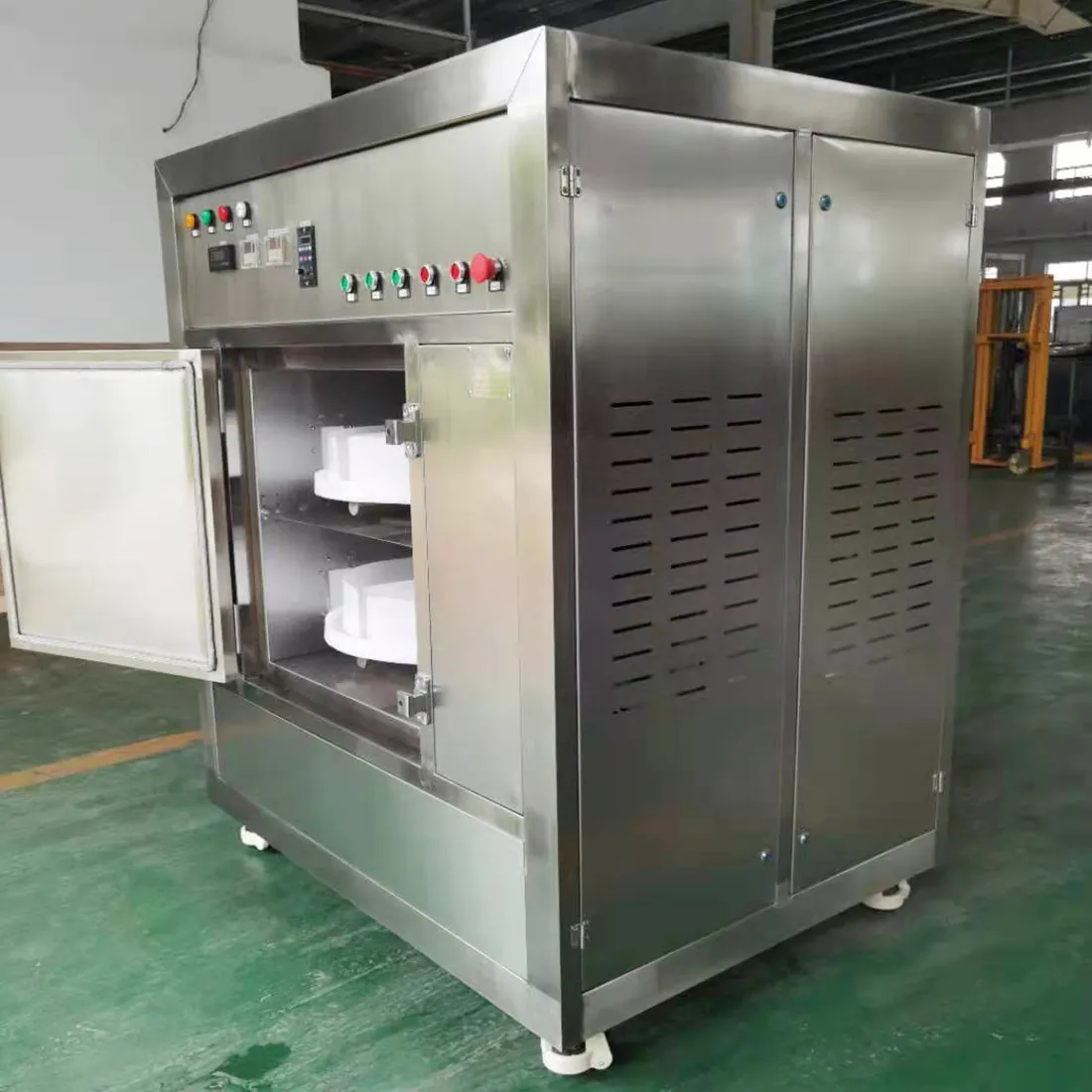

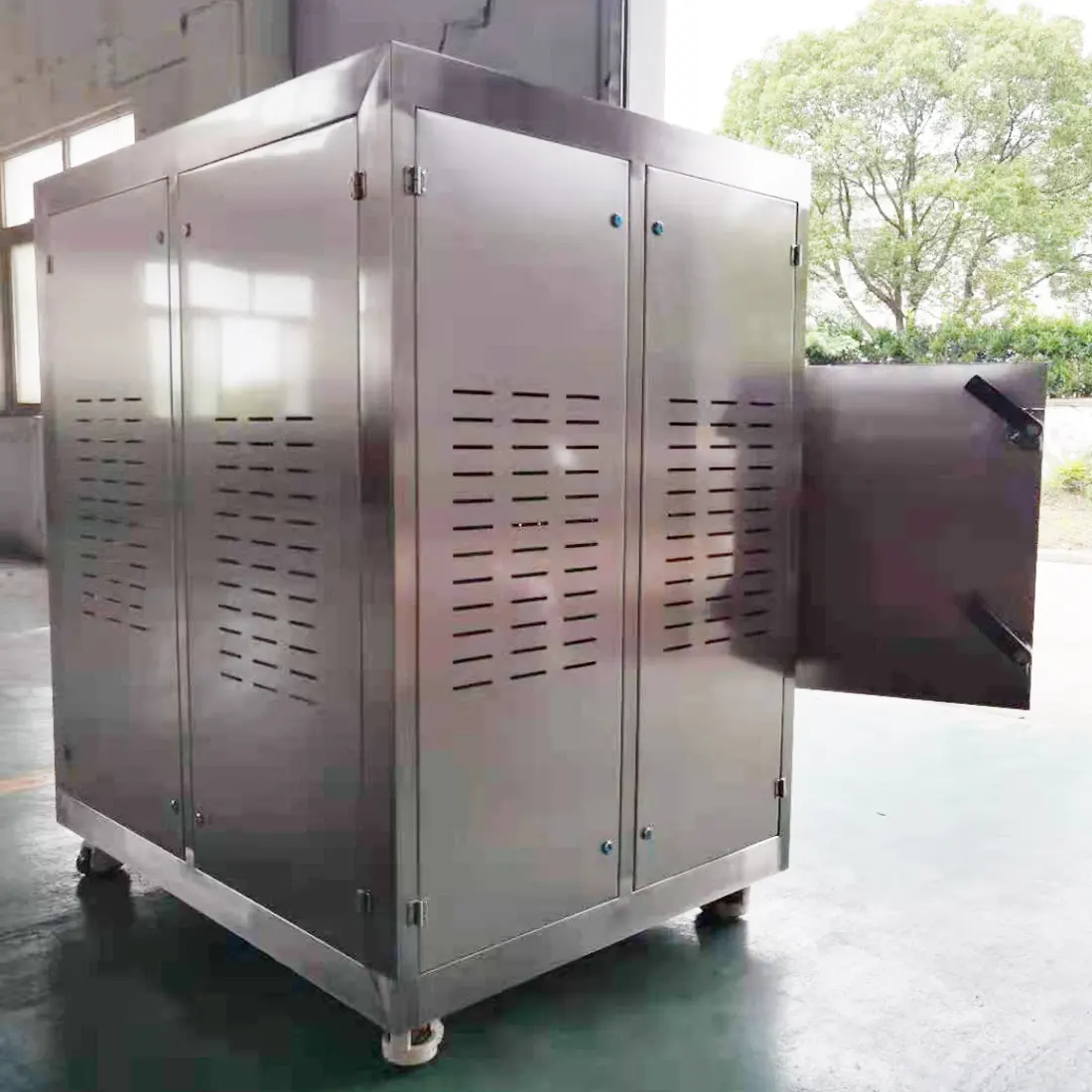

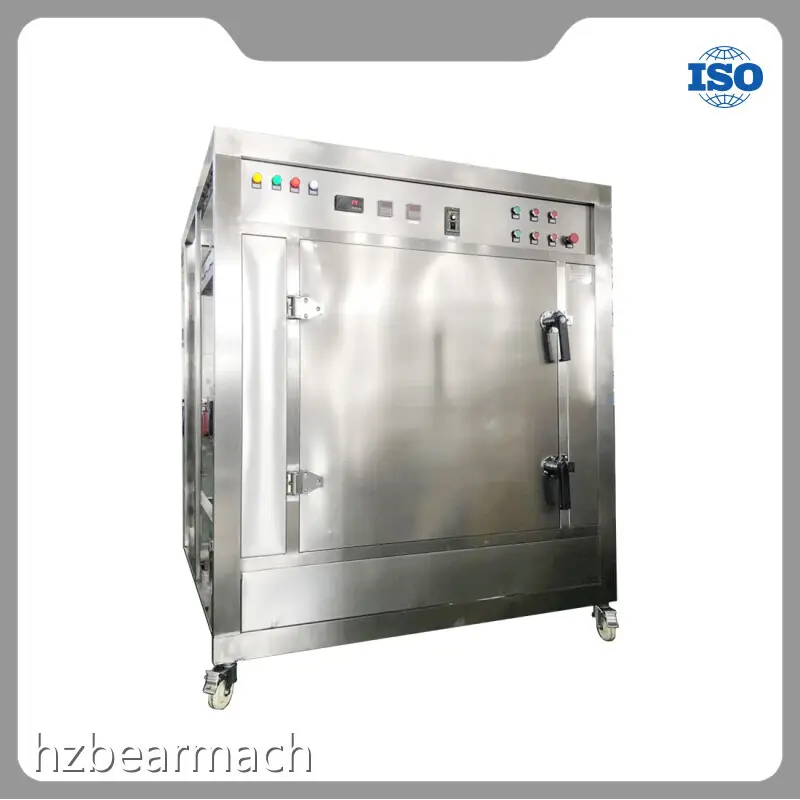

Product display
Related parameters
|
Model
|
WBHX-2
|
WBHX-6
|
WBHX-12
|
|
Power supply
|
220V±10% 50Hz±1%
|
380V±10% 50Hz±1%
|
380V±10% 50Hz±1%
|
|
Rated input power
|
≤2.5KVA
|
≤7KVA
|
≤13KVA
|
|
Microwave output power
|
2kw(Adjustable)
|
6kw(Adjustable)
|
12kw(Adjustable)
|
|
Dimension
|
900*760*1300
|
1200*1000*1500mm
|
1500*1200*1730mm
|
|
Sterilizing chamber
|
500*500*450mm
|
700*700*700mm
|
900*900*900mm
|
|
Frequency
|
2450±50MHz
|
||
|
Environment temp.
|
-10~50℃
|
||
|
Relative humidity
|
≤80%
|
||
|
Standards
|
In line with the national standard GB10436-89
Comply with national standard gb5226 electrical safety standard
|
||
Main features
a.High drying efficiency, easy temperature control, quick bactericidal and insecticide effect, stable working.
b. The microwave heating system adopts the stainless steel drawing board. The stainless steel plate is reliable and corrosion resistant, so that the rigidity of the machine structure is high.
c. The overall structure of the machine is smooth, beautiful, practical,and no exposed rivets, screws and other fasteners. Plates contact place is a certain "R" round corner. The machine is in accordance with GMP requirements.
d.The aircraft microwave generator is the core of the device, in order to achieve its high performance, high reliability, long life, we adopt international first-class electronics, can continuously work 24 hours a day.
