BEAR Dye Powder Spray Dryer Brand Manufacture
Product details of the Dye Powder Spray Dryer
Product Information
The components and parts of BEAR Dye Powder Spray Dryer are guaranteed to meet the food grade standard by the suppliers. These suppliers have been working with us for years and they attach much attention to quality and food safety. A huge amount of labor cost can be saved by using this product. Unlike the traditional drying methods which need frequent drying in the sun, the product features automation and smart control. The product, being able to dehydrate different kinds of food, helps save much money on buying snacks. People can make the delicious and nutritious dried eatables with little cost.
Main application
Herbal medicine dryer is one of the major equipments in manufacturing Chinese herbal troches. This machine is widely applicable for heating and dehumidifying the materials in pharmacy, chemical, foodstuff, light industry and heavy industry.
Working principle
Electric is used as the heat source. The axial flow fan is used for convectively exchanging the air. The hot air transfers the heat to the material through the drying tray. The fresh air enters the drying box through air inlet hole for making-up. The humid air is exhausted from the dehumidifying hole, and in this way to keep the proper relative humidity in the drying box.

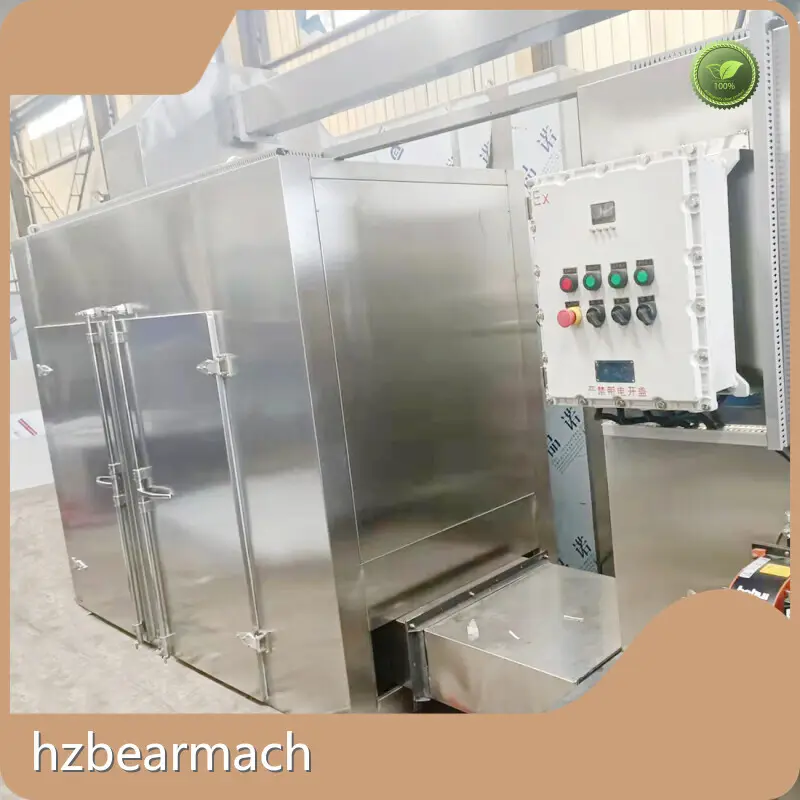

Product display
Herbal medicine
Related parameters
|
Model |
BHX-O |
BHX-I |
BHX-II |
BHX-III |
BHX-IV |
|
Capacity(kg/batch) |
120 |
240 |
480 |
720 |
960 |
|
Heating power(kw) |
14 |
24 |
48 |
72 |
96 |
|
Power of air blower(kw) |
0.45 |
0.45 |
0.9 |
1.35 |
1.8 |
|
Steam consumption(kg/h) |
10 |
18 |
36 |
54 |
72 |
|
Radiator area(m2) |
10 |
20 |
40 |
80 |
100 |
|
Volume of wind(m3/h) |
3450 |
3450 |
6900 |
10350 |
13800 |
|
Amount of trays |
24 |
48 |
96 |
144 |
196 |
|
Amount of Trolleys |
1 |
2 |
4 |
6 |
8 |
|
Dimension(mm) |
1430×1350 ×2100 |
2430×1350 ×2300 |
2430×2350 ×2300 |
2430×3220 ×2300 |
4460×2200 ×2290 |
|
Weight(kg) |
600 |
930 |
1400 |
1900 |
2300 |
Main features
Most of the hot winds are cycled in the box, and the entire cycle is closed. It has high transmission efficiency, and can save energy. By the forced ventilation and adjustable air distributing plate, the upper and lower temperature difference in the oven can be reduced. It is characterized by low noise, stable operation, automatic temperature-control and convenient maintenance.
