Edible mushroom dryer
Mainly suitable for drying, dehydrating and curing products of various shapes such as segments, sheets and strips.
Model: RB-12
Air compressor power: 10.05kw
Electric auxiliary power: 18kw
Overall size: 5.6*3.0*2.6m
Main applications
Wide range of applications: it can be used in a wide range of materials that need to be dried below 80 ℃, such as food, chemical industry, medicine, paper products, leather, wood, agricultural and sideline products processing and other industries.
Working principle
The gas Freon is pressurized by the compressor and becomes a high temperature and high-pressure gas, which enters the heat exchanger (condenser) inside the chamber, and the condensation and liquefaction of the refrigerating medium release the high-temperature heat to heat the air in the drying room. The material in the drying room vaporizes and vaporizes the moisture in the material through the form of hot air, and the evaporated steam is discharged by the dehumidification system to achieve the purpose of drying the material.

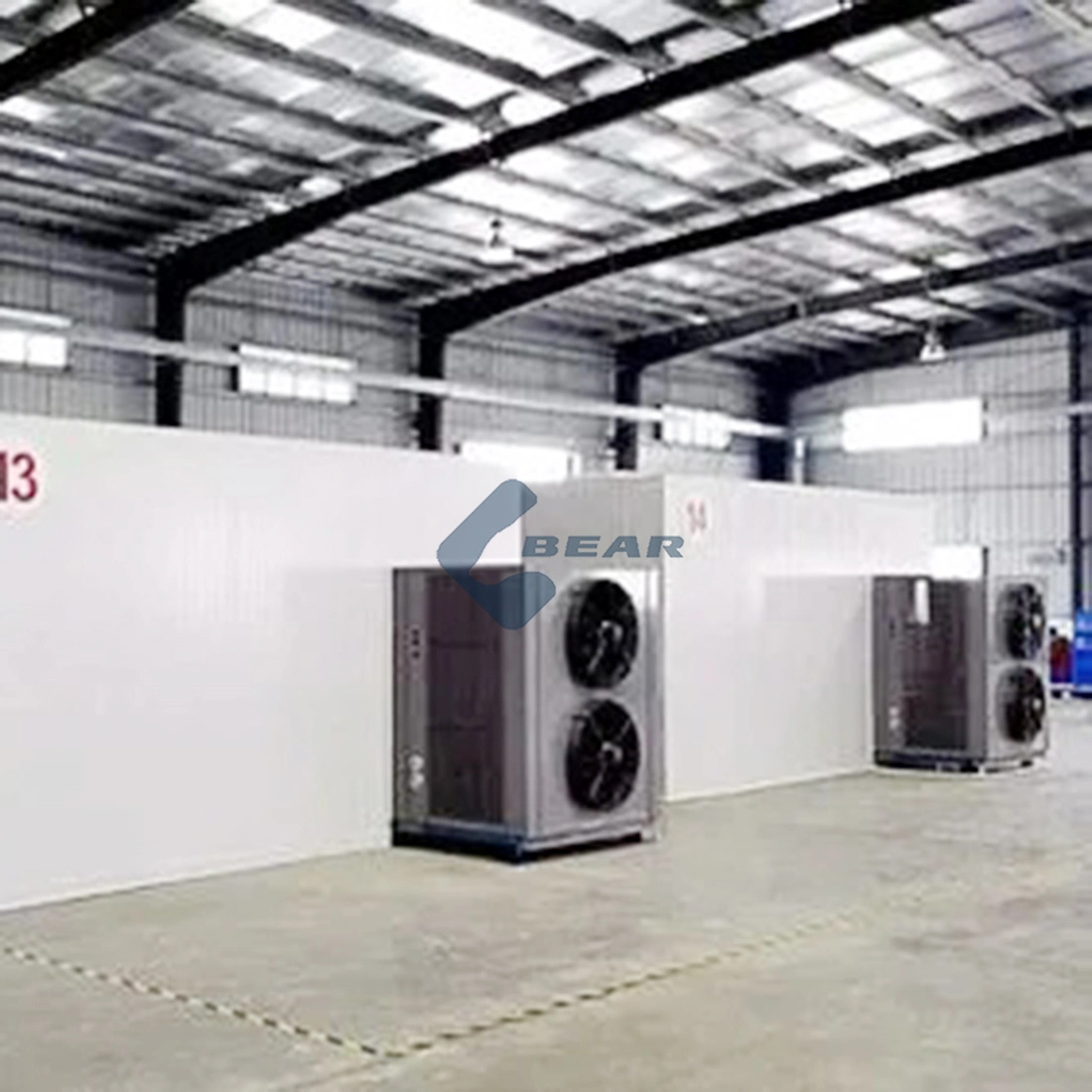

Product display
Edible mushroom dryer
Related parameters
|
Model |
RB-7 |
RB-12 |
RB-20 |
|
Air compressor power |
5.25kw |
10.05kw |
15kw |
|
Electric auxiliary power |
12kw |
18kw |
24kw |
|
Overall size |
4.2*2.2*2.6m |
5.6*3.0*2.6m |
10*3*2.2m |
|
Material |
Oven walls color steel, jacket polyurethane Material contact parts: SUS304 |
||
Working principle
1. The operation is safe and reliable, the temp. the production process is free of open fire, poisoning danger, short circuit, etc;
2. The Operation cost of heat pump is the lowest, the energy-saving effect is remarkable, No emission, Environmental, 24 hours continuously operation automatically;
3. One machine with multiple functions, which can be used for the drying and processing of different materials;
4. Simple operation, PLC accurately controls temperature and humidity to ensure the drying quality of materials;
