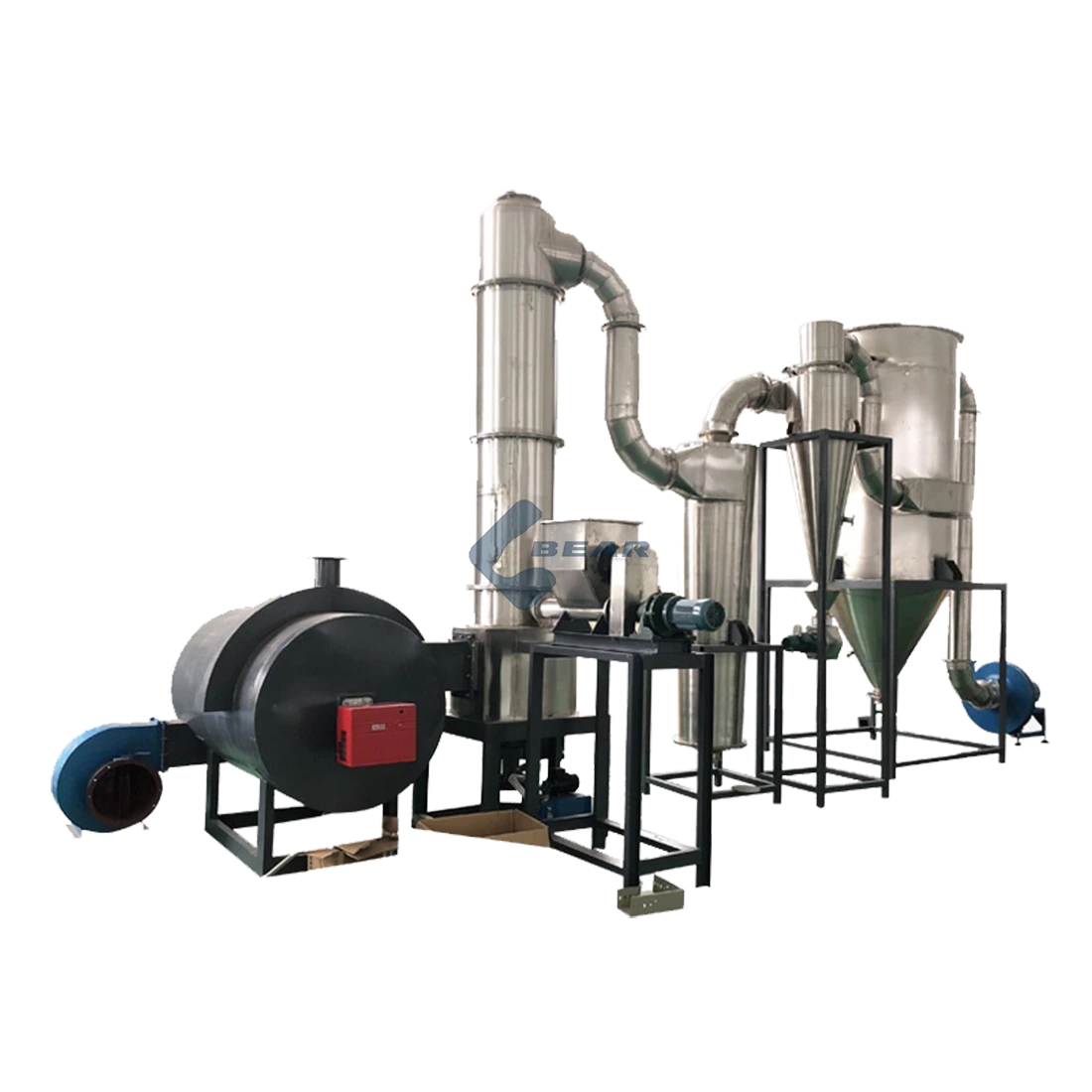

XSG Spin flash dryer
Spin flash dryer enters the bottom of the dryer through the tangential direction of hot air. Driven by the agitator, a powerful rotating wind field is formed. The paste material enters the dryer through the spiral feeder and is impacted by the strong impact of the high-speed rotating impeller. , friction force and shear force; the lumpy material is immediately crushed and fully contacted with the hot air, thereby being heated and dried, and then the dehydrated material rises with the hot air.
Model:XSG-8
Host inner diameter(mm):800
Air volume (m3/h):4450-7550
Evaporated water (kg/h):150-250
Power(kw):65
Height(m):6.5
Covered area(m2):35
Main applications
* Organic Compounds: atrazine (pesticides), cadmium laurate, benzoic acid, germicide, sodium oxalate, cellulose acetate, the organic pigments,and so on;
* Dye: santhraquinone, black iron oxide, indigo pigments, butyric acid, titanium hydroxide, zinc sulfide, various azo intermediate;
* Inorganic: borax, calcium carbonate, hydroxide, copper sulfate, ferric oxide, barium carbonate, antimony trioxide, all kinds of metallic hydroxide,all kinds of heavy metal,salt, synthetic cryolite and so on;
* Food: soy protein, gelatinized starch, distillers' grains, triticin, wheat starch and so on.
Product display
Related parameters
|
Model
|
XSG-2
|
XSG-4
|
XSG-6
|
XSG-8
|
XSG-10
|
XSG-12
|
XSG-16
|
XSG-20
|
|
Host inner diameter(mm)
|
200
|
400
|
600
|
800
|
1000
|
1200
|
1600
|
2000
|
|
Air volume (m3/h)
|
350-500
|
1150-2000
|
2450-4500
|
4450-7550
|
7000-12500
|
10000-20000
|
18000-36000
|
28200-56500
|
|
Evaporated water (kg/h)
|
12-17
|
40-70
|
80*150
|
150-250
|
230-450
|
300-600
|
600-1000
|
1000-1500
|
|
Power(kw)
|
10
|
20
|
40
|
65
|
85
|
105
|
150
|
230
|
|
Height(m)
|
4.0
|
4.8
|
5.8
|
6.5
|
7.1
|
7.8
|
8.8
|
10.1
|
|
Covered area(m2)
|
15
|
20
|
28
|
35
|
40
|
52
|
80
|
150
|
Main features
1. The organic combination of swirling, fluidizing, spraying and crushing classification technologies.
2. High drying intensity, low energy consumption and high thermal efficiency.
3. The equipment is compact, small in size, high in production efficiency, and capable of continuous production, realizing small equipment and large production.
4. The material residence time is short, the finished product quality is good, and it can be used for drying heat-sensitive materials.
5. Negative pressure or slightly negative pressure operation, good sealing, high efficiency, reducing environmental pollution.
