Product details of the vegetable dryer machine


Quick Overview

The manufacture of BEAR vegetable dryer machine meets a very high hygienic standard. The product has no such nature that the food is in danger after dehydration because it is tested for many times to guarantee the food fits for human consumption. This product is super easy to clean. There are no dead corners or many slits which easy to gather residues and dust. vegetable dryer machine can be used in multiple industries and fields. This product only consumes little power. Users will find out how energy efficient it is after they receive the electricity bills.


Product Information

vegetable dryer machine has been substantially improved in a scientific way, as shown in the following aspects.

Main applications

Yeast powder dryer is widely used in the drying of liquid or viscous materials in chemical, pharmaceutical, food, metallurgical and other industries.

Applications include:

1. Chemical industry: used to dry various chemical raw materials, such as amino acids, organic acids, organic esters, etc.

2. Pharmaceutical industry: used to dry various pharmaceutical raw materials, such as antibiotics, vitamins, hormones, etc.

3. Food industry: used to dry various food raw materials, such as starch, protein, yogurt powder, etc.

4. Metallurgical industry: used to dry various metal powders, ores, iron powder, etc.

Yeast powder drying mahcine
Yeast powder dryer

Working principle

Yeast powder dryer is a continuous operation equipment that dries the liquid-phase material or strip-shaped material attached to the outer wall of the cylinder by means of heat conduction through a rotating cylinder.

The material liquid to be dried flows into the material receiving trough of the drum dryer from the elevated tank. The drying drum is driven by the transmission device, and the material is formed into a material film on the wall of the drum by the film distribution device. The cylinder is continuously heated, and the moisture in the material film is vaporized by the heat transfer from the cylinder wall, and then the material is scraped off by a scraper, and conveyed to the storage tank by a screw for packaging. It has high thermal efficiency and can be operated continuously, so it is widely used in drying liquid materials or strip materials, and is more suitable for paste and viscous materials.

Single drum dryer: used for drying materials in the form of solution or slurry or suspension. The method of cloth membrane is usually immersion or spraying.

Double cylinder dryer: The same set of reduction transmission device, through the meshing of a pair of gears with the same modulus and number of teeth, makes two sets of drums with the same diameter rotate relative to each other. According to the position of the film cloth, it is divided into two types: the opposite roll type and the same groove type.

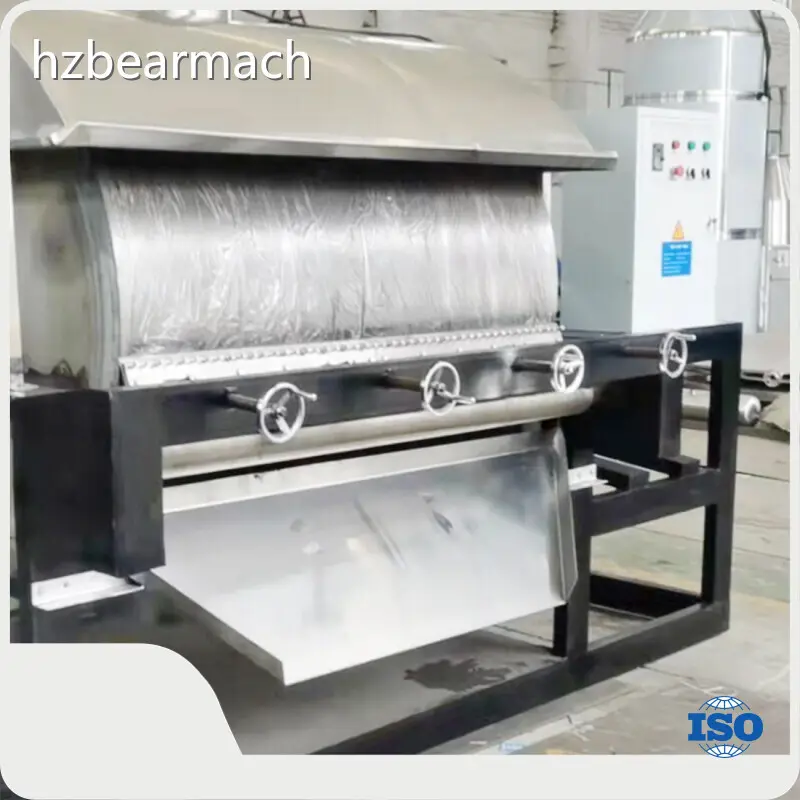

Product display

Yeast powder drying equipment
Yeast powder drying equipment
Yeast powder dryer machine
Yeast powder dryer machine
Yeast powder dryer equipment
Yeast powder dryer equipment

Yeast powder dryer

Related parameters

Model

Roller size(mm)

Effective heating area(m2)

Drying capacity(kg/h)

Steam consumption(kg/h)

Power(kw)

Dimensions(mm)

Weight(kg)

HG-600

Φ600×800

1.12

40-70

100-175

1.1

1700×800×1500

850

HG-700

Φ700×1000

1.65

60-90

150-225

2.05

2100×1000×1800

1210

HG-800

Φ800×1200

2.26

90-130

225-325

3.75

2500×1100×1980

1700

HG-1000

Φ1000×1400

3.3

130-190

325-475

4.75

2700×1300×2250

2100

HG-1200

Φ1200×1500

4.24

160-250

400-625

4.75

2800×1500×2450

2650

HG-1400

Φ1400×1600

5.28

210-310

525-775

6.25

3150×1700×2800

3220

HG-1600

Φ1600×1800

6.79

270-400

675-1000

6.25

3350×1900×3150

4350

HG-1800

Φ1800×2000

8.48

330-500

825-1250

8.6

3600×2050×3500

5100

HG-1800A

Φ1800×2000

10.6

420-630

1050-1575

8.6

4100×2050×3500

6150

6 (11)

Features

 High thermal efficiency: Most of the heat supplied in the cylinder is used for moisture gasification, and the thermal efficiency can be as high as 70~80%.

High drying rate: The heat transfer and mass transfer process of the wet material film on the wall of the cylinder is in the same direction from the inside to the outside, and the temperature gradient is large, so that the surface of the material film maintains a high evaporation intensity, generally up to 30kg/㎡h .

The drying quality of the product is stable: the heating method of the drum is easy to control, the temperature inside the drum and the heat transfer rate of the partition wall can be kept relatively stable, so that the material film can be dried under a stable heat transfer state, and the quality of the product can be guaranteed.

Wide range of application: The liquid phase material adopts drum drying, which has fluidity, adhesion and stability to heat. The form of the material can be solution, suspension, emulsion, sol, etc.

The production capacity of a single machine is limited by the size of the cylinder: the drying area of a general drum dryer should not be too large. The drying area of a single cylinder rarely exceeds 12㎡, and its processing capacity is generally 50-1000kg/h.

Hot Tags:Yeast powder dryer,Drum scraper dryer, Starch dryer,Yogurt powder dryer,Cassava flour dryer, Rice flour dryer,Oatmeal dryer
