Fruit and Vegetable Dryer Machine Fruit and Vegetable Dryer Machine Manufacture
Product details of the fruit and vegetable dryer machine
Product Overview
BEAR fruit and vegetable dryer machine is designed with layers of food trays which are made of BPA-free and non-toxic materials. The food trays are designed with moveable function for easy operation. The food dehydrated by this product contains as much nutrition as it is before dehydration. The overall temperature is appropriate for most food especially for food that contains heat-sensitive nutrients. The product helps add more food choice for people recipe. People who bought this product agree that they find a new way to change the simple fruits and vegetables into delicious and healthy snacks.
Product Description
Choose our fruit and vegetable dryer machine for the following reasons.
Main application
The mesh-belt dryer is a flow type continuous working dryer. It’s for drying sheet, strip, granular materials with good permeability, particularly suitable for high moisture content materials which doesn’t allow to be dried with high temperature.
Working principle
The materials are evenly laid on the slow moving mesh-belt, which is drove by the transmission chain. Under the centrifugal force of the fan, hot air circulates in the drying chamber through the heating tube, convection wall, and air channel. The dry and hot air absorbs water in the materials, continuously turning into hot humid air and discharge from the humidity-discharging device. With the continuous decrease of moisture, the material gradually dried. The mesh-belt moves slowly, its speed can be adjusted freely according to the humidity of material. The dried materials are continuously put into the collector.

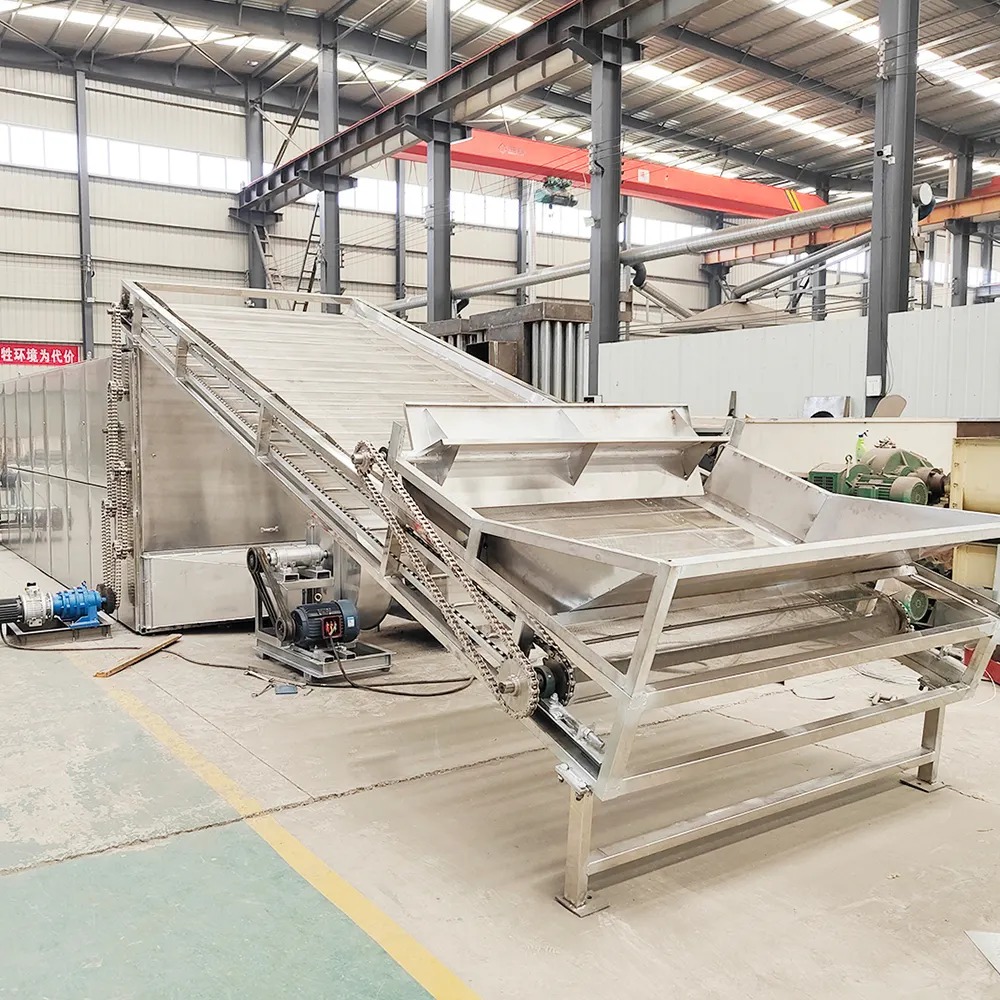

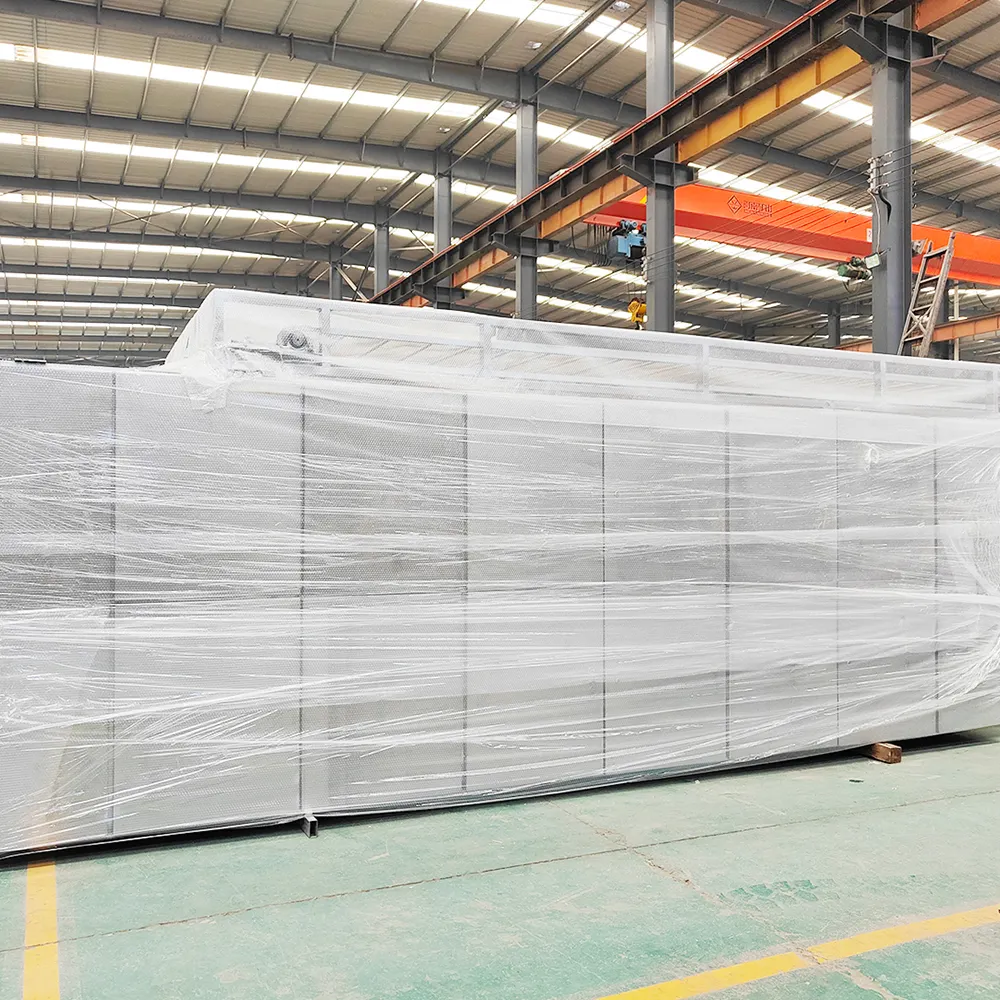

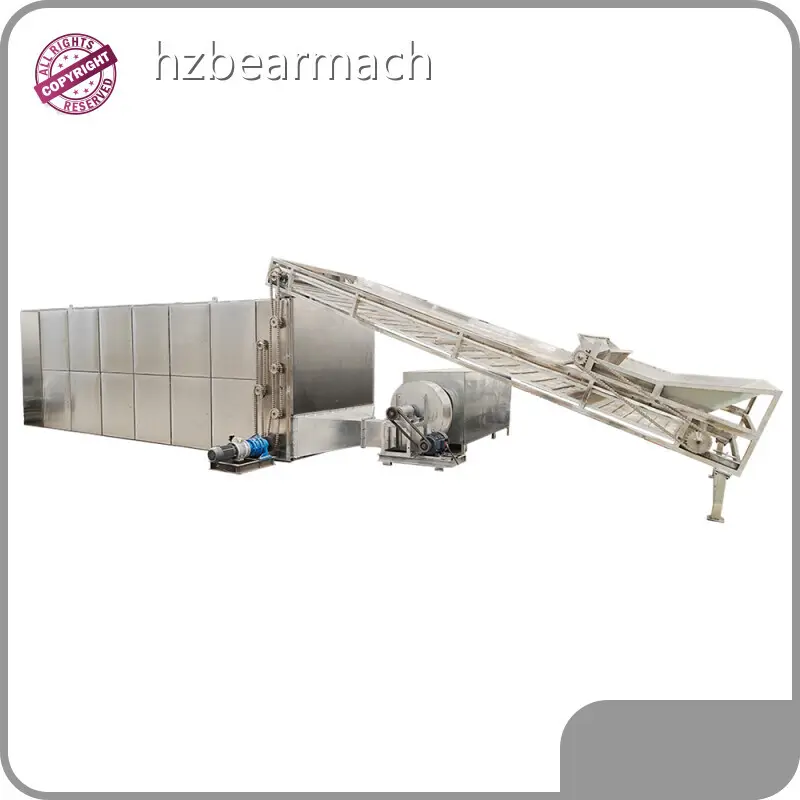

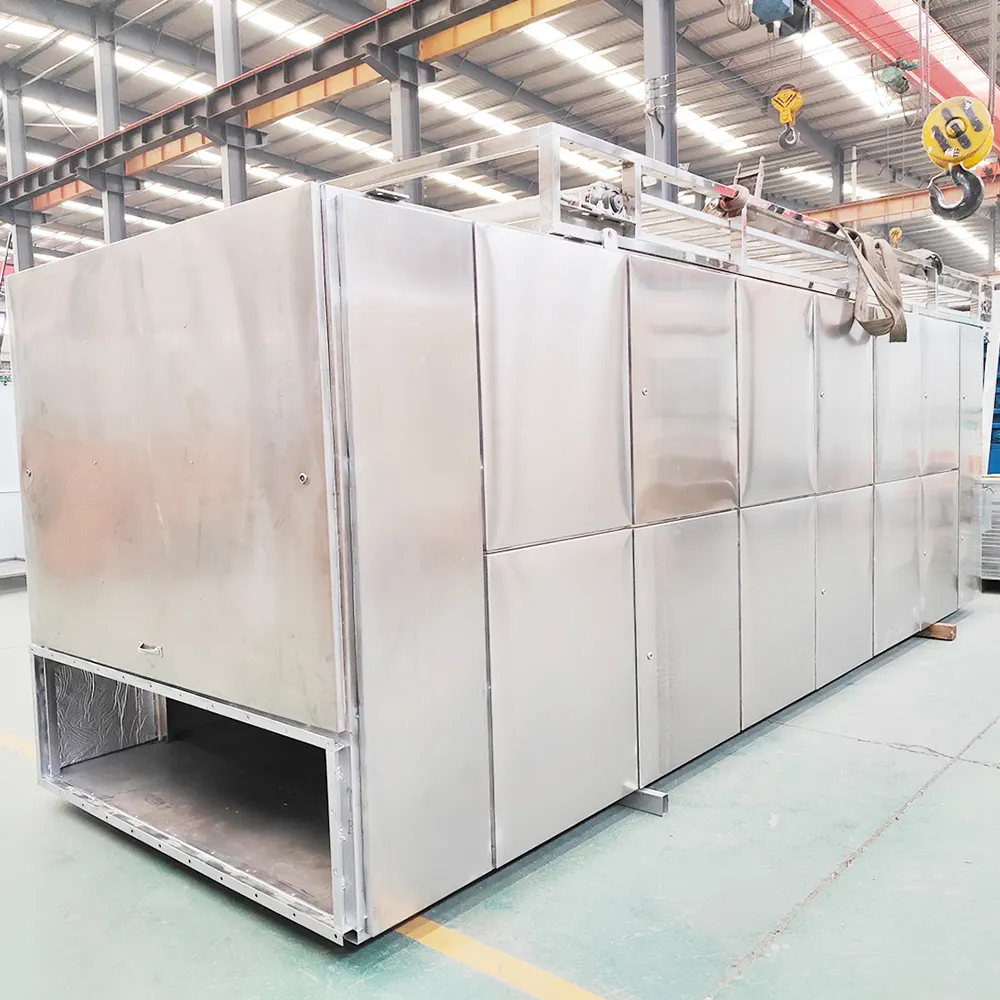

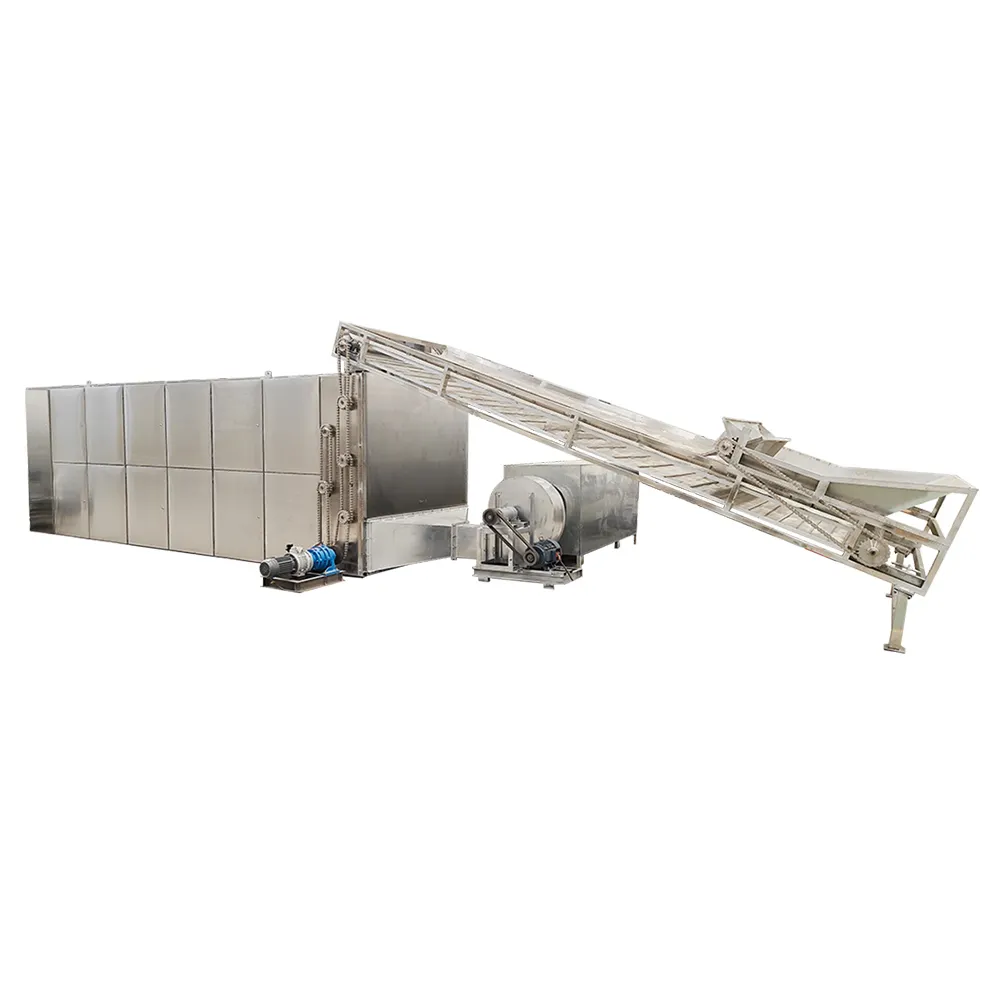

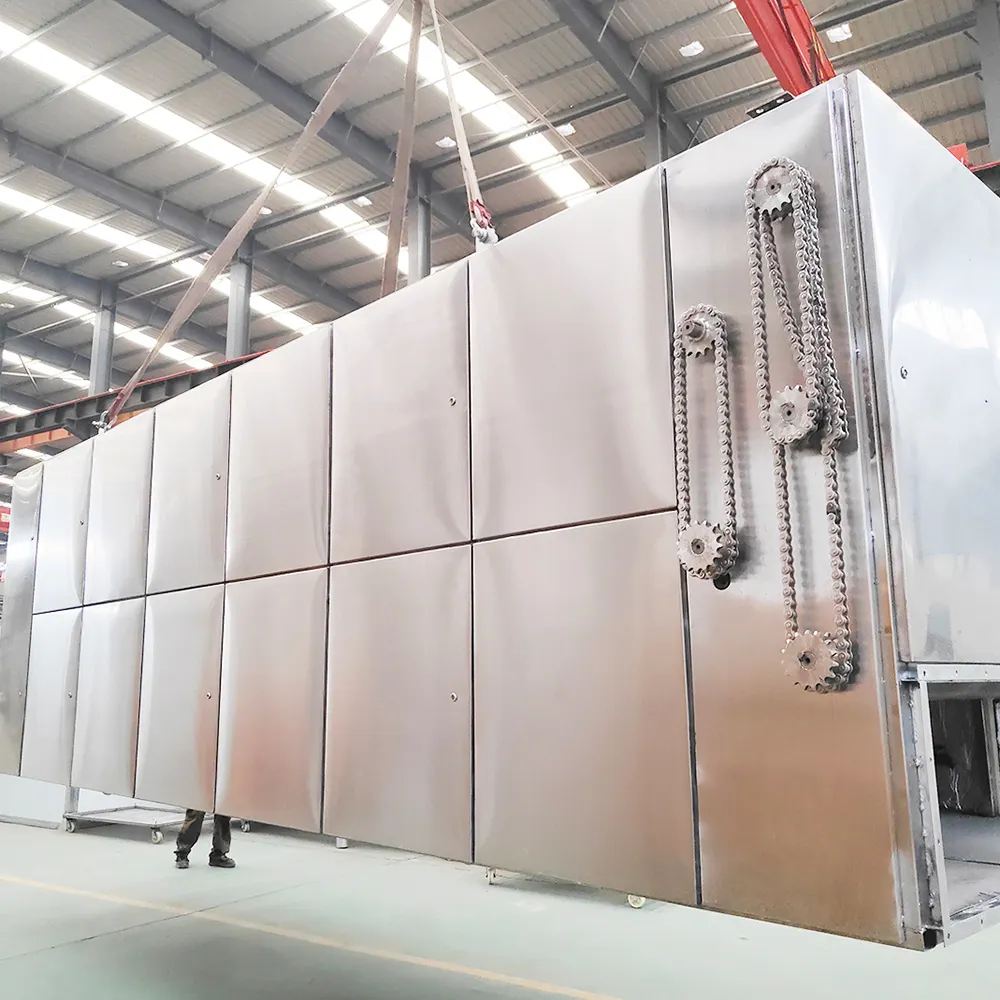

Product display
Related parameters
|
Model |
DW-2-6 |
DW-2-7 |
DW-2-8 |
DW-2-9 |
DW-2-10 |
DW-2-12 |
DW-2-15 |
|
Dimension(m) |
6*2*2.5 |
7*2*2.5 |
8*2*2.5 |
9*2*2.5 |
10*2*2.5 |
12*2*2.5 |
15*2*2.5 |
|
Drying cycle(h) |
2-4 |
||||||
|
Capacity |
12T/24h |
15T/24h |
20T/24h |
22T/24h |
25T/24h |
30T/24h |
33T/24h |
|
Power(kW) |
18.5 |
18.5 |
22.2 |
27.5 |
27.5 |
35.5 |
35.5 |
|
Mesh belt speed regulation |
(Infinitely variable speed) (Electromagnetic speed regulation) |
||||||
Main features
This series of drying machine has advantages of fast drying speed, high evaporation strength, good product quality, low labor intensity, large output, etc. The applicability is wide and can dry various materials. Mesh belt dryer is mainly composed of transmission system, frame, insulation, hot air circulation system, humidity-discharging device, electric control system and other parts. The machine is with low noise, smooth operation, easy installation and maintenance, automatic temperature control.
