Custom Industrial Food Dryer Machine BEAR
Main application
Fruit and vegetable dryer is one of the major equipments in manufacturing Chinese herbal troches. This machine is widely applicable for heating and dehumidifying the materials in pharmacy, chemical, foodstuff, light industry and heavy industry.
Working principle
Electric is used as the heat source. The axial flow fan is used for convectively exchanging the air. The hot air transfers the heat to the material through the drying tray. The fresh air enters the drying box through air inlet hole for making-up. The humid air is exhausted from the dehumidifying hole, and in this way to keep the proper relative humidity in the drying box.

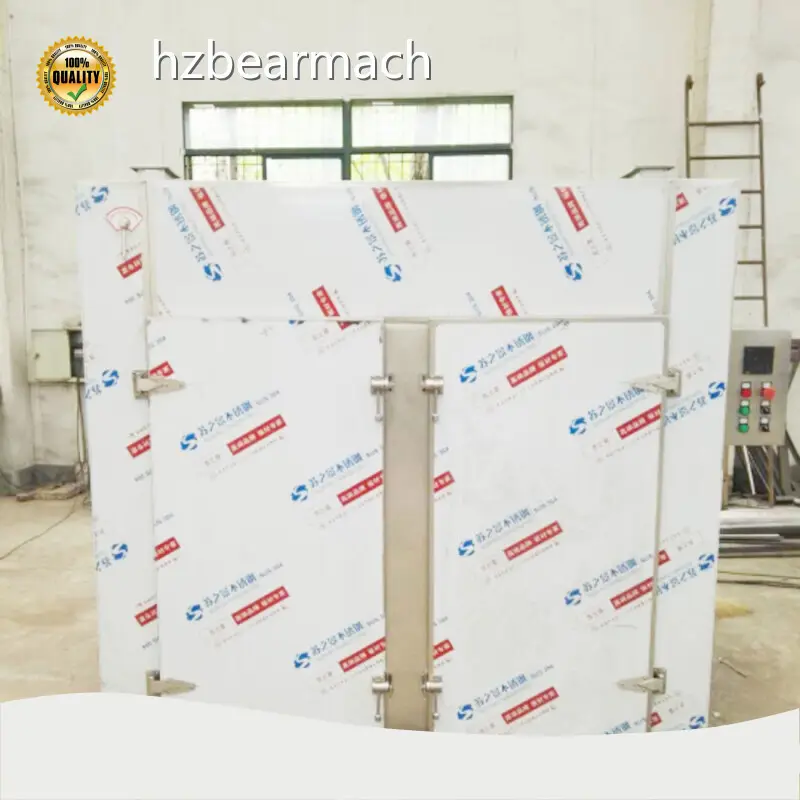

Product display
Fruit & Vegetable
Related parameters
|
Model |
BHX-O |
BHX-I |
BHX-II |
BHX-III |
BHX-IV |
|
Capacity(kg/batch) |
120 |
240 |
480 |
720 |
960 |
|
Heating power(kw) |
14 |
24 |
48 |
72 |
96 |
|
Power of air blower(kw) |
0.45 |
0.45 |
0.9 |
1.35 |
1.8 |
|
Steam consumption(kg/h) |
10 |
18 |
36 |
54 |
72 |
|
Radiator area(m2) |
10 |
20 |
40 |
80 |
100 |
|
Volume of wind(m3/h) |
3450 |
3450 |
6900 |
10350 |
13800 |
|
Amount of trays |
24 |
48 |
96 |
144 |
196 |
|
Amount of Trolleys |
1 |
2 |
4 |
6 |
8 |
|
Dimension(mm) |
1430×1350 ×2100 |
2430×1350 ×2300 |
2430×2350 ×2300 |
2430×3220 ×2300 |
4460×2200 ×2290 |
|
Weight(kg) |
600 |
930 |
1400 |
1900 |
2300 |
Main features
Most of the hot winds are cycled in the box, and the entire cycle is closed. It has high transmission efficiency, and can save energy. By the forced ventilation and adjustable air distributing plate, the upper and lower temperature difference in the oven can be reduced. It is characterized by low noise, stable operation, automatic temperature-control and convenient maintenance.
Hot Tags:Fruit and vegetable dryer, Hot air circulation oven, Seafood dryer, Traditional Chinese medicine dryer, Sausages and bacon dryer, Plastic resins dryer, Electrical components dryer, Herb dryer
Company Advantages
· The materials of BEAR industrial food dryer machine have passed various kinds of tests. These tests are fire resistance testing, mechanical testing, formaldehyde content testing, and stability & strength testing.
· It is not vulnerable to get pilling. The product will go through the antistatic and softness treatment to reduce its coefficient of friction.
· It has attracted much attention in the market and has wide development prospects.
Company Features
· Now Hangzhou Bear Machinery Co.,Ltd. has received much more attention for its well-known industrial food dryer machine.
· We have a proficient and skilled manufacturing team. By constantly improving manufacturing methods, they are able to address quality, cost, and delivery issues in a flexible manner.
· Every stage of our operations, we try to eliminate waste. We have focused on finding ways to reduce, reuse or recycle to divert waste from landfills.
Application of the Product
The industrial food dryer machine produced by is widely used in industry.
We are willing to understand the real needs of our customers. Then, we will provide the best solutions to their needs.
