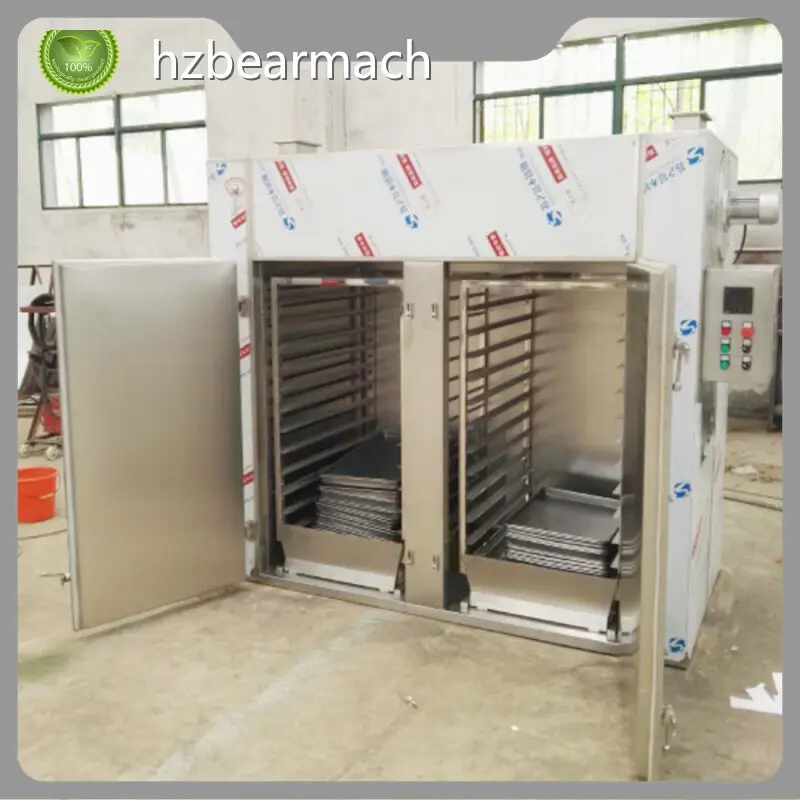

Custom Fish Dryer Machine BEAR
Product details of the fish dryer machine
Product Information
In the production of BEAR fish dryer machine, all of the components and parts meet the food grade standard, especially the food trays. The trays are sourced from reliable suppliers who hold international food safety system certification. Made of food-grade materials, the product is able to dehydrate various kinds of food without the worry of released chemical substances. For example, acidic food can be handled in it too. Having no need to sun drying to a certain extent, the food can be directly put into this product to dehydrate without the worry that the water vapor will damage the product.
Main application
Seafood dryer is one of the major equipments in manufacturing Chinese herbal troches. This machine is widely applicable for heating and dehumidifying the materials in pharmacy, chemical, foodstuff, light industry and heavy industry.
Working principle
Electric is used as the heat source. The axial flow fan is used for convectively exchanging the air. The hot air transfers the heat to the material through the drying tray. The fresh air enters the drying box through air inlet hole for making-up. The humid air is exhausted from the dehumidifying hole, and in this way to keep the proper relative humidity in the drying box.
Product display
Seafood
Related parameters
|
Model |
BHX-O |
BHX-I |
BHX-II |
BHX-III |
BHX-IV |
|
Capacity(kg/batch) |
120 |
240 |
480 |
720 |
960 |
|
Heating power(kw) |
14 |
24 |
48 |
72 |
96 |
|
Power of air blower(kw) |
0.45 |
0.45 |
0.9 |
1.35 |
1.8 |
|
Steam consumption(kg/h) |
10 |
18 |
36 |
54 |
72 |
|
Radiator area(m2) |
10 |
20 |
40 |
80 |
100 |
|
Volume of wind(m3/h) |
3450 |
3450 |
6900 |
10350 |
13800 |
|
Amount of trays |
24 |
48 |
96 |
144 |
196 |
|
Amount of Trolleys |
1 |
2 |
4 |
6 |
8 |
|
Dimension(mm) |
1430×1350 ×2100 |
2430×1350 ×2300 |
2430×2350 ×2300 |
2430×3220 ×2300 |
4460×2200 ×2290 |
|
Weight(kg) |
600 |
930 |
1400 |
1900 |
2300 |
Main features
Most of the hot winds are cycled in the box, and the entire cycle is closed. It has high transmission efficiency, and can save energy. By the forced ventilation and adjustable air distributing plate, the upper and lower temperature difference in the oven can be reduced. It is characterized by low noise, stable operation, automatic temperature-control and convenient maintenance.
Hot Tags:Seafood dryer, Hot air circulation oven, Seafood dryer, Traditional Chinese medicine dryer, Sausages and bacon dryer, Plastic resins dryer, Electrical components dryer, Herb dryer
