Product details of the dry grinder machine price
Quick Overview
In order to offer safe dehydrated foods, BEAR dry grinder machine price is produced conforming to high levels of hygienic standards. This production process is inspected strictly by the quality control department who all think highly of food quality. The product will not contaminate the food during the dehydration. There is a defrosting tray to collect the water vapor which may drop to the food. The product offers a good way to prepare healthy food. Most people confess that they used to consume fast food and junk food in their busy daily life, while dehydrating food by this product has greatly reduced their chances to eat junk food.
Product Introduction
The following are the dry grinder machine price's details presented to you by And it can help you better understand the product details.
Main application
BHX Hot air circulating oven is one of the major equipments in manufacturing Chinese herbal troches. This machine is widely applicable for heating and dehumidifying the materials in pharmacy, chemical, foodstuff, light industry and heavy industry.
Working principle
Electric is used as the heat source. The axial flow fan is used for convectively exchanging the air. The hot air transfers the heat to the material through the drying tray. The fresh air enters the drying box through air inlet hole for making-up. The humid air is exhausted from the dehumidifying hole, and in this way to keep the proper relative humidity in the drying box.

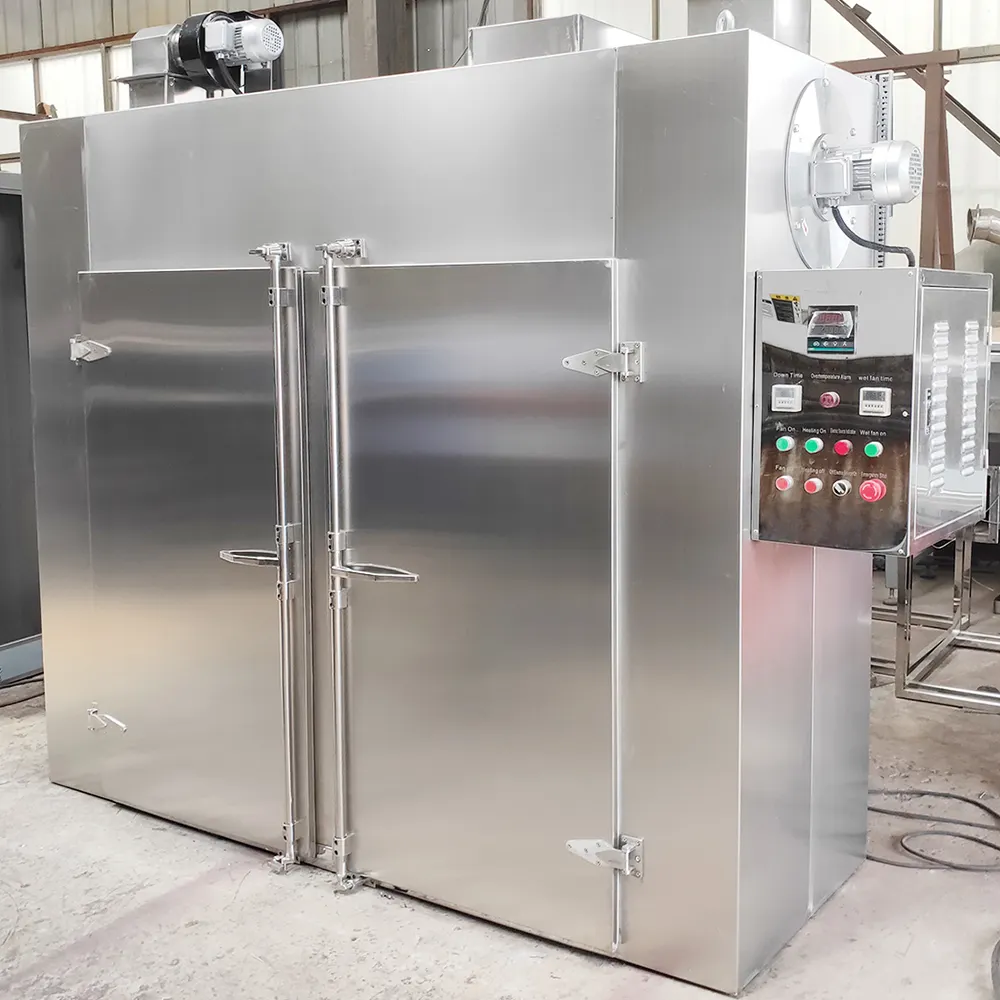

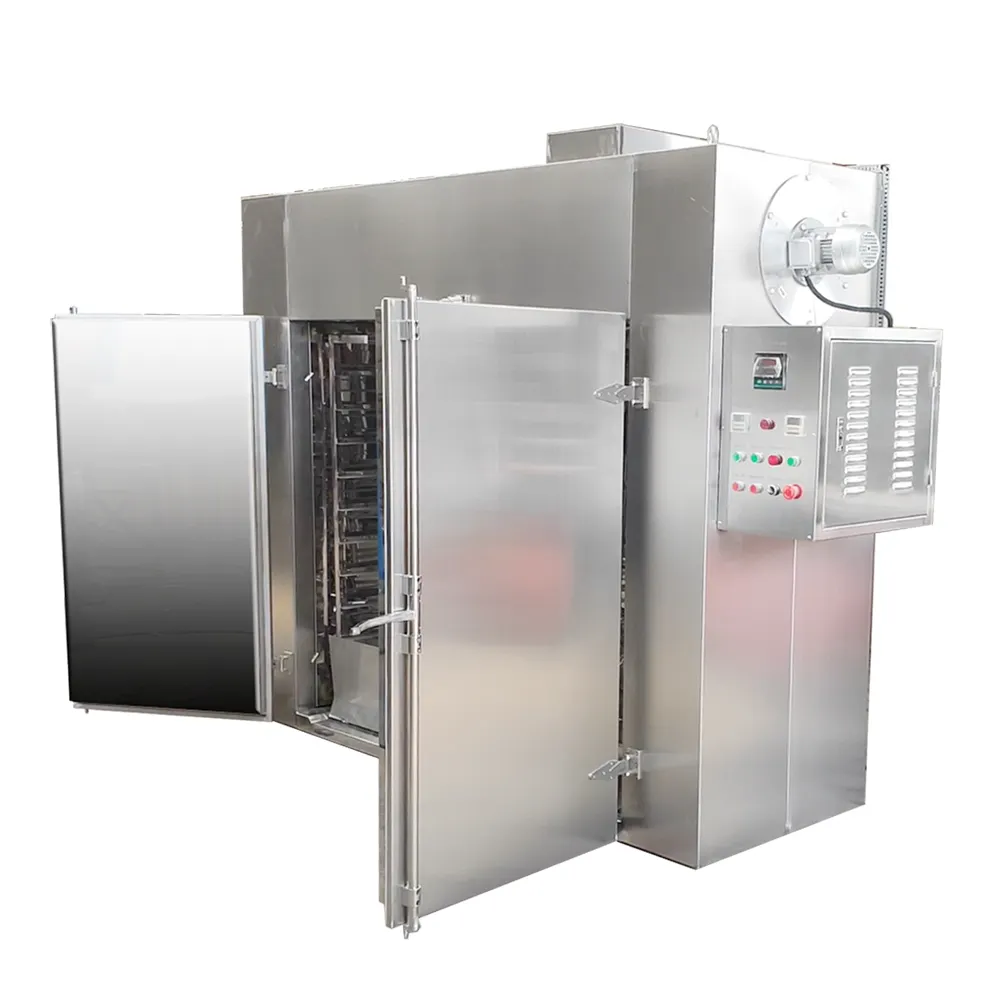

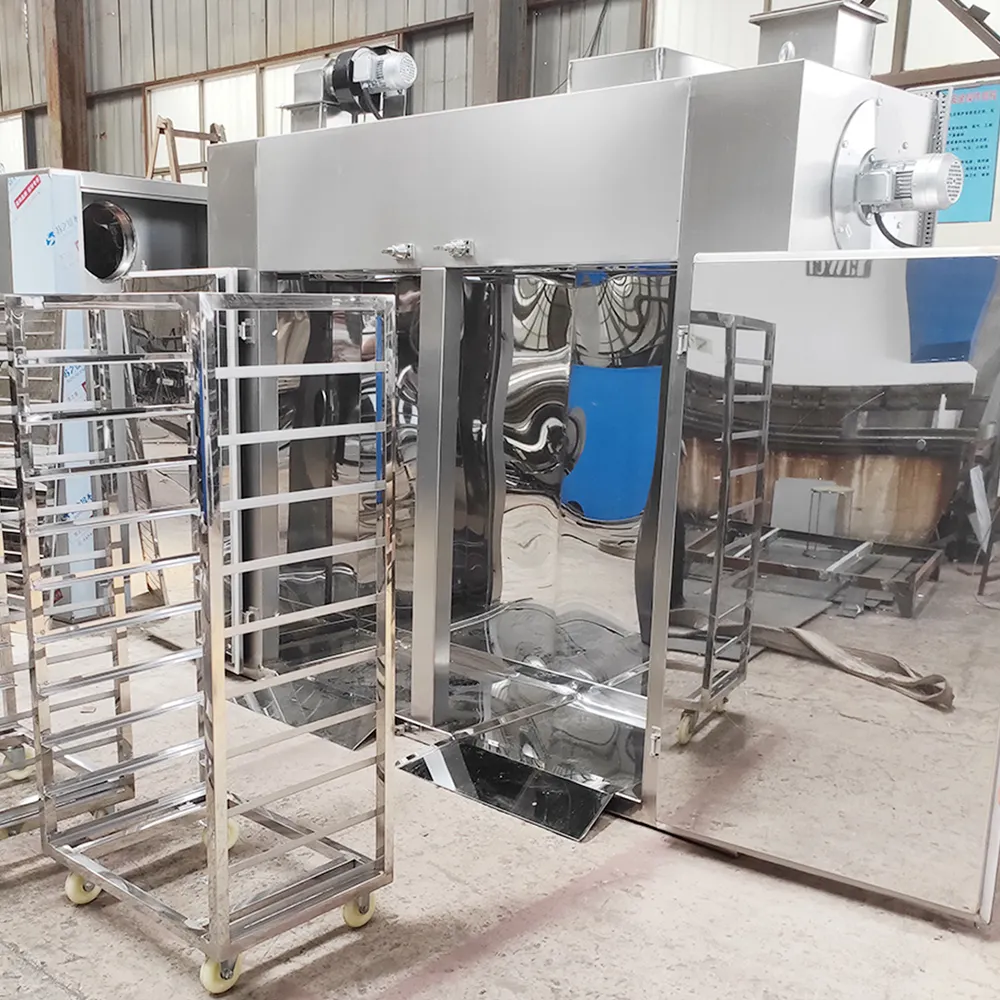

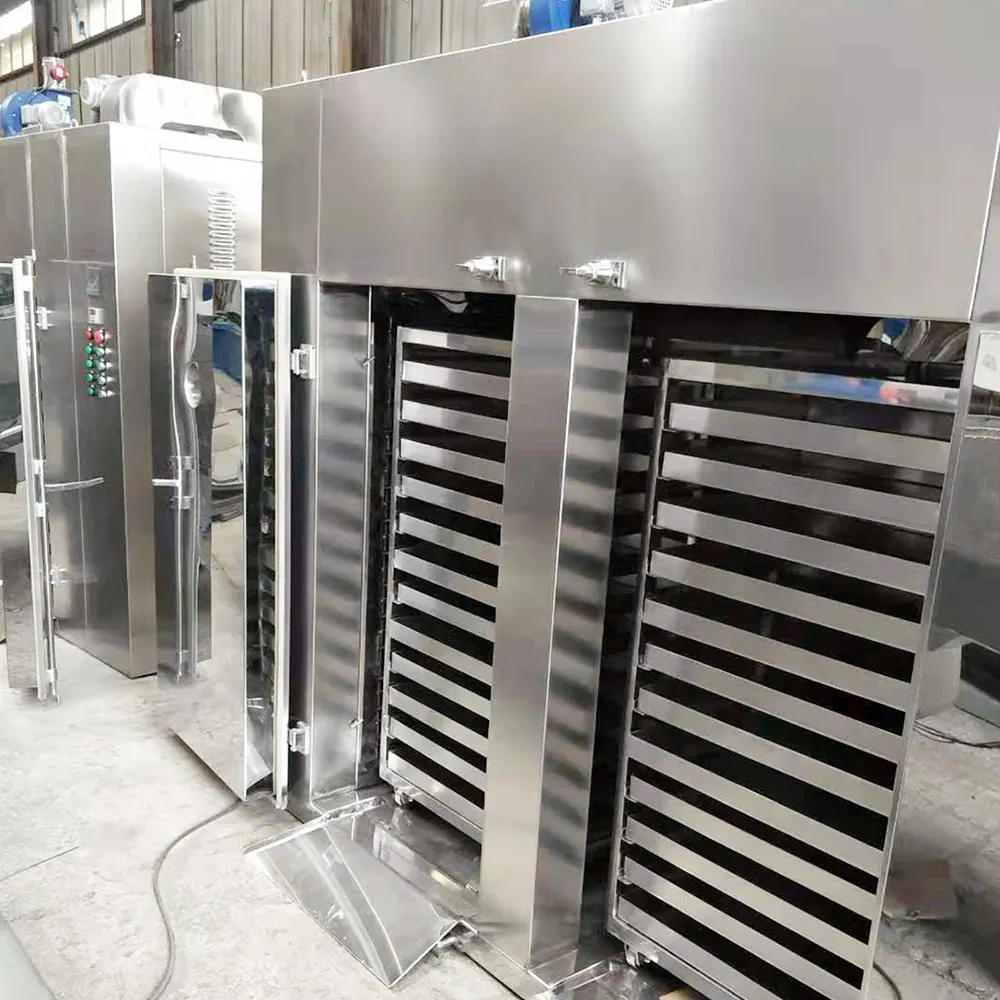

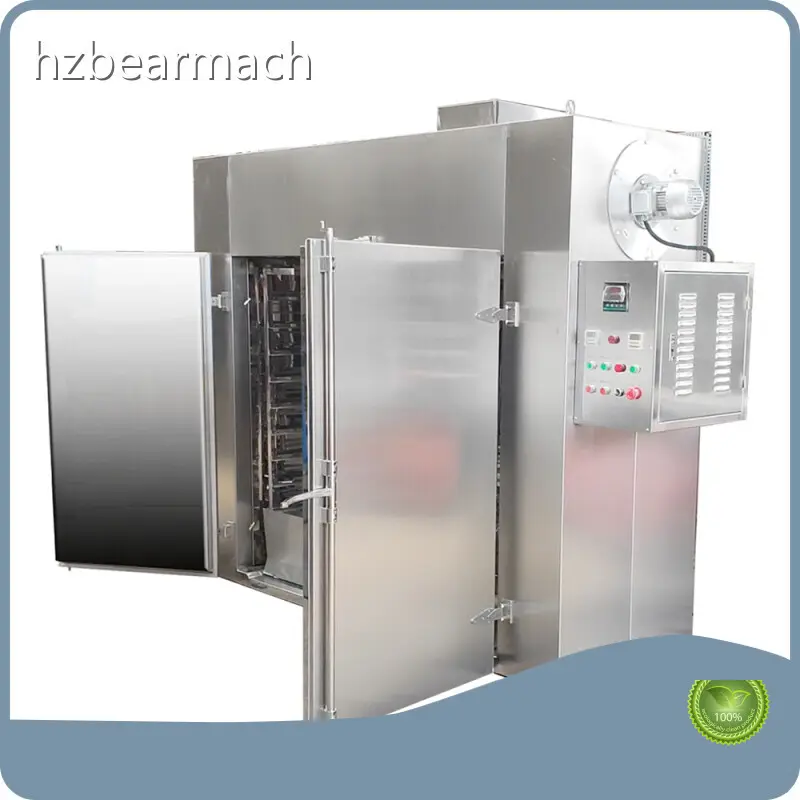

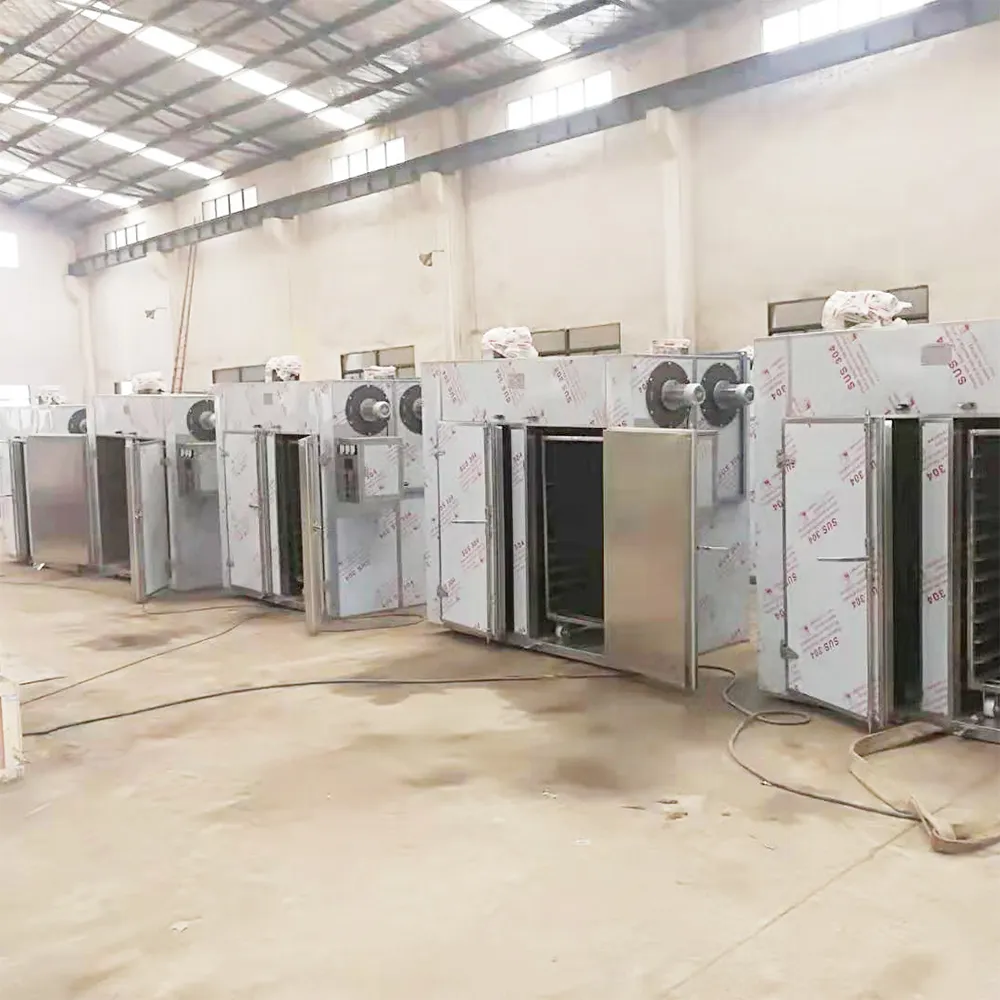

Product display
Related parameters
Model |
BHX-O |
BHX-I |
BHX-II |
BHX-III |
BHX-IV |
Capacity(kg/batch) |
120 |
240 |
480 |
720 |
960 |
Heating power(kw) |
14 |
24 |
48 |
72 |
96 |
Power of air blower(kw) |
0.45 |
0.45 |
0.9 |
1.35 |
1.8 |
Steam consumption(kg/h) |
10 |
18 |
36 |
54 |
72 |
Radiator area(m2) |
10 |
20 |
40 |
80 |
100 |
Volume of wind(m3/h) |
3450 |
3450 |
6900 |
10350 |
13800 |
Amount of trays |
24 |
48 |
96 |
144 |
196 |
Amount of Trolleys |
1 |
2 |
4 |
6 |
8 |
Dimension(mm) |
1430×1350 ×2100 |
2430×1350 ×2300 |
2430×2350 ×2300 |
2430×3220 ×2300 |
4460×2200 ×2290 |
Weight(kg) |
600 |
930 |
1400 |
1900 |
2300 |
Main features
Most of the hot winds are cycled in the box, and the entire cycle is closed. It has high transmission efficiency, and can save energy. By the forced ventilation and adjustable air distributing plate, the upper and lower temperature difference in the oven can be reduced. It is characterized by low noise, stable operation, automatic temperature-control and convenient maintenance.
Hot Tags:Hot air circulation oven, Seafood dryer, Traditional Chinese medicine dryer, Sausages and bacon dryer, Plastic resins dryer, Electrical components dryer, Herb dryer
Company Information
Hangzhou Bear Machinery Co.,Ltd. is quite professional in the production process of dry grinder machine price. We constantly invest in our production facilities and upgrade them each year. The purposes of these facilities are to improve operational efficiency for our orders and raise productivity. Encouraging the spirit and boosting dry grinder machine price industry development are the passionate source of BEAR. Ask!
If you want to purchase our products in bulk, feel free to contact us.
