RY Herb humidifying machine
By artificially push the materials in the feedbox into the square body, manually close the door. Pump inner air into vacuum state, maintaining the vacuum degree in the oven, and keeping the high pressure steam in material softening time. Then release the steam, stop working, manually open the door. Temperature be controlled in 40 minutes to 1 hour by the temperature control instrument according to different materials.
Model: RY-500
Colume of box(L): 500
Steam pressure(Mpa): Normal
Time control range(min): 0-99
Power(kw): 1.5
Main applications
It is suitable for rapidly softening and infiltrating herbs, as well as farm and sideline products.
Main features
It adopts the new seal structure for good open the door quickly, the square shape vessel’s effective volume fraction reaches up to 100%. Starting (valve opening and closing) window seal, pull out the vacuum, the vacuum degree control, steam charge, close-down and other processes are completely automatically. This machine is in line with the requirement of GMP.

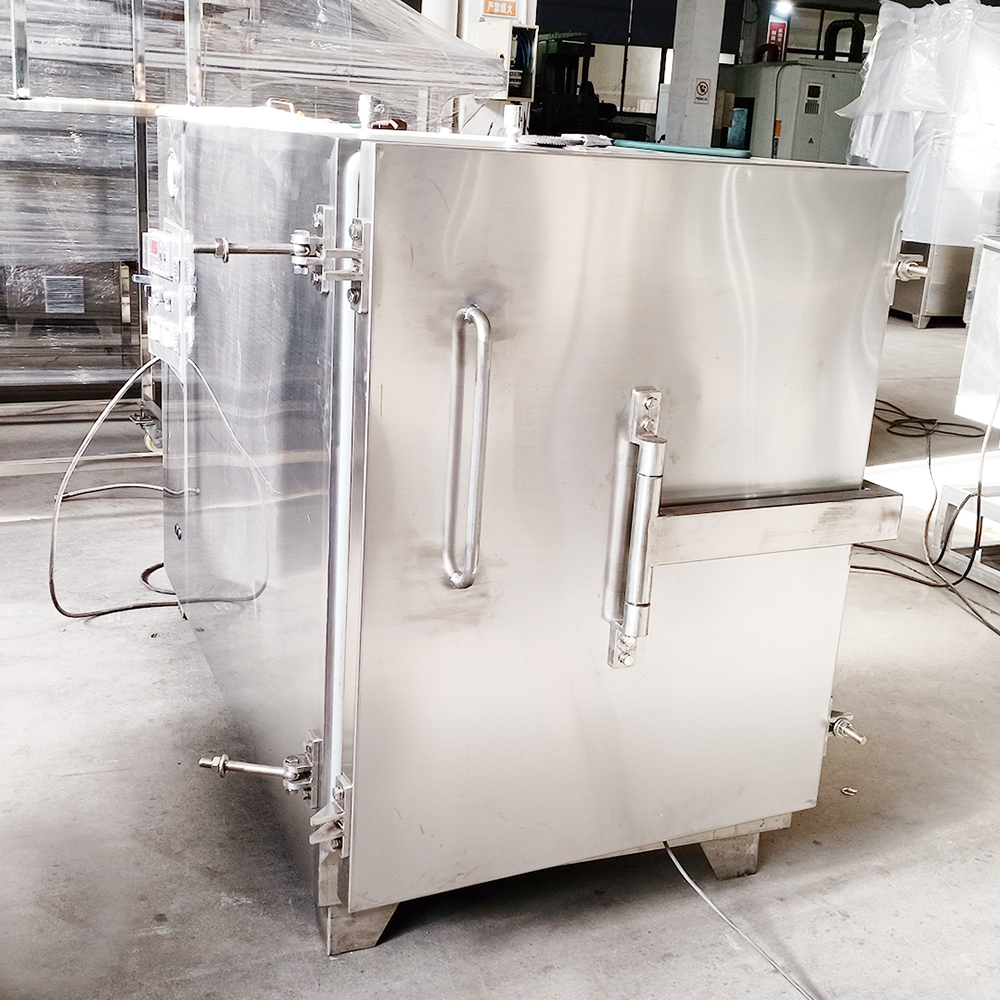

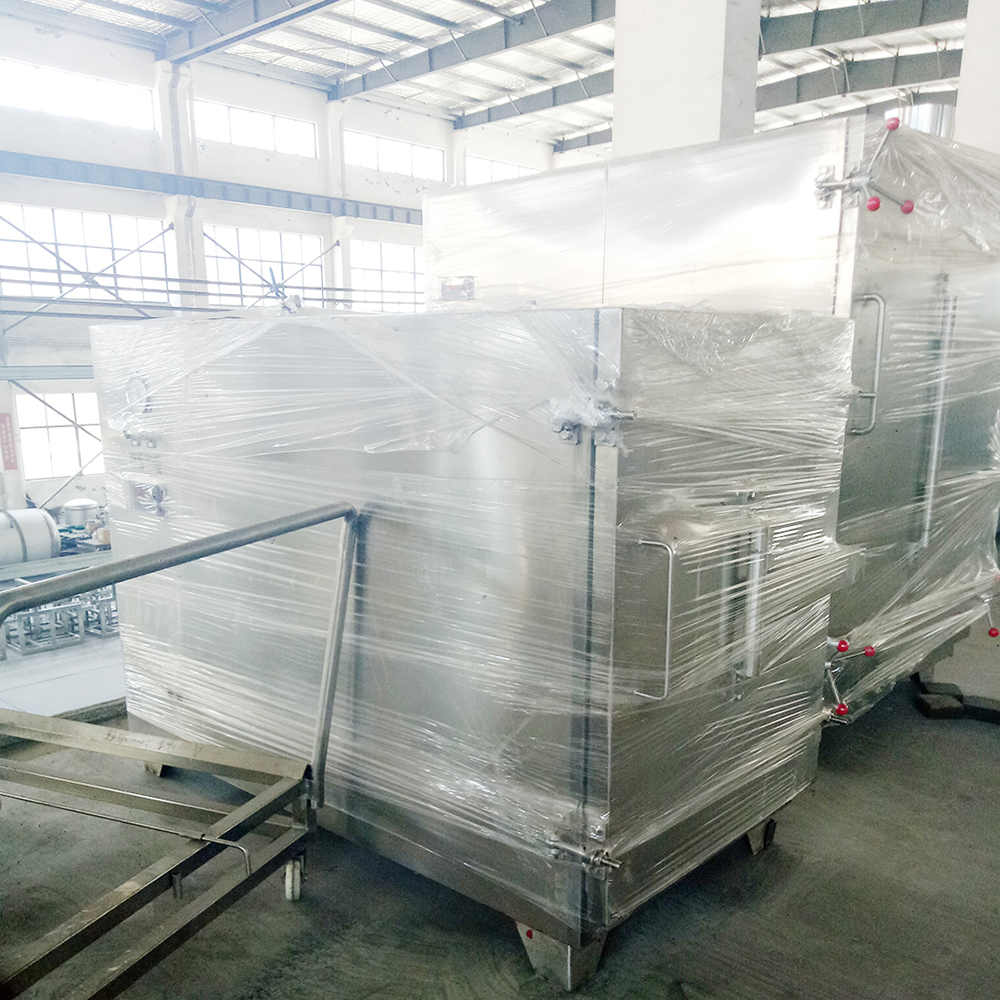

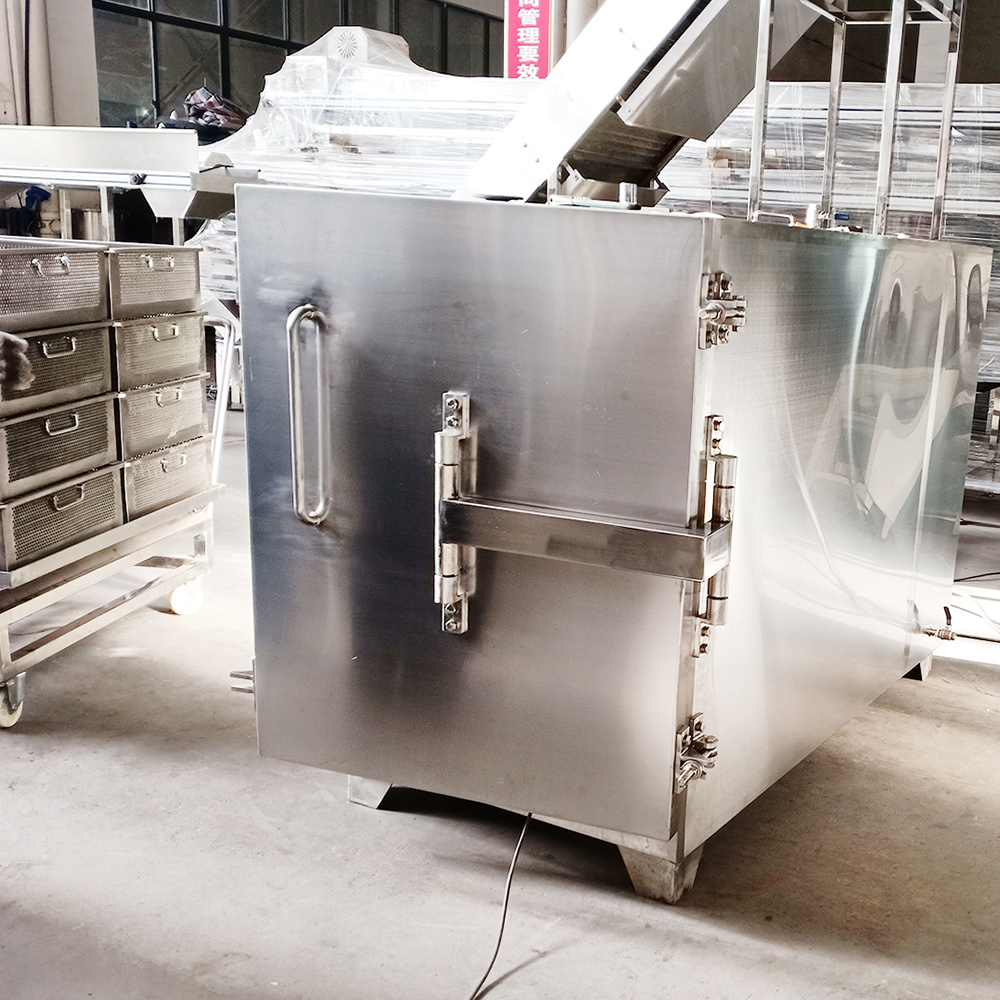

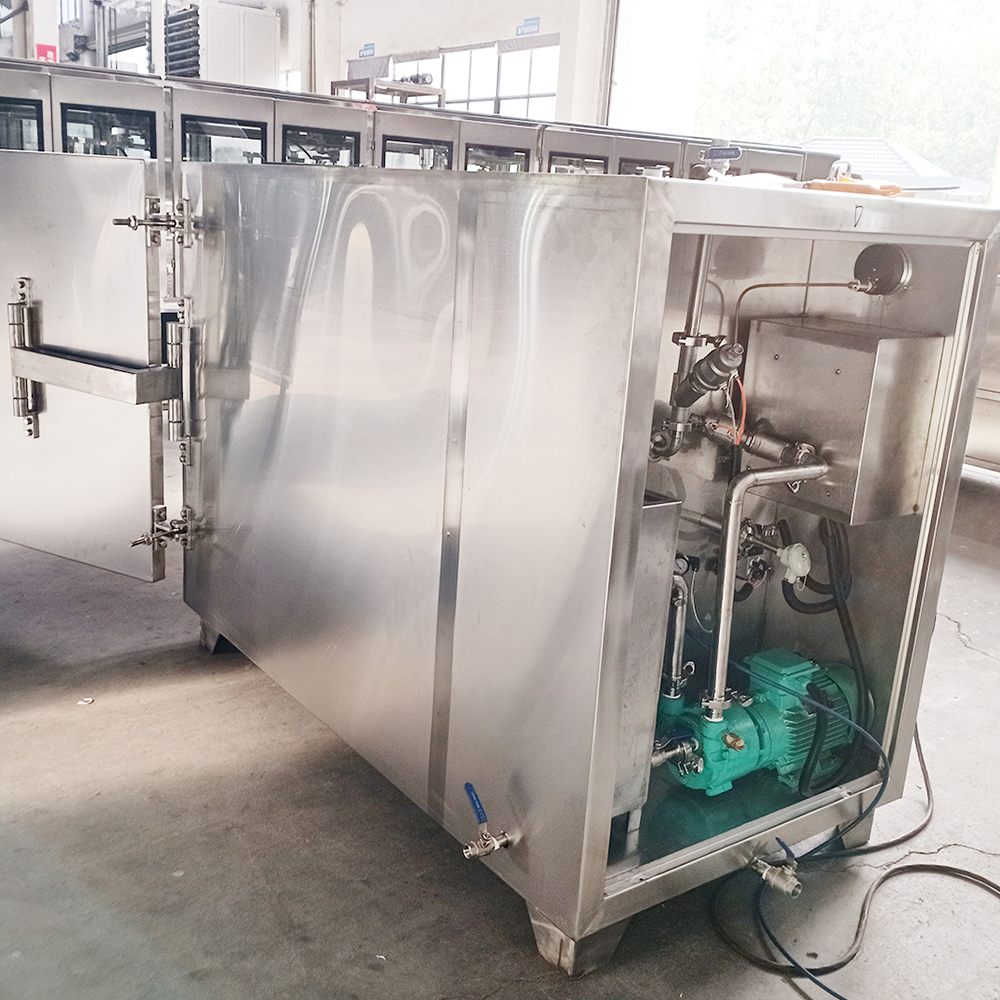

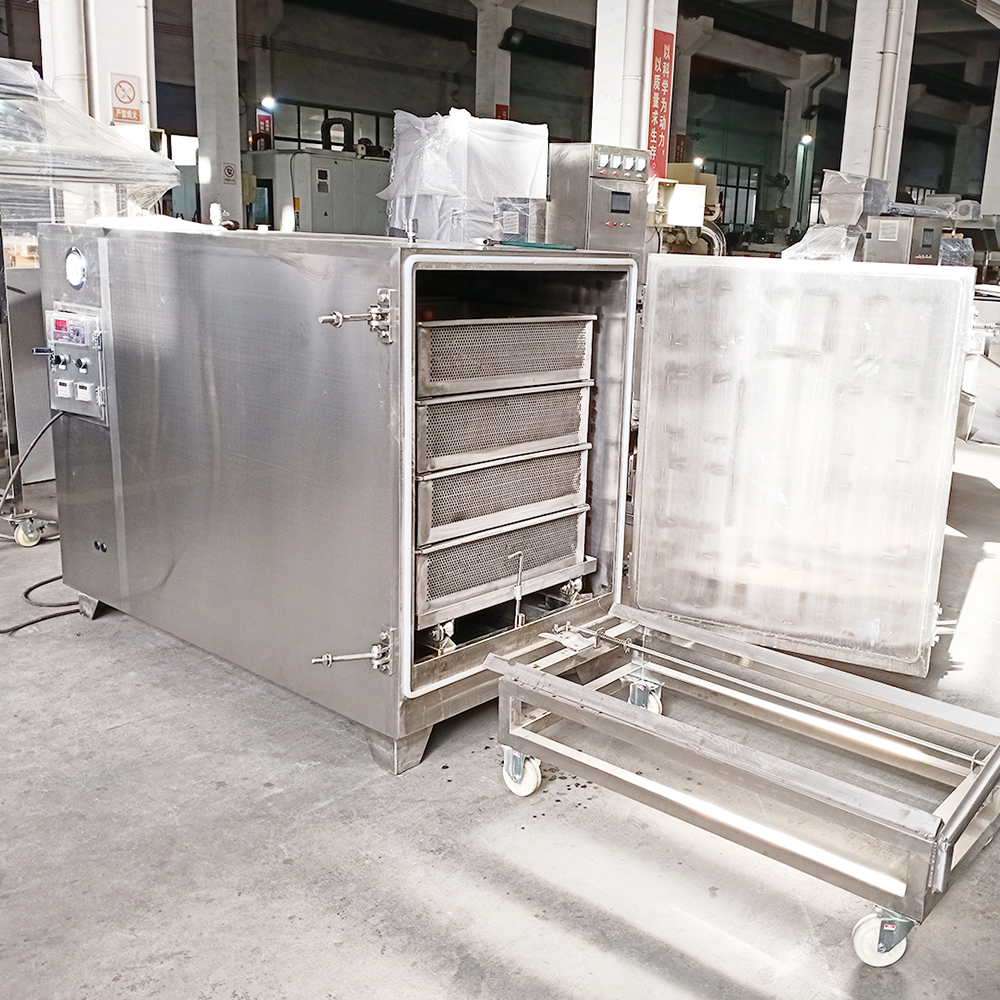

Product display
Related parameters
| Model | RY-500 | Power(kw) | 1.5 |
| Colume of box(L) | 500 | Dimension(mm) | 1320*1000*1280 |
| Steam pressure(Mpa) | Normal | Weight(kg) | 550 |
| Time control range(min) | 0-99 |
Working principle
By artificially push the materials in the feedbox into the square body, manually close the door. Pump inner air into vacuum state, maintaining the vacuum degree in the oven, and keeping the high pressure steam in material softening time. Then release the steam, stop working, manually open the door. Temperature be controlled in 40 minutes to 1 hour by the temperature control instrument according to different materials. Control program automatically run without manual operation after setting up parameters. According to the gas’ characteristic of strong penetrability, the materials under high vacuum is bubbled into water vapor, water instantly filled with all the space, making materials in the case of low water content quickly and evenly soften.
