The bag-type packaging machine replaces traditional manual packaging, realizes the automation of enterprise product packaging production, improves enterprise production efficiency, and greatly reduces product costs.
Model: XG8-200C
Mechanical station: 8
Weight: 1100Kg
Voltage: 380V 3Phases 50HZ/60HZ
Power: 2KW
Compressed air consumption: 0.9m3 /min(self-provided)
Main applications
Applicable to block, flake, strip, and granular objects such as: almonds, candies, peanuts, coffee beans, wolfberry melon seeds, green beans, edamame beans, pistachios, rock sugar, seeds, nuts, candied fruit, quick-frozen food, etc.

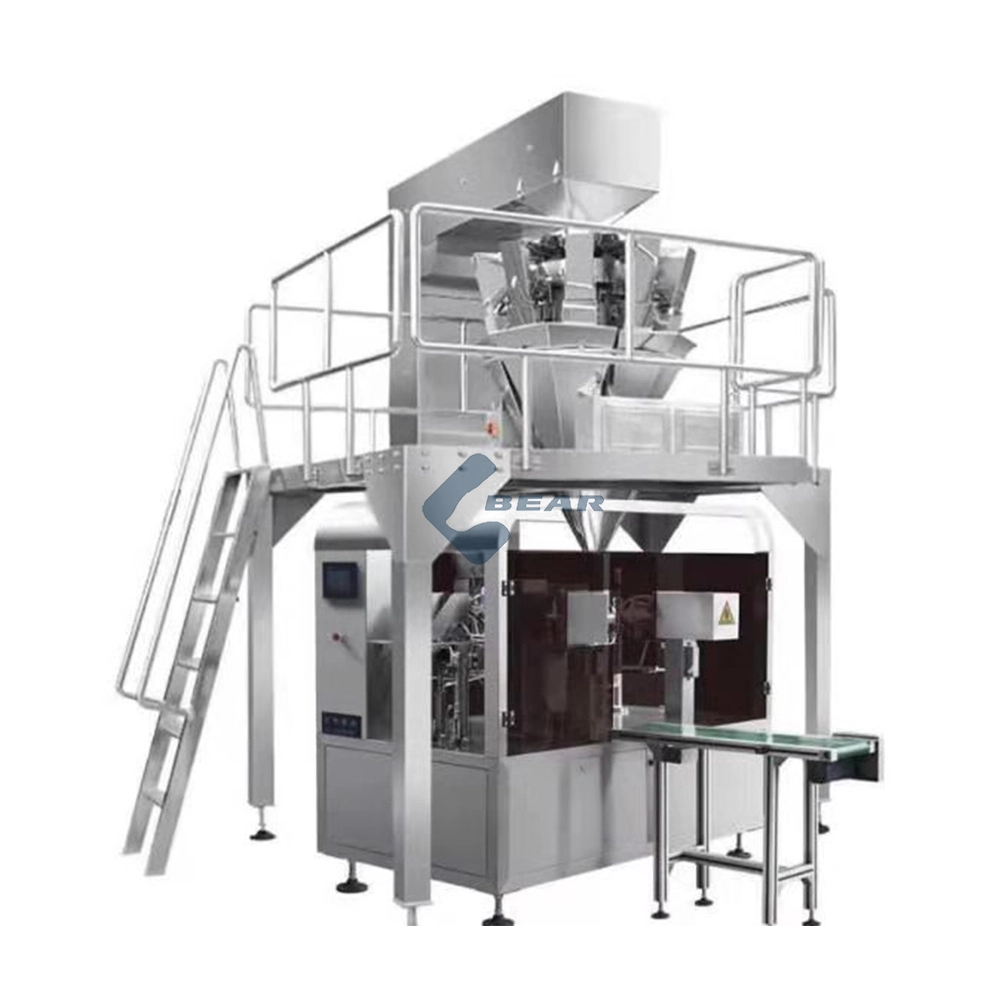

Product display
Related parameters
Model |
XG8-200C |
Mechanical station |
8 |
Bag type |
Composite bags such as stand-up pouches, four-side seal bags, three-side seal bags, paper bags, etc. |
Bag size |
W:80mm-200mm L:100-350mm |
Package weight |
20-2000g |
packing speed |
≤40bag/min(Its speed is determined by the material itself and the filling weight) |
Weight |
1100Kg |
Voltage |
380V 3Phases 50HZ/60HZ |
Power |
2KW |
Compressed air consumption |
0.9m3 /min(self-provided) |
Main features
1. The bag-type packaging machine replaces traditional manual packaging, realizes the automation of enterprise product packaging production, improves enterprise production efficiency, and greatly reduces product costs.
2. The machine meets the hygienic standards of food processing machinery. The parts on the machine that are in contact with materials and packaging bags are all processed with materials that meet food hygiene requirements to ensure food hygiene and safety.
3. The machine has a wide range of packaging. According to different packaging materials, different filling devices can be selected to pack various solid materials, liquids, sauces, powders, granules and other materials.
4. It is applicable to a wide range of packaging bags, including prefabricated bags and paper bags made of multi-layer composite film, single-layer PE, PP, etc. The pattern of the finished packaging bag is perfect, the sealing quality is good, and the grade is high.
5. The electrical control system adopts advanced PLC with color POD (touch screen), friendly man-machine interface and easy operation.
6. The main motor is controlled by frequency conversion and speed regulation. During production, the frequency can be set freely within a certain range on the color touch screen according to actual needs.
7. The machine is equipped with an automatic detection device as standard, which can detect air pressure, temperature controller failure, bag loading on the machine, and whether the bag opening is opened. It can judge the machine status, control whether the machine is coded, whether the filling device is filling, and heat Whether the sealing device is sealed, so as to avoid waste of packaging materials and raw materials, and greatly save costs.
8. Intelligent adjustment of machine clamp
