Professionally provide food processing equipment and intelligent assembly line engineering

Quality BEAR Brand Meat Dryer Machine 1
Quality BEAR Brand Meat Dryer Machine 1

Quality BEAR Brand Meat Dryer Machine

Inquiry
Send your inquiry

Product details of the meat dryer machine


Product Description

BEAR meat dryer machine is made of materials that are all meet the food grade standard. The raw materials sourced are BPA-free and will not release harmful substances under high temperature. The product will not put the dehydrated food in a dangerous situation. No chemical substances or gas will be released and get into the food during the drying process. This product is able to handle acidic foodstuffs without any worry of releasing harmful substances. For example, it can dry sliced lemon, pineapple, and orange.

Main applications

Polymer resin particles dryer is specially designed for various paste, slurry, powder, fiber, granule and other materials, involving the pharmaceutical industry, food industry, chemical industry, ceramic industry and cosmetics industry, and can dry active pharmaceutical ingredients (API) , coffee beans, herbal extracts and other high heat-sensitive materials, the heating medium can have a variety of choices, such as: steam, thermal oil, hot water, etc.

Polymer resin particles drying machine
drying eqiupment

Working principle

Polymer resin particles dryer is a device that continuously discharges the water or solvent with a reduced boiling point under the vacuum state through the vacuum pipeline to achieve the purpose of drying the material. Inside the dryer shell, the rake teeth are driven by the transmission shaft. The rake teeth end and the axis are designed to have a certain angle. The main shaft rotates in the forward and reverse directions to move the material along the axial direction to facilitate drying and discharging. This machine is especially suitable for drying heat-sensitive materials, materials that are easily oxidized at high temperature, or materials that are easy to harden during drying, and materials that need to be recovered from the steam discharged during drying. After drying, the material is in powder form, so it is more suitable for the finished product in powder form. After drying, it can be packaged directly without crushing. The moisture content of the feed material of the rake vacuum dryer can reach 90%. The material to be dried is paste, slurry, granular, fibrous or powder. The moisture or solvent content of the dried material can be as low as 1%, or even 0.1%.

The operation of the rake dryer is less labor-intensive than the usual box-type dryer, the operating conditions are good, and the management is more convenient. The uniformity of heating of the material can avoid overheating of the material, and the moisture or solvent is easy to escape, and the product with low temperature can be obtained. The machine can adopt the method of simultaneous heating of the interlayer and rake teeth, which has a larger heat transfer area and high thermal efficiency, and nitrogen can be fed into the barrel to obtain higher drying efficiency.

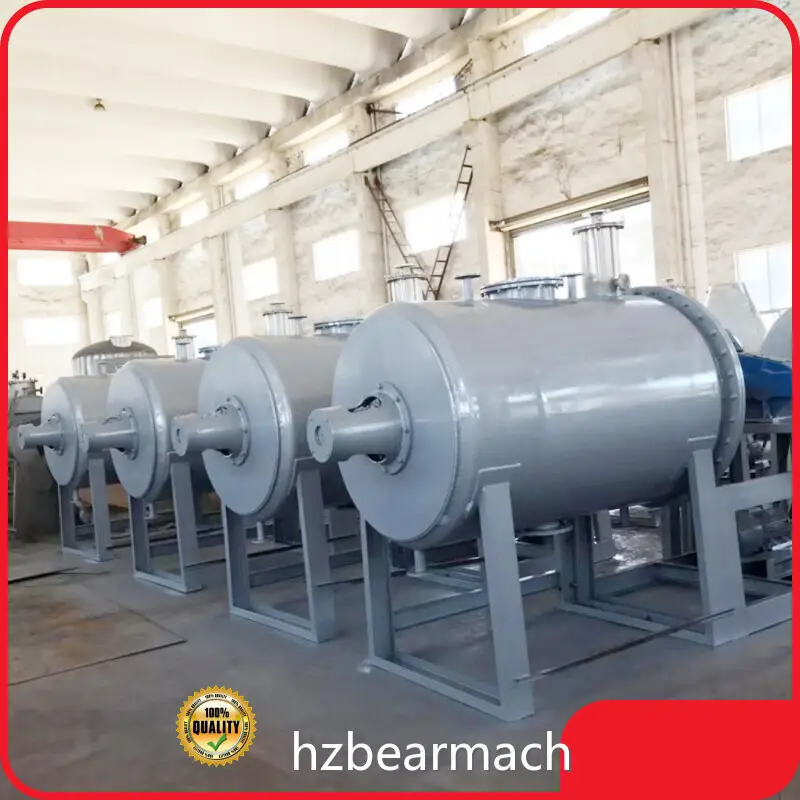

Product display

Polymer resin particles dryer machine
Polymer resin particles dryer machine
Polymer resin particles drying equipment
Polymer resin particles drying equipment
Polymer resin particles dryer equipment
Polymer resin particles dryer equipment

Polymer resin particles

Related parameters

Model
ZPG-500
ZPG-750
ZPG-1000
ZPG-1500
ZPG-2000
ZPG-3000
ZPG-8000
Working volume(L)
300
450
600
900
1200
1800
4500
Heating area (m2)
6
7.6
9.3
12.3
14.6
15.3
18.08
Stirring speed (rpm)
6-30 stepless speed adjustment
Power(kw)
4
5.5
5.5
7.5
11
15
22
Mezzanine design pressure (hot water)(Mpa)
≤0.3
Vacuum degree inside the cylinder(Mpa)
-0.09-0.096
Vacuum rake dryer machine

Features

 During the drying process of the vacuum rake dryer, the rake teeth rotate continuously in positive and negative directions, which has strong applicability, and the dried materials are stirred evenly and dried quickly. Because it uses jacket heating and vacuum exhaust, it is suitable for almost all materials of different properties and states, especially for explosive and oxidizable materials; the products it produces are of high quality, easy to operate, and can recover volatile gases. The pollution to the environment is reduced, and the heat source consumption is relatively small.

Hot Tags: Polymer resin particles dryer, Vacuum rake dryer, pharmaceutical ingredients dryer , coffee beans dryer, herbal extracts dryer, high heat-sensitive materials dryer
