The working efficiency of the single-cone ribbon vacuum dryer has been significantly improved. It can not only be used for drying heat-sensitive materials but also for mixing, reacting, and drying powders and powders, as well as powders and liquids. It thoroughly changes the traditional drawbacks of large volume, high energy consumption, long working hours, low efficiency, high noise, easy caking, multiple leakage points, and inconvenient cleaning and maintenance in drying equipment. It can be widely promoted in industries such as pharmaceuticals, chemicals, pesticides, and food, and can achieve fully enclosed operation throughout the entire process.
Model:DLH-1
Volume(L):1
Mixing amount per time Kg (specific gravity is 1):700
Mixing time:4-6 min (special materials are actually determined by the user)
Power(kw):7.5
Material particle size (mesh):10-1000 mesh (except liquid, tablet, granule and paste)
Weight (kg):750
Main applications
The working efficiency of the single cone spiral belt vacuum dryer has been greatly improved. It can not only be used for drying heat-sensitive materials, but also can be used for the mixing, reaction and drying of powders, powders and liquids. It can be used in medicine, chemicals, pesticides, etc. , food and other industries are generally promoted.
Working principle
The conical spiral belt vacuum dryer uses a spiral belt to rotate and lift the materials, and simultaneously introduces heat transfer media (such as hot water, thermal oil, steam, etc.) into the conical jacket and hollow spiral belt, so that the heated materials can flow from all sides It lifts and falls from the middle, turns over in a rapid and continuous cycle, and takes away the water vapor in time through vacuuming in the cylinder, so that the materials can be dried and mixed in a short time.
Compared with traditional vertical mixers, there is no transmission mechanism in the cylinder, which fundamentally causes material contamination due to lubricating oil leakage. The operation is reliable and stable, and is especially suitable for mixing powders and granules with high hygienic requirements; it is also suitable for viscous It is used to stir and mix fluid, thick, and wet materials as the main materials; compared with other horizontal dryers, it has convenient discharging, can completely discharge 100% of the materials, and is easy to operate and maintain. Its drying efficiency is 3-5 times that of the "double cone rotary vacuum dryer" of the same specification.

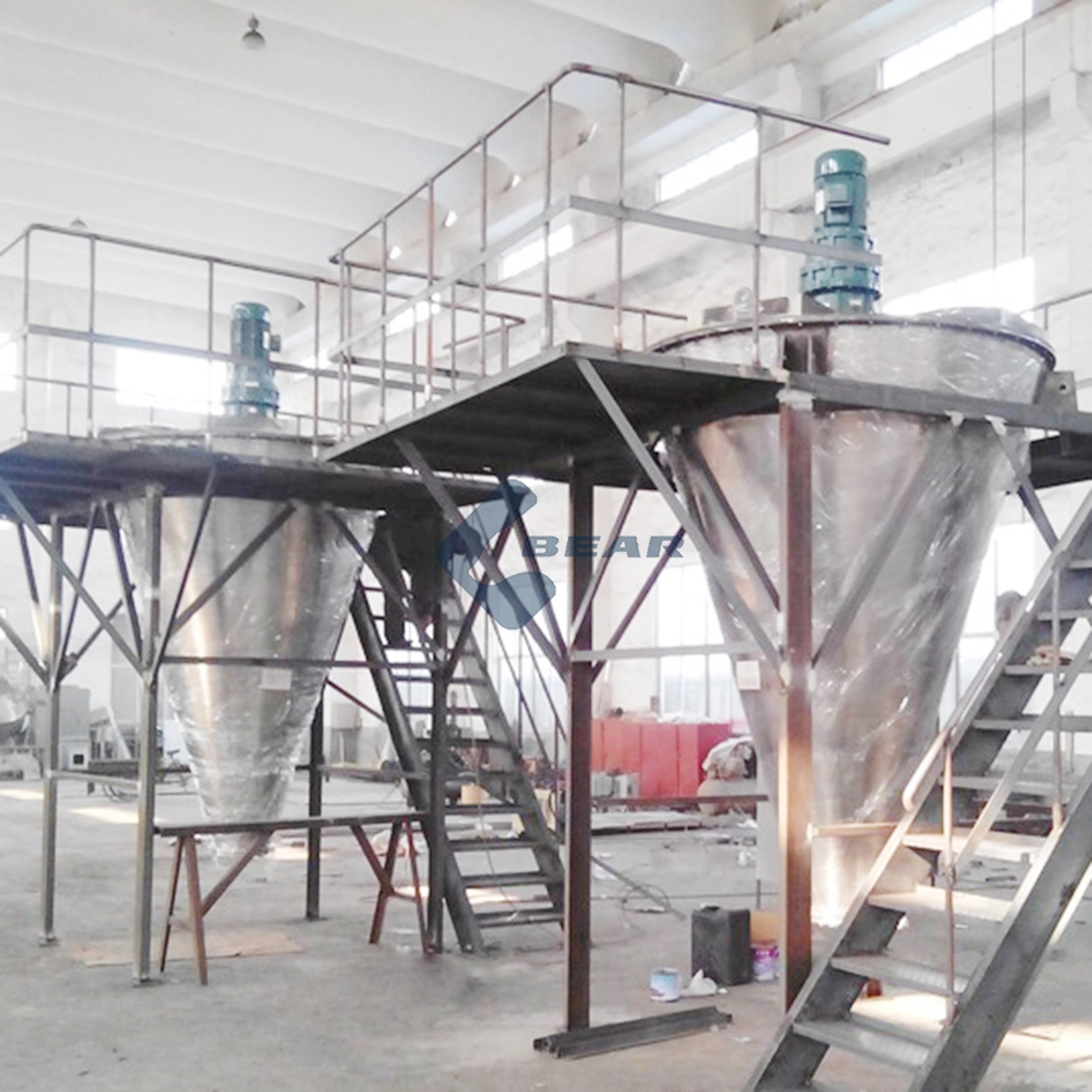

Product display
Dairy
Related parameters
Model
|
DLH-0.02
|
DLH-0.05
|
DLH-0.15
|
DLH-0.5
|
DLH-1
|
DLH-1.5
|
DLH-2.5
|
Volume(L)
|
0.02
|
0.05
|
0.15
|
0.5
|
1
|
1.5
|
2.5
|
Mixing amount per time Kg (specific gravity is 1)
|
15
|
30
|
100
|
350
|
700
|
1050
|
1700
|
Mixing time
|
4-6 min (special materials are actually determined by the user)
|
||||||
Power(kw)
|
0.75
|
1.5
|
3
|
5.5
|
7.5
|
7.5
|
11
|
Material particle size (mesh)
|
10-1000 mesh (except liquid, tablet, granule and paste)
|
||||||
Weight (kg)
|
50
|
100
|
170
|
360
|
750
|
900
|
1200
|
Main features
◆This machine uses a reducer to directly drive the mixer to rotate.
◆Wide range of application, can be used for mixing powder with powder, powder with liquid, and can also be used as reaction equipment and drying equipment.
◆A spray device can be added according to user requirements to spray an appropriate amount of liquid into the material.
◆The rotation speed can be adjusted according to process needs. When the rotation speed is low, the drying effect takes over; when the rotation speed is high, the drying effect takes precedence. Its mixing effect occupies the most important position, so by choosing this equipment, two types of equipment that were originally required to achieve the purpose can now be combined into one, saving costs.
