Product details of the Dye Powder Spray Dryer
Product Description
The consistent temperature and air circulation system developed in BEAR Dye Powder Spray Dryer has been studied by the development team for a long time. This system aims to guarantee even dehydrating process. The food dehydrated by this product contains as much nutrition as it is before dehydration. The overall temperature is appropriate for most food especially for food that contains heat-sensitive nutrients. With the adjustable thermostat, it can dehydrate the food especially the meat at a high temperature to guard against pathogens.
Main application
Calcium carbonate dryer has been successfully applied in the fields of food, chemical, petrochemical, dyes, industrial sludge and so on. For example: calcium sulfate dihydrate (Ca2SO4 • 2H2O) is combusted into calcium sulfate hemihydrate (Ca2SO4 • 1 / 22H2O); Sodium bicarbonate (NaHCO3) is calcined into sodium carbonate (Na2HCO3). It has been successfully used in the industries of fertilizer and modified starch.

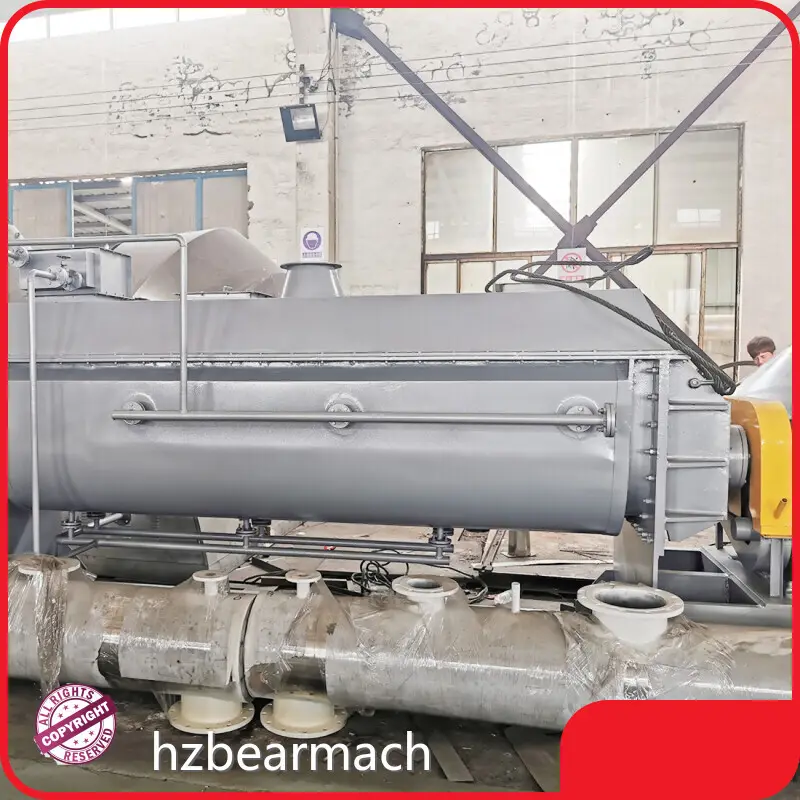

Product display
Calcium carbonate
Related parameters
Model |
KJG-3 |
KJG-13 |
KJG-18 |
KJG-29 |
KJG-41 |
KJG-52 |
KJG-68 |
KJG-81 |
KJG-110 |
Heat transfer area(m2) |
3 |
13 |
18 |
29 |
41 |
52 |
68 |
81 |
110 |
Effective volume(m3) |
0.06 |
0.59 |
1.09 |
1.85 |
2.8 |
3.96 |
5.21 |
6.43 |
9.46 |
Range of rotation(rmp) |
15-30 |
10-25 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
5-15 |
5-10 |
Power(kw) |
2.2 |
5.5 |
7.5 |
11 |
15 |
30 |
45 |
55 |
95 |
Dimension(mm) |
736*2972*762 |
1066*5486*1092 |
1320*5918*1270 |
1474*6808*1524 |
1676*7570*1778 |
1854*8306*2032 |
2134*9296*2362 |
2186*9678*2464 |
2668*9880*2668 |
Inner cavity size(mm) |
306*1956*380 |
762*3048*534 |
940*3328*610 |
1118*4114*762 |
1296*4724*915 |
1476*5258*1066 |
1652*5842*1220 |
1828*6020*1220 |
2210*6122*1220 |
Mian Features
1. Blade dryer is low energy-consumption;2. System of hollow blade dryer is low cost;3. It can handle wide ranges of materials;Using different heat medium, it can not only deal with heat-sensitive materials, but also materials requiring high temperature treatment. Common media are: steam, heat transfer oil, hot water and cooling water.4. It supports both continuous operation and intermittent operation; it can be applied in many fields;5. Environmental friendly;6. Low operating costs: little abrasion, low maintenance cost.7. Stable operation: due to the special compression - expansion stirring of wedge-shaped blade, material particles have sufficient contact with the heat transfer surface. In the axial zone, materials have low temperature, low humidity and small mixing gradient so as to ensure the stability of the process.
Hot Tags: Calcium carbonate dryer, Hollow paddle dryer,Sludge dryer, Petrochemical dryer, Dyes dryer,Waste residue dryer, Paste dryer
