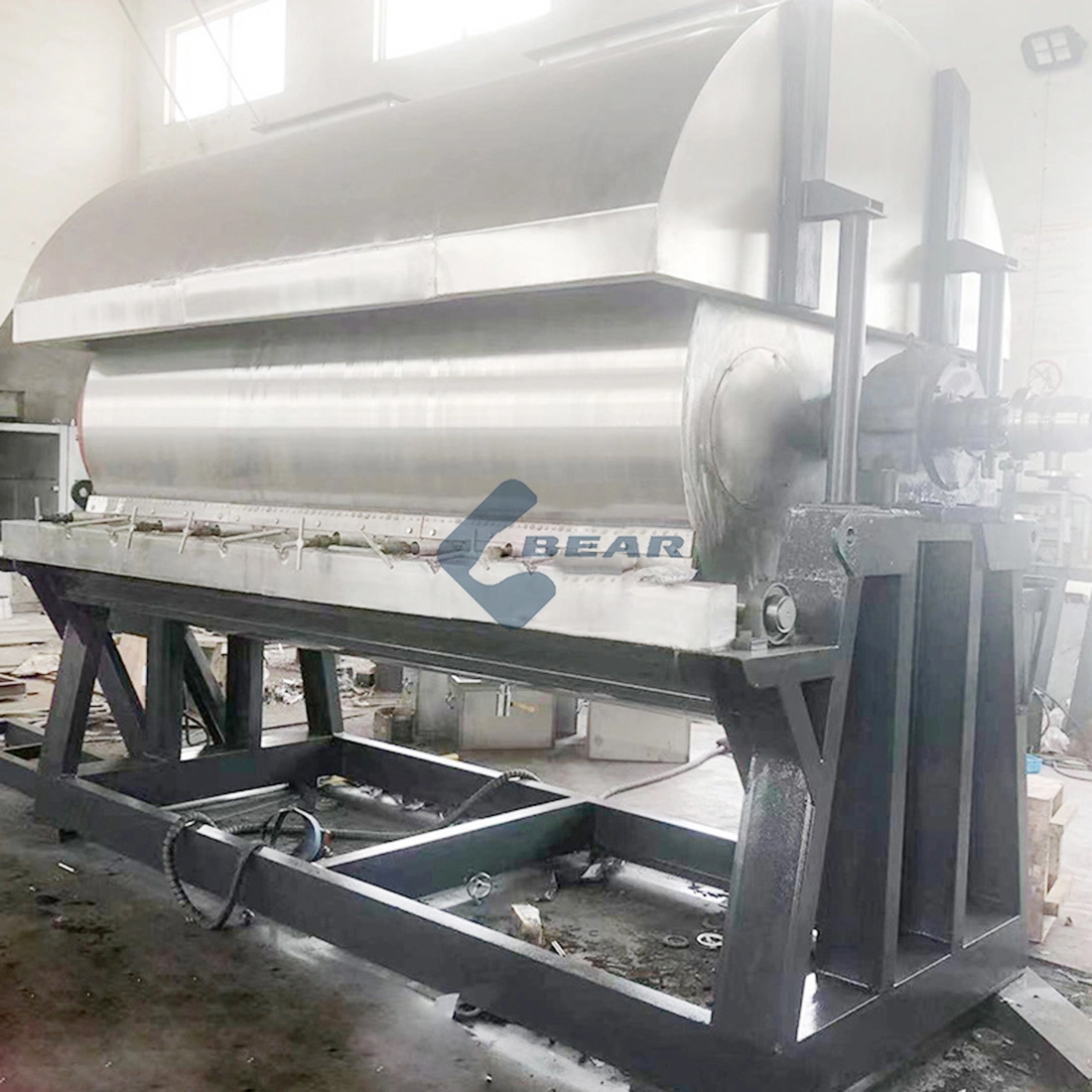

Amino acid dryer 1
Amino acid dryer 1

Amino acid dryer

Amino acid dryer is widely used to dry rice flour, oatmeal, α-starch, potato flour and other food products into flakes, powders and granules.



Model: HG-600

Roller size(mm): HG-600

Effective heating area(m²): Φ600×800

Drying capacity(kg/h): 1.12 40-70

Steam consumption(kg/h): 100-175

    oops...!

    no product data.

    Go to homepage

    Main applications

    Amino acid dryer is widely used in the drying of liquid or viscous materials in chemical, pharmaceutical, food, metallurgical and other industries.

    Applications include:

    1. Chemical industry: used to dry various chemical raw materials, such as amino acids, organic acids, organic esters, etc.

    2. Pharmaceutical industry: used to dry various pharmaceutical raw materials, such as antibiotics, vitamins, hormones, etc.

    3. Food industry: used to dry various food raw materials, such as starch, protein, yogurt powder, etc.

    4. Metallurgical industry: used to dry various metal powders, ores, iron powder, etc.

    Amino acid drying machine
    Amino acid dryer

    Working principle

    Amino acid dryer is a continuous operation equipment that dries the liquid-phase material or strip-shaped material attached to the outer wall of the cylinder by means of heat conduction through a rotating cylinder.

    The material liquid to be dried flows into the material receiving trough of the drum dryer from the elevated tank. The drying drum is driven by the transmission device, and the material is formed into a material film on the wall of the drum by the film distribution device. The cylinder is continuously heated, and the moisture in the material film is vaporized by the heat transfer from the cylinder wall, and then the material is scraped off by a scraper, and conveyed to the storage tank by a screw for packaging. It has high thermal efficiency and can be operated continuously, so it is widely used in drying liquid materials or strip materials, and is more suitable for paste and viscous materials.

    Single drum dryer: used for drying materials in the form of solution or slurry or suspension. The method of cloth membrane is usually immersion or spraying.

    Double cylinder dryer: The same set of reduction transmission device, through the meshing of a pair of gears with the same modulus and number of teeth, makes two sets of drums with the same diameter rotate relative to each other. According to the position of the film cloth, it is divided into two types: the opposite roll type and the same groove type.

    Product display

    Amino acid dryer machine
    Amino acid dryer machine
    Amino acid drying equipment
    Amino acid drying equipment
    Amino acid dryer equipment
    Amino acid dryer equipment

    Amino acid dryer

    Related parameters

    Model

    Roller size(mm)

    Effective heating area(m2)

    Drying capacity(kg/h)

    Steam consumption(kg/h)

    Power(kw)

    Dimensions(mm)

    Weight(kg)

    HG-600

    Φ600×800

    1.12

    40-70

    100-175

    1.1

    1700×800×1500

    850

    HG-700

    Φ700×1000

    1.65

    60-90

    150-225

    2.05

    2100×1000×1800

    1210

    HG-800

    Φ800×1200

    2.26

    90-130

    225-325

    3.75

    2500×1100×1980

    1700

    HG-1000

    Φ1000×1400

    3.3

    130-190

    325-475

    4.75

    2700×1300×2250

    2100

    HG-1200

    Φ1200×1500

    4.24

    160-250

    400-625

    4.75

    2800×1500×2450

    2650

    HG-1400

    Φ1400×1600

    5.28

    210-310

    525-775

    6.25

    3150×1700×2800

    3220

    HG-1600

    Φ1600×1800

    6.79

    270-400

    675-1000

    6.25

    3350×1900×3150

    4350

    HG-1800

    Φ1800×2000

    8.48

    330-500

    825-1250

    8.6

    3600×2050×3500

    5100

    HG-1800A

    Φ1800×2000

    10.6

    420-630

    1050-1575

    8.6

    4100×2050×3500

    6150

    6 (11)

    Features

     High thermal efficiency: Most of the heat supplied in the cylinder is used for moisture gasification, and the thermal efficiency can be as high as 70~80%.

    High drying rate: The heat transfer and mass transfer process of the wet material film on the wall of the cylinder is in the same direction from the inside to the outside, and the temperature gradient is large, so that the surface of the material film maintains a high evaporation intensity, generally up to 30kg/㎡h .

    The drying quality of the product is stable: the heating method of the drum is easy to control, the temperature inside the drum and the heat transfer rate of the partition wall can be kept relatively stable, so that the material film can be dried under a stable heat transfer state, and the quality of the product can be guaranteed.

    Wide range of application: The liquid phase material adopts drum drying, which has fluidity, adhesion and stability to heat. The form of the material can be solution, suspension, emulsion, sol, etc.

    The production capacity of a single machine is limited by the size of the cylinder: the drying area of a general drum dryer should not be too large. The drying area of a single cylinder rarely exceeds 12㎡, and its processing capacity is generally 50-1000kg/h.
