Product details of the corn dryer machine
Quick Detail
The components and parts of BEAR corn dryer machine are guaranteed to meet the food grade standard by the suppliers. These suppliers have been working with us for years and they attach much attention to quality and food safety. This product is harmless to the food. The heat source and air circulation process will not generate any harmful substances which may affect the nutrition and original flavor of the food and bring potential risk. corn dryer machine can be applied to different fields. The product is loved by most sports lovers. The food dehydrated by it enables those people to supply nourishment when they are doing exercise or as a snack when they are going out for camping.
Product Description
corn dryer machine is exquisite in details.
Main application
Sulfur concentrate powder dryer has been successfully applied in the fields of food, chemical, petrochemical, dyes, industrial sludge and so on. For example: calcium sulfate dihydrate (Ca2SO4 • 2H2O) is combusted into calcium sulfate hemihydrate (Ca2SO4 • 1 / 22H2O); Sodium bicarbonate (NaHCO3) is calcined into sodium carbonate (Na2HCO3). It has been successfully used in the industries of fertilizer and modified starch.
Product display

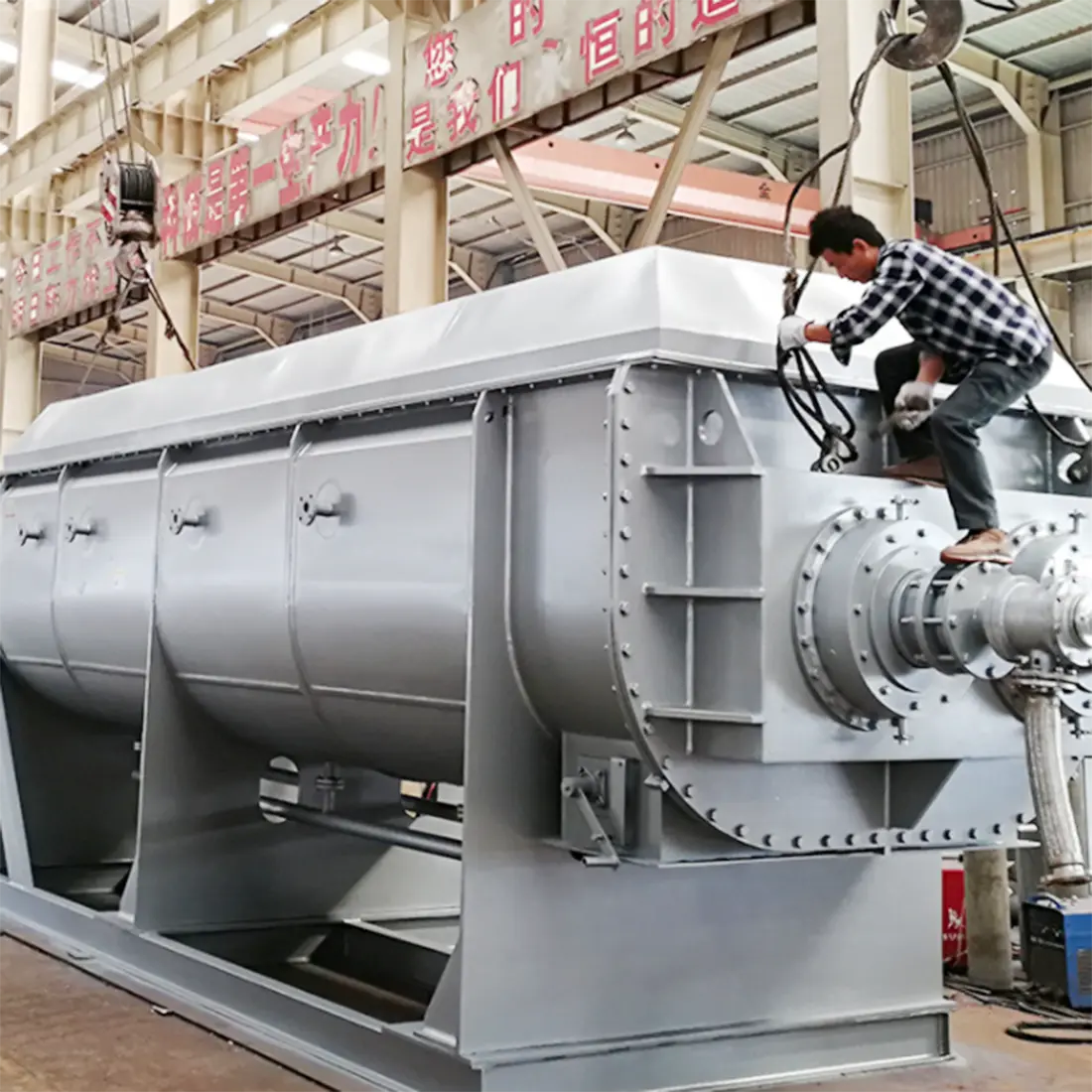

Sulfur concentrate powder
Related parameters
Model |
KJG-3 |
KJG-13 |
KJG-18 |
KJG-29 |
KJG-41 |
KJG-52 |
KJG-68 |
KJG-81 |
KJG-110 |
Heat transfer area(m2) |
3 |
13 |
18 |
29 |
41 |
52 |
68 |
81 |
110 |
Effective volume(m3) |
0.06 |
0.59 |
1.09 |
1.85 |
2.8 |
3.96 |
5.21 |
6.43 |
9.46 |
Range of rotation(rmp) |
15-30 |
10-25 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
5-15 |
5-10 |
Power(kw) |
2.2 |
5.5 |
7.5 |
11 |
15 |
30 |
45 |
55 |
95 |
Dimension(mm) |
736*2972*762 |
1066*5486*1092 |
1320*5918*1270 |
1474*6808*1524 |
1676*7570*1778 |
1854*8306*2032 |
2134*9296*2362 |
2186*9678*2464 |
2668*9880*2668 |
Inner cavity size(mm) |
306*1956*380 |
762*3048*534 |
940*3328*610 |
1118*4114*762 |
1296*4724*915 |
1476*5258*1066 |
1652*5842*1220 |
1828*6020*1220 |
2210*6122*1220 |
Mian Features
1. Blade dryer is low energy-consumption;2. System of hollow blade dryer is low cost;3. It can handle wide ranges of materials;Using different heat medium, it can not only deal with heat-sensitive materials, but also materials requiring high temperature treatment. Common media are: steam, heat transfer oil, hot water and cooling water.4. It supports both continuous operation and intermittent operation; it can be applied in many fields;5. Environmental friendly;6. Low operating costs: little abrasion, low maintenance cost.7. Stable operation: due to the special compression - expansion stirring of wedge-shaped blade, material particles have sufficient contact with the heat transfer surface. In the axial zone, materials have low temperature, low humidity and small mixing gradient so as to ensure the stability of the process.
Hot Tags: Sulfur concentrate powder dryer,Hollow paddle dryer,Sludge dryer, Petrochemical dryer, Dyes dryer,Waste residue dryer, Paste dryer
