BEAR Rice Dryer Machine Industry
Product details of the rice dryer machine
Product Information
The production of BEAR rice dryer machine is rigorously undertaken by the factory itself, inspected by the third-party authorities. Especially the inner parts, such as food trays, are required to pass the tests including chemical release testing and high-temperature withstanding capacity. This product features eco-friendless and sustainability. Not any comburent or emission is released during its dehydrating process because it does not consume any fuel except electricity energy. The product, being able to dehydrate different kinds of food, helps save much money on buying snacks. People can make the delicious and nutritious dried eatables with little cost.
Main application
Hollow blade dryer has been successfully applied in the fields of food, chemical, petrochemical, dyes, industrial sludge and so on. For example: calcium sulfate dihydrate (Ca2SO4 • 2H2O) is combusted into calcium sulfate hemihydrate (Ca2SO4 • 1 / 22H2O); Sodium bicarbonate (NaHCO3) is calcined into sodium carbonate (Na2HCO3). It has been successfully used in the industries of fertilizer and modified starch.

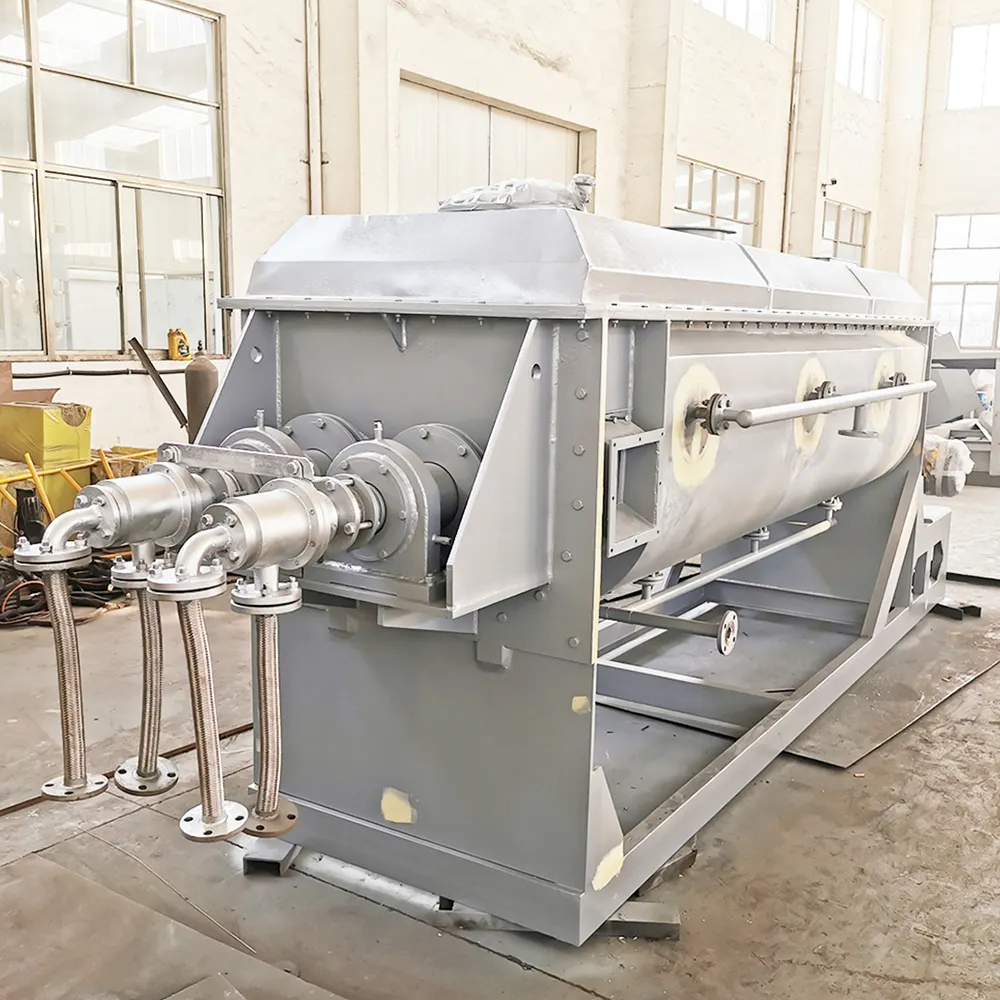

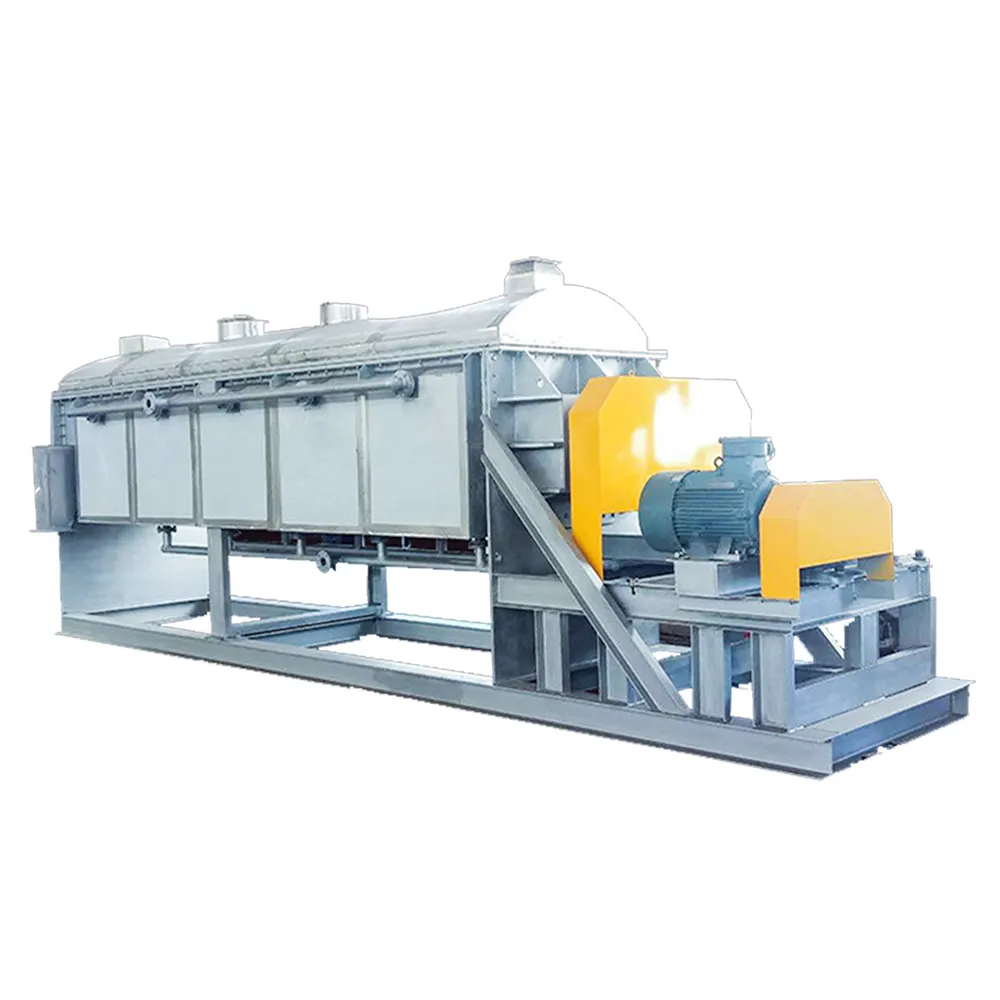

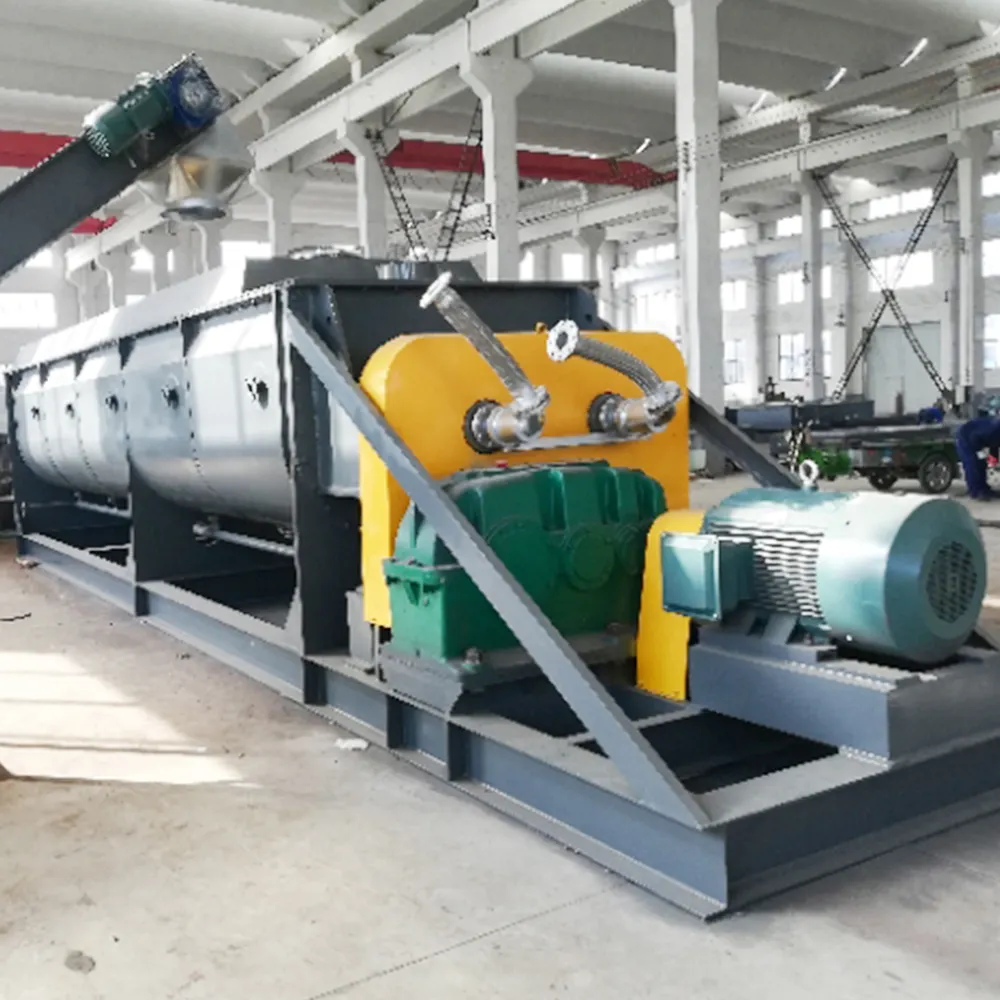

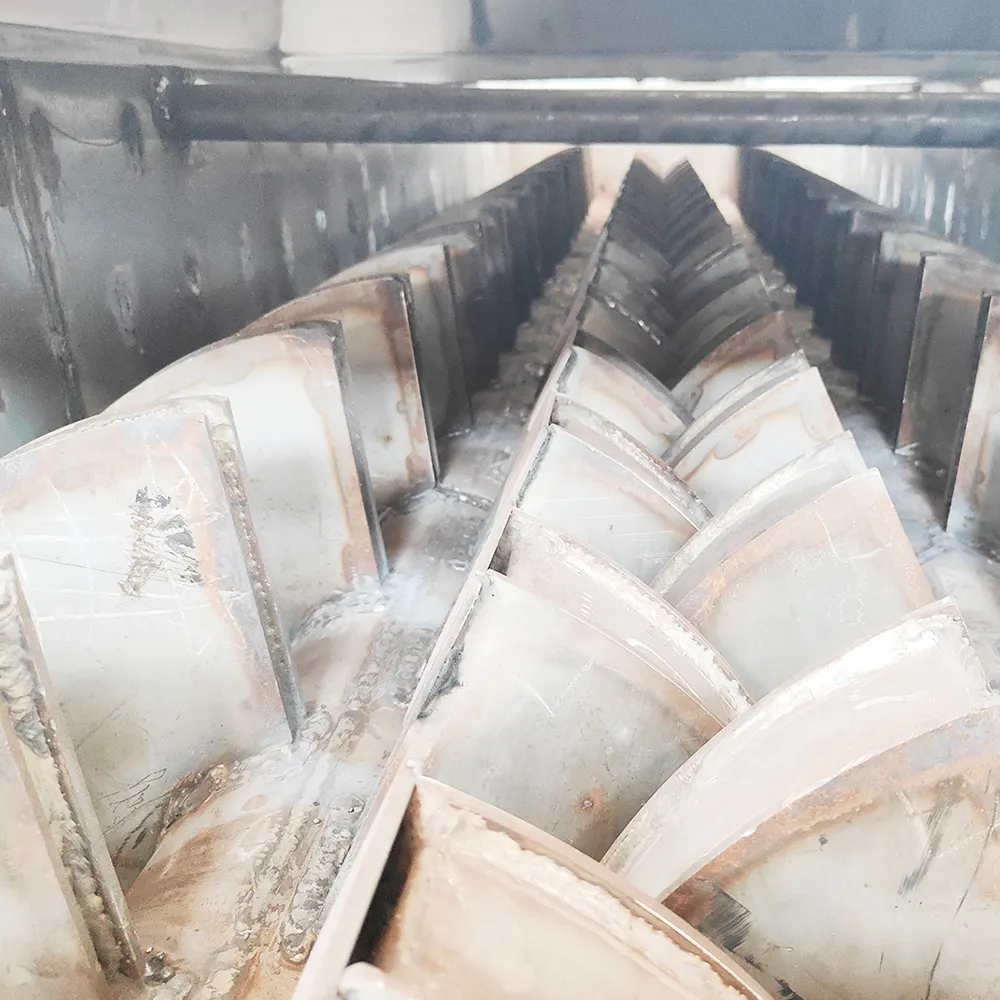

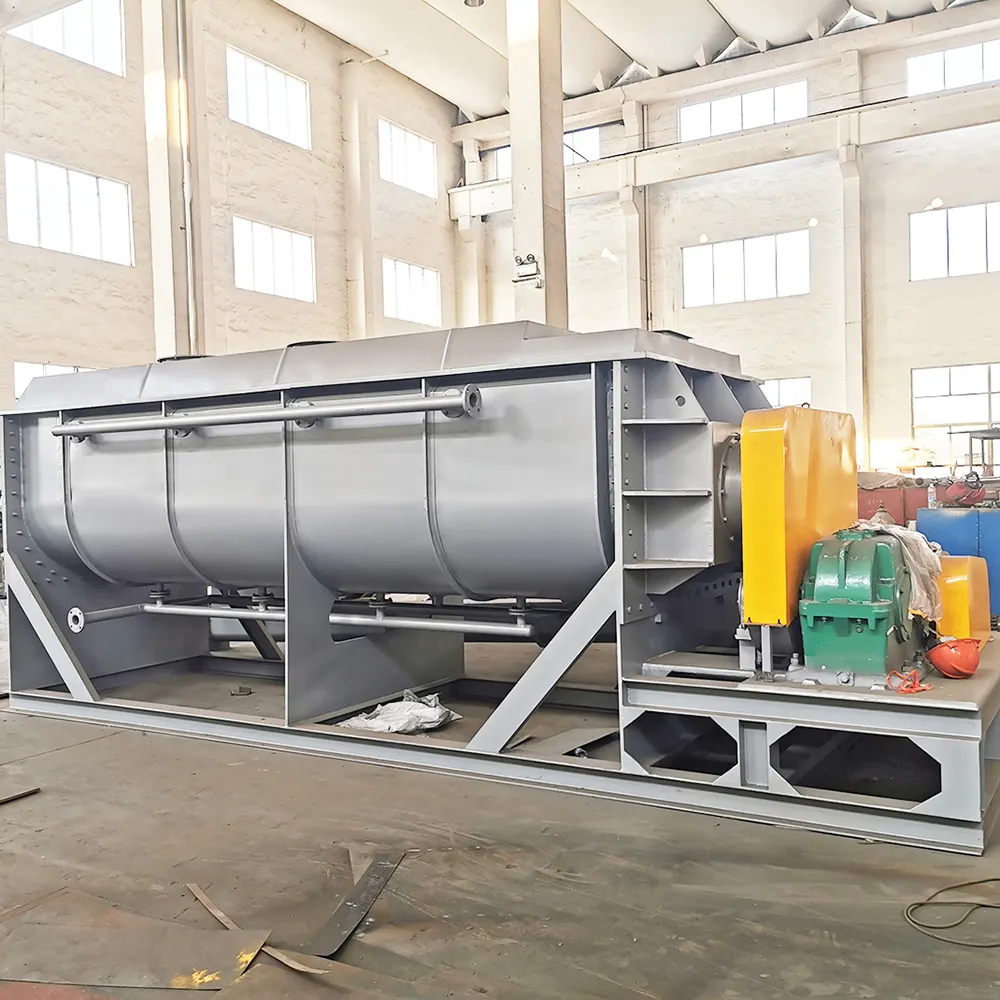

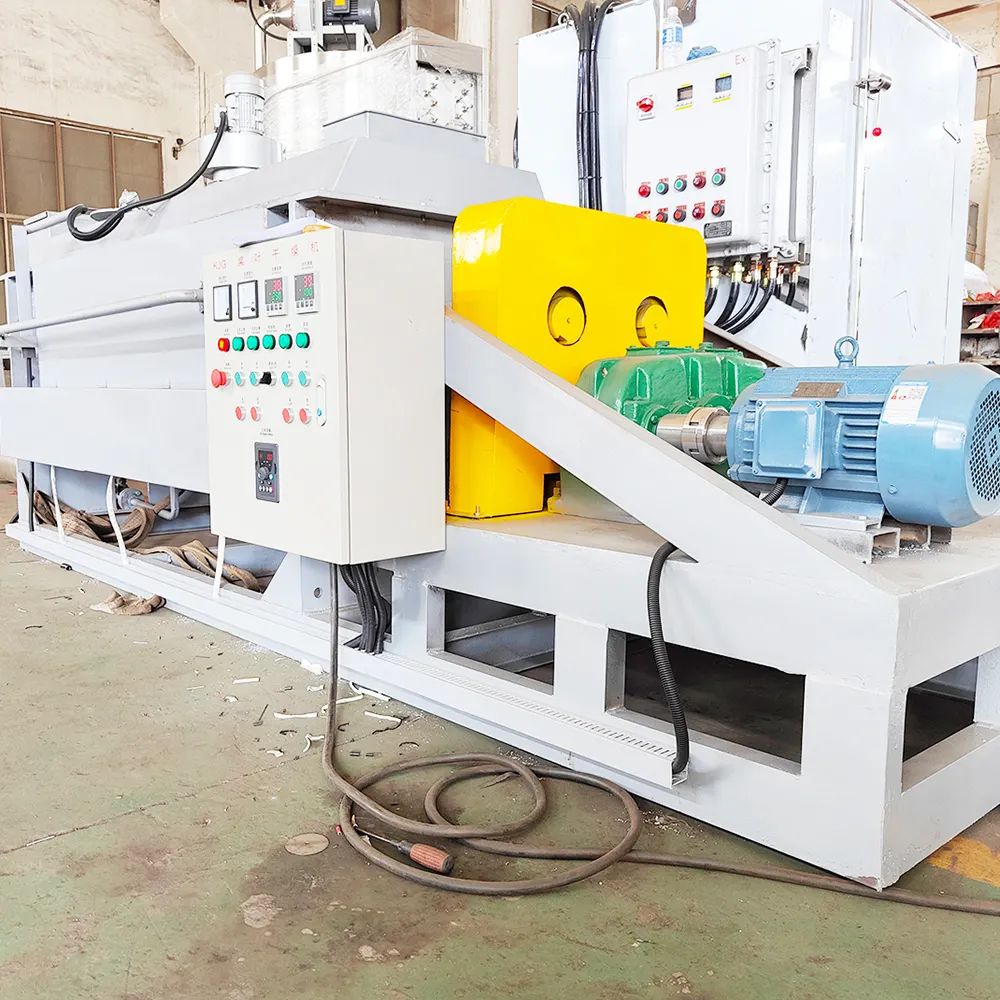

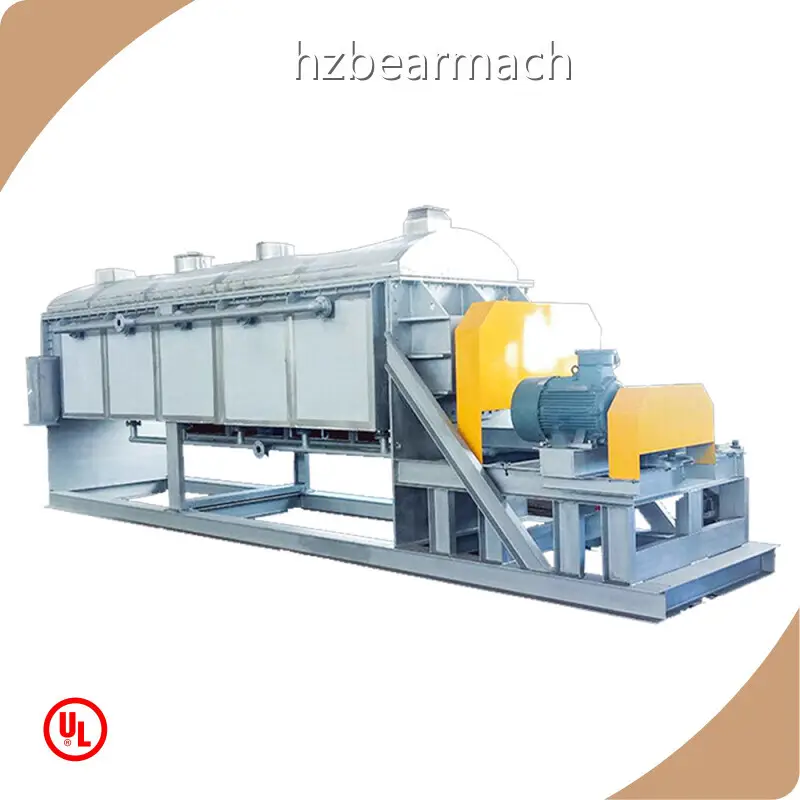

Product display
Related parameters
|
Model |
KJG-3 |
KJG-13 |
KJG-18 |
KJG-29 |
KJG-41 |
KJG-52 |
KJG-68 |
KJG-81 |
KJG-110 |
|
Heat transfer area(m2) |
3 |
13 |
18 |
29 |
41 |
52 |
68 |
81 |
110 |
|
Effective volume(m3) |
0.06 |
0.59 |
1.09 |
1.85 |
2.8 |
3.96 |
5.21 |
6.43 |
9.46 |
|
Range of rotation(rmp) |
15-30 |
10-25 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
5-15 |
5-10 |
|
Power(kw) |
2.2 |
5.5 |
7.5 |
11 |
15 |
30 |
45 |
55 |
95 |
|
Dimension(mm) |
736*2972*762 |
1066*5486*1092 |
1320*5918*1270 |
1474*6808*1524 |
1676*7570*1778 |
1854*8306*2032 |
2134*9296*2362 |
2186*9678*2464 |
2668*9880*2668 |
|
Inner cavity size(mm) |
306*1956*380 |
762*3048*534 |
940*3328*610 |
1118*4114*762 |
1296*4724*915 |
1476*5258*1066 |
1652*5842*1220 |
1828*6020*1220 |
2210*6122*1220 |
Mian Features
1. Blade dryer is low energy-consumption;2. System of hollow blade dryer is low cost;3. It can handle wide ranges of materials;Using different heat medium, it can not only deal with heat-sensitive materials, but also materials requiring high temperature treatment. Common media are: steam, heat transfer oil, hot water and cooling water.4. It supports both continuous operation and intermittent operation; it can be applied in many fields;5. Environmental friendly;6. Low operating costs: little abrasion, low maintenance cost.7. Stable operation: due to the special compression - expansion stirring of wedge-shaped blade, material particles have sufficient contact with the heat transfer surface. In the axial zone, materials have low temperature, low humidity and small mixing gradient so as to ensure the stability of the process.
Hot Tags: Hollow Blade Dryer,Hollow paddle dryer,Sludge dryer, Petrochemical dryer, Dyes dryer,Waste residue dryer, Paste dryer
Company Advantage
• Good geographic location, excellent traffic conditions, and telecommunications make contribution to sustainable development.
• Our company provides comprehensive, high-level professional services such as consulting and technology in accordance with the actual needs of users.
• Since the establishment in our company has had a production history of years. Now, our production technology and experience are at the leading level in the industry.
• has a team formed by professional and technical personnel and high-quality management talents.
If you would like to purchase our textile products, leave your contact information. will send you relevant samples for free.
